9. Close the lever to lock the drive assembly into place (see letter "B" in

Removing a Hot-swap SAS/SATA Hard Disk Drive

To remove a hot-swap SAS/SATA hard disk drive, follow these steps:
1. Press in on the green latch at the front of the hard drive carrier.
2. Pull out on the black lever to slide the carrier out from the server system.
3. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive
from the carrier and store the drive in an anti-static bag.
4. Do one of the following:
— To install the replacement drive, see
— If you are not installing a drive, place the plastic retention device into the drive
Note: To maintain proper system cooling, all hard drive carriers must be installed in the server
system and populated with either a drive or a drive blank.
5. With the black lever held in the fully open position, slide the drive carrier into the
server system and push all the way until it clicks.
6. Close the lever to lock the drive assembly into place.
®
Intel Server System SR1625UR Service Guide
B

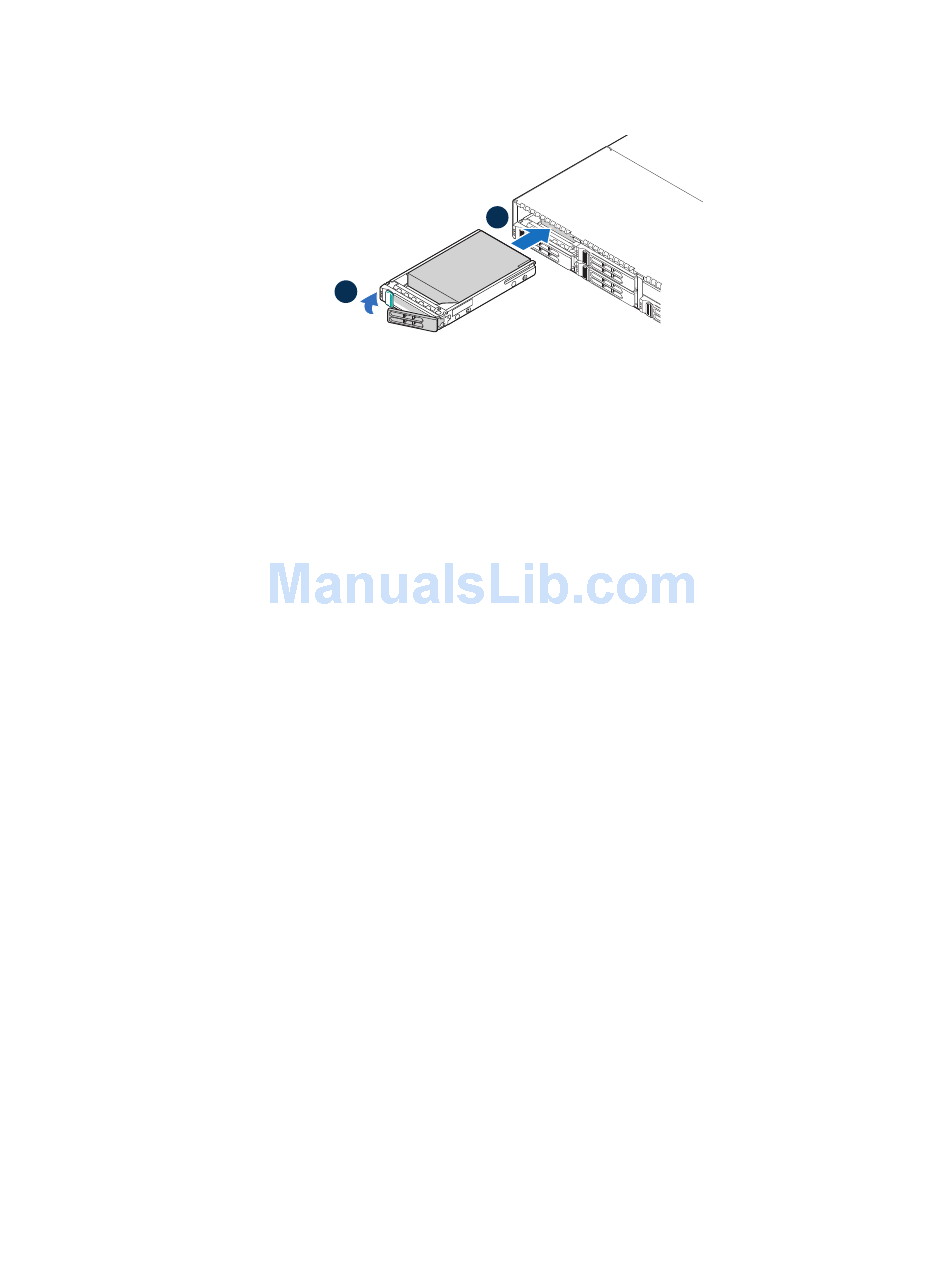

Figure 47. Install Drive Assemby into the Server System

Disk Drive" on page 59.
carrier and secure the device by inserting the four screws you removed from the
hard drive into the screw locations on the carrier.
A
AF002874
"Installing a Hot-swap SAS/SATA Hard
Figure 47).)
