b. If you connect the SATA cables from the passive midplane to the add-in card,
Note: Do NOT connect the HBA cable in a system with an active midplane or when
8. Install the bridge board as follows:
a. Open the retention clips on both ends.
b. Insert the bridge board into the bridge board connector on the midplane and
c. Close the retention clips on both ends to hold the bridge board in place.
9. Install the processor air duct. For instructions, see
Duct" on page
10. Install the PCI riser assembly into the server system. For instructions, see
"Installing the PCI Riser Assembly" on page
®
Intel
Server System SR1625UR Service Guide
Cable
Retention
Tab

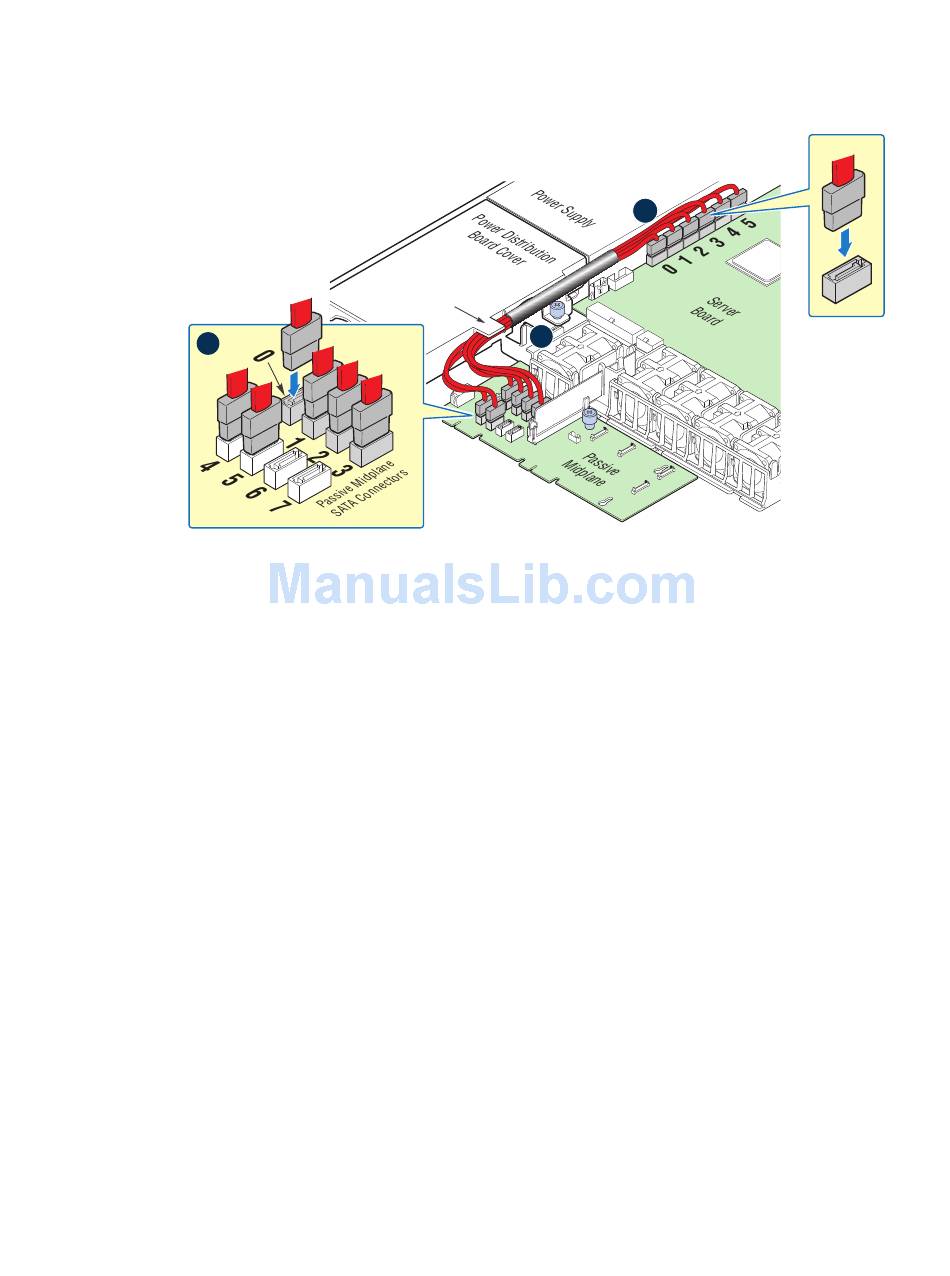

Figure 61. Installing the SATA Cables

also install the 3-pin white cable between the HBA connector on the midplane
and the add-in card to enable fault LED control.
using the SATA connectors on the server board to connect the hard drive SATA
cables.
server board.
49.
A
B
"Installing the Processor Air
44.
AF002843
73
