Figure 45. Removing Drive Blank From Drive Carrier; Figure 46. Installing Hard Drive Into Carrier - Intel SR1625UR - Server System - 0 MB RAM Service Manual

4. Remove the hard drive from its wrapper and place it on an anti-static surface.
5. Set any jumpers and/or switches on the drive according to the drive manufacturer's
instructions.
6. With the drive circuit-side down, position the connector end of the drive so that it is
facing the rear of the drive carrier.
7. Align the holes in the drive to the holes in the drive carrier and attach it to the
carrier using the four screws that were attached to the plastic retention device (see
letter "B" in
8. With the black lever held in the fully open position, slide the hard disk assembly
into the server system and push all the way until it clicks (see letter "A" in
Figure
60

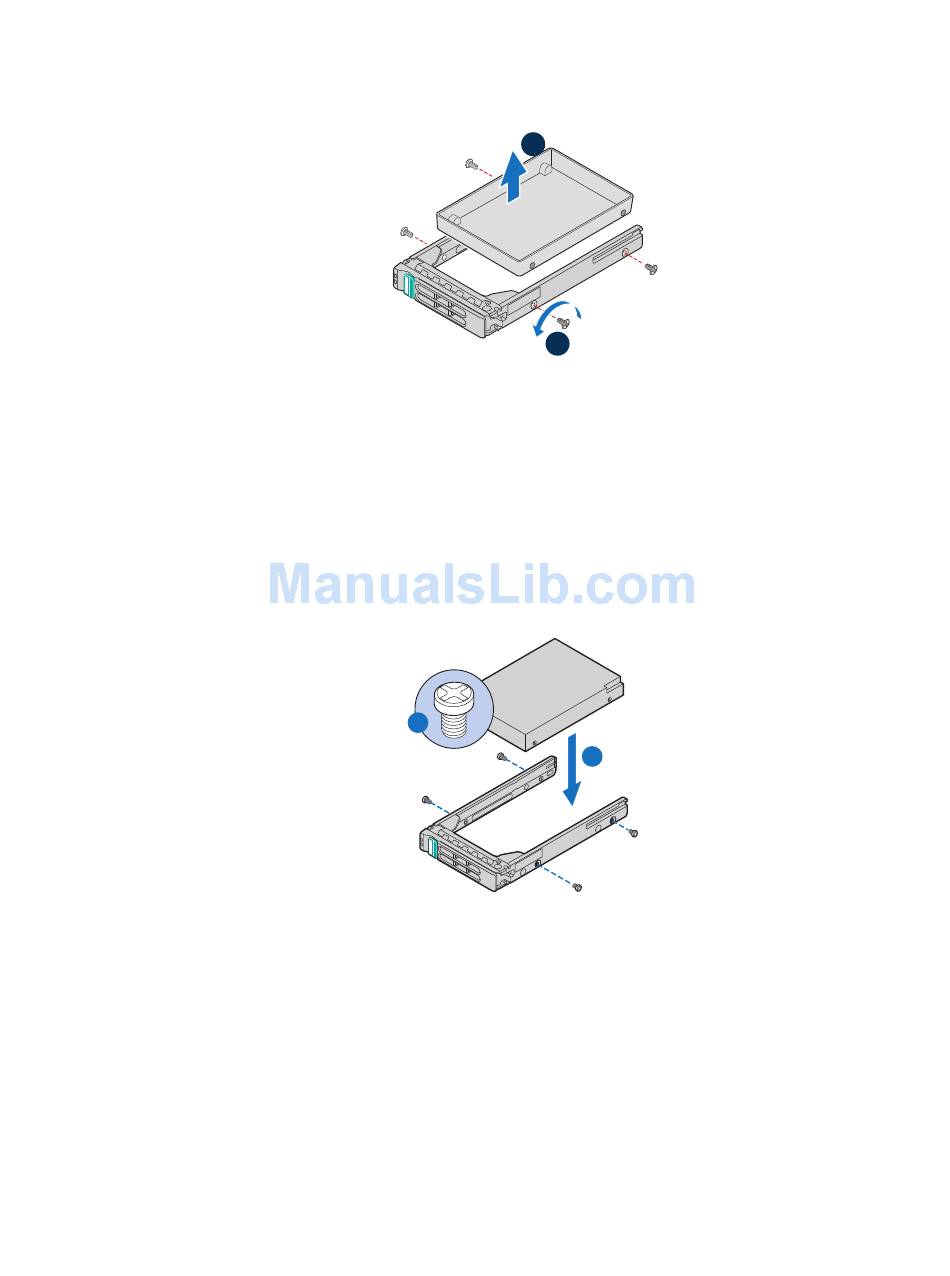

Figure 45. Removing Drive Blank from Drive Carrier

Figure 46).
B

Figure 46. Installing Hard Drive into Carrier

47).
B
AF002850
A
A
TP02231
®
