Removing A Sas Or Sata Hot-Swap Hard Disk Drive; Figure 31. Installing Hard Drive Into Carrier; Figure 32. Install Drive Assembly Into The Server System - Intel SR1560SF - Server System - 0 MB RAM Service Manual

4. Remove the hard drive from its wrapper and place it on an antistatic surface.
5. Set any jumpers and/or switches on the drive according to the drive manufacturer's
instructions.
6. With the drive circuit-side down, position the connector end of the drive so that it is
facing the rear of the drive carrier.
7. Align the holes in the drive to the holes in the drive carrier and attach it to the
carrier with the screws that were attached to the drive blank.
8. With the black lever in the fully open position, slide the drive assembly into the
server system. The green latch at the front of the drive carrier must be to the right.
Do not push on the black drive carrier lever until the lever begins to close by itself.
9. When the black drive carrier lever begins to close by itself, push on it to lock the
drive assembly into place.

Removing a SAS or SATA Hot-swap Hard Disk Drive

1. Press in on the green latch at the front of the hard drive carrier. and pull out on the
black lever to slide the carrier from the server system.
2. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive
from the carrier and store the drive in an anti-static bag.
®
Intel Server System SR1560SF Service Guide
A

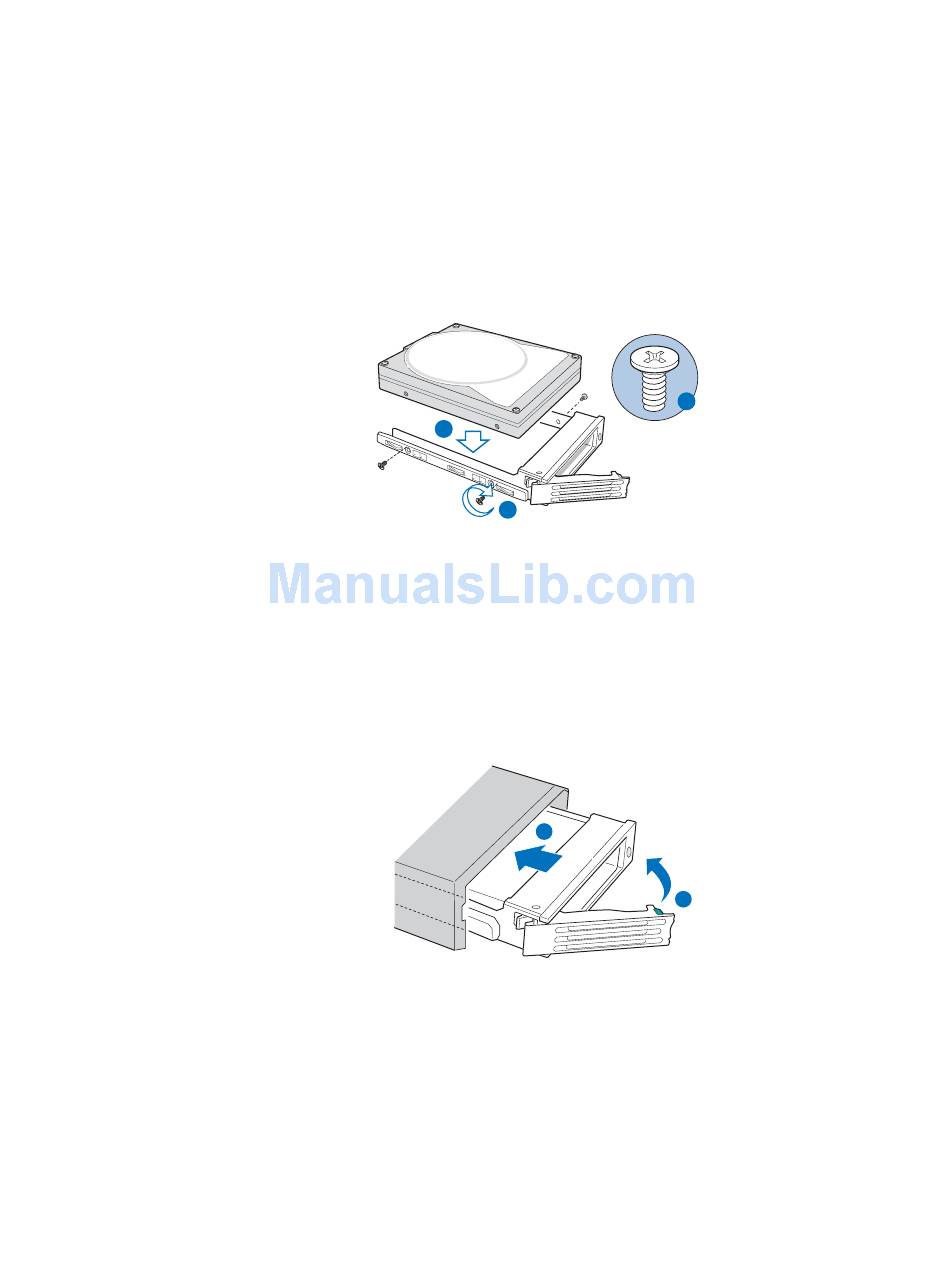

Figure 31. Installing Hard Drive into Carrier

Figure 32. Install Drive Assembly into the Server System

B
B
TP02208
B
A
TP02209
33
