Installing and Removing Memory
The silkscreen on the board displays DIMM A1, DIMM A2, DIMM B1, DIMM B2,
DIMM C1, DIMM C2 for DIMMs on CPU socket 1 and DIMM D1, DIMM D2, DIMM
E1, DIMM E2, DIMM F1, DIMM F2 for DIMMs on CPU socket 2.
Installing DIMMs
To install DIMMs, follow these steps:
1. Remove the PCI riser assembly. For instructions, see
Assembly" on page
2. Remove the processor air duct. For instructions, see
Duct" on page
50

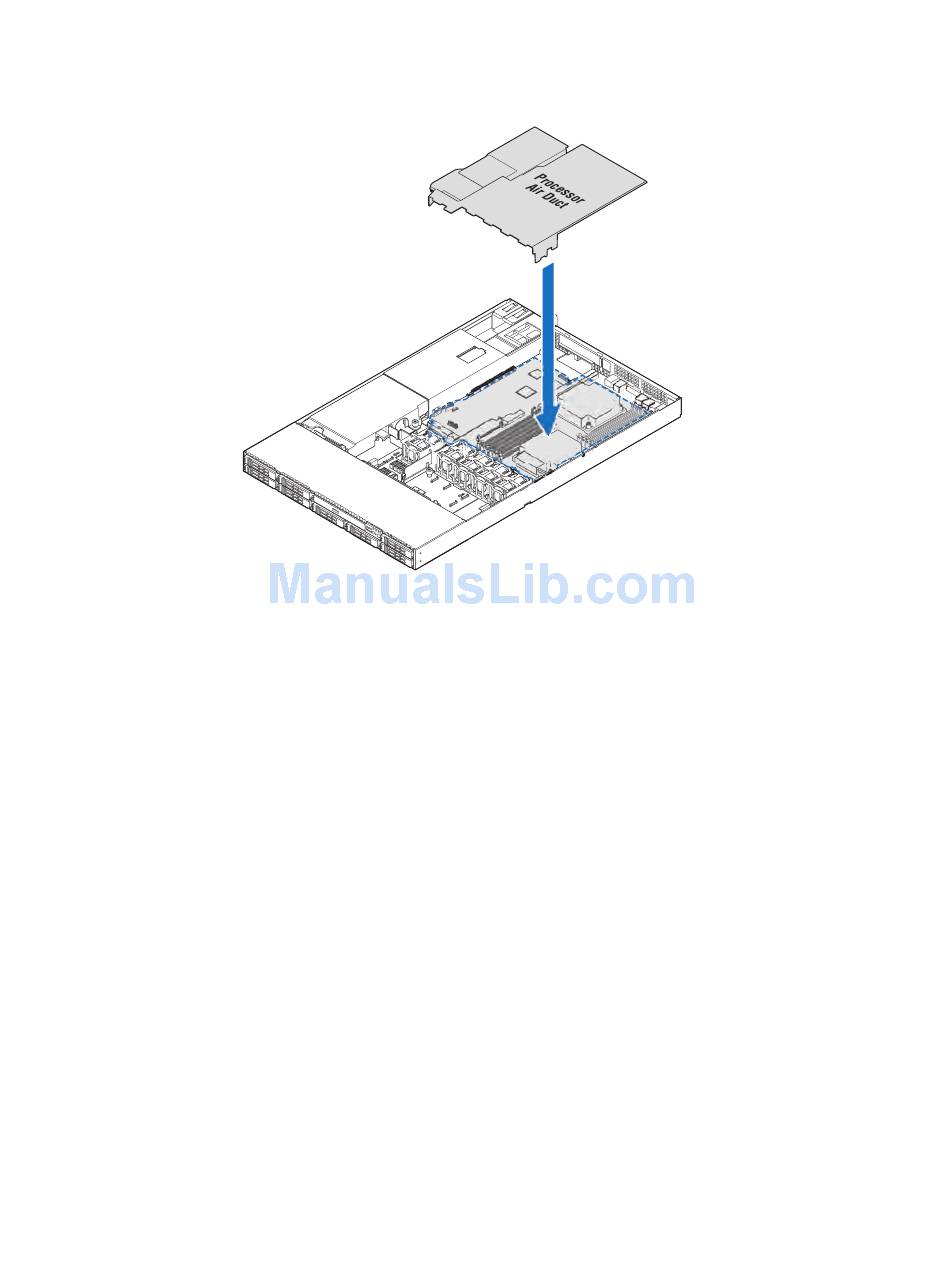

Figure 34. Installing the Processor Air Duct
43.
48.
AF002848
"Removing the PCI Riser
"Removing the Processor Air
®
Intel
Server System SR1625UR Service Guide
