Installing the Cisco Unified IP Phone

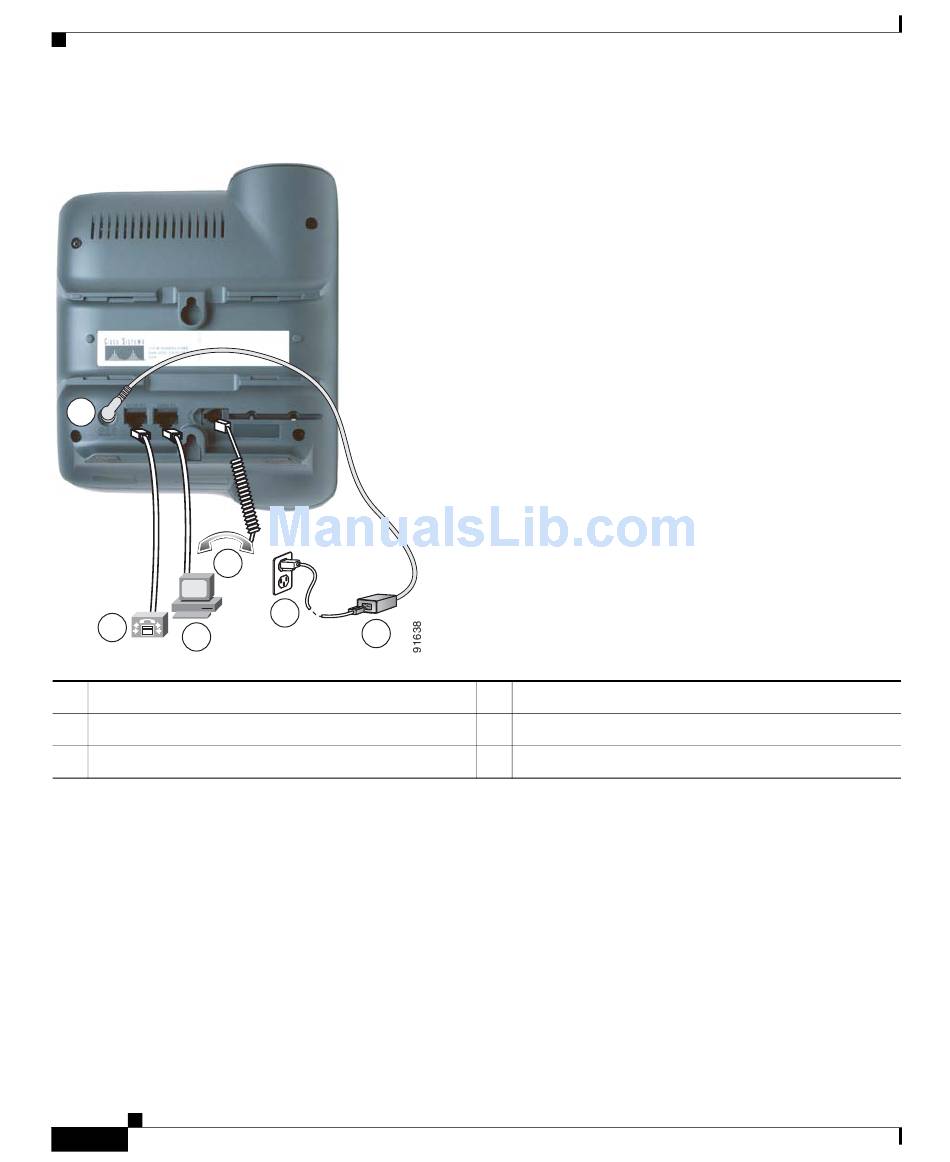

Figure 3-4 Cisco Unified IP Phone Model 7911G Cable Connections
4
3
1
2
1
Network port (10/100 SW)
2 Access port (10/100 PC)
3
Handset port
Cisco Unified IP Phone 7906G and 7911G for Cisco Unified Communications Manager 6.0
3-14
6
5
Related Topics
Before You Begin, page 3-2
•
Mounting the Phone to a Wall, page 3-15
•
Configuring Startup Network Settings, page 3-17
•
Chapter 3 Setting Up the Cisco Unified IP Phone
4
DC Adapter port (DC48V)
5 AC-to-DC power supply
6
AC power cord
