The above screen allows you to configure a QoS queue entry and assign it to a specific network interface.
Each of the queues can be configured for a specific precedence. The queue entry configured here will be
used by the classifier to place ingress packets appropriately.
Note – Precedence level 1 relates to higher priority while precedence level 3 relates to lower priority.
WLAN Queue
The QoS WLAN Queue page displays a summary of the QoS configuration.
QoS Classification
Click the Add button to configure network traffic classes.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

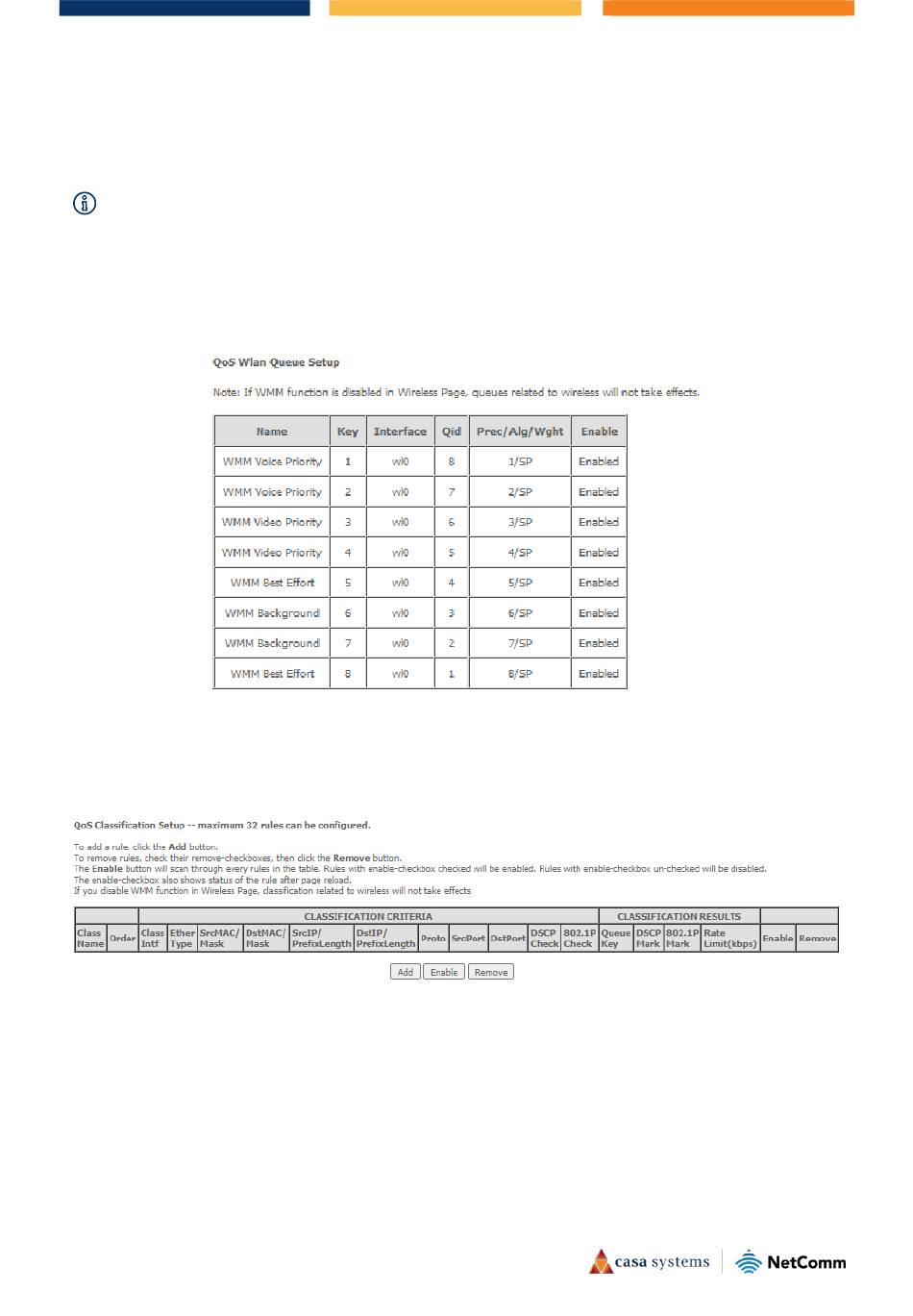

Figure 88 – Advanced – QoS – WLAN Queue
Figure 89 – Advanced – QoS Classification list
