Basic Setup
The Basic Setup configuration wizard guides you through setting up your Internet connection. To complete
the wizard, you will need some information about your connection from your Internet Service Provider, such
as the WAN connection type, authentication methods, login credentials (if required) and other settings. Note
that in many cases, the gateway may have been pre-configured for you by your provider and therefore we
recommend that you do not run the basic setup if everything is working.
ADSL connections
1 Select ADSL and click the Next button.
2 Select either the PPP over Ethernet (PPPoE), IP over Ethernet (IPoE), Bridging or PPP Over ATM (PPPoA)
for your Internet connection as specified by your Internet Service Provider (ISP)
Click the Next button.
PPPoE/PPPoA
a Enter the VPI and VCI settings.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

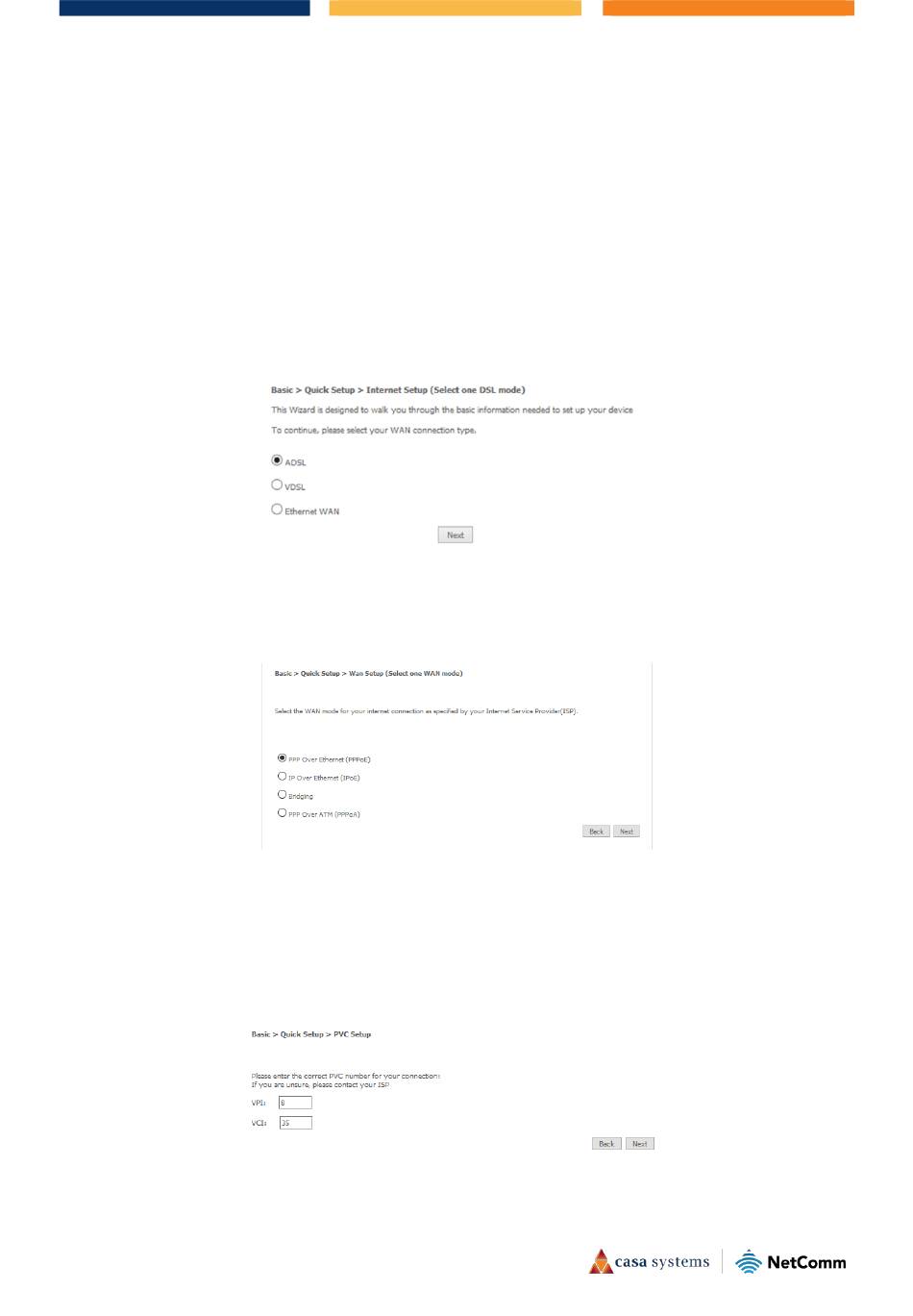

Figure 9 –Select ADSL as WAN connection type
Figure 10 – Select WAN mode
Figure 11 - ADSL VPI/VCI settings
