NetComm NL20MESH User Manual page 53

Port Triggering
Some applications require specific ports in the Router's firewall to be open for access by remote parties. Port
Triggering opens up the 'Open Ports' in the firewall when an application on the LAN initiates a TCP/UDP
connection to a remote party using the 'Triggering Ports'.
The Router allows the remote party from the WAN side to establish new connections back to the application
on the LAN side using the 'Open Ports'. A maximum of 32 entries can be configured.
This is a list of specific ports in the router's firewall that are open for access by remote parties.
Click the Add button and configure the port settings from an existing application in the drop-down list or
create your own custom application.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

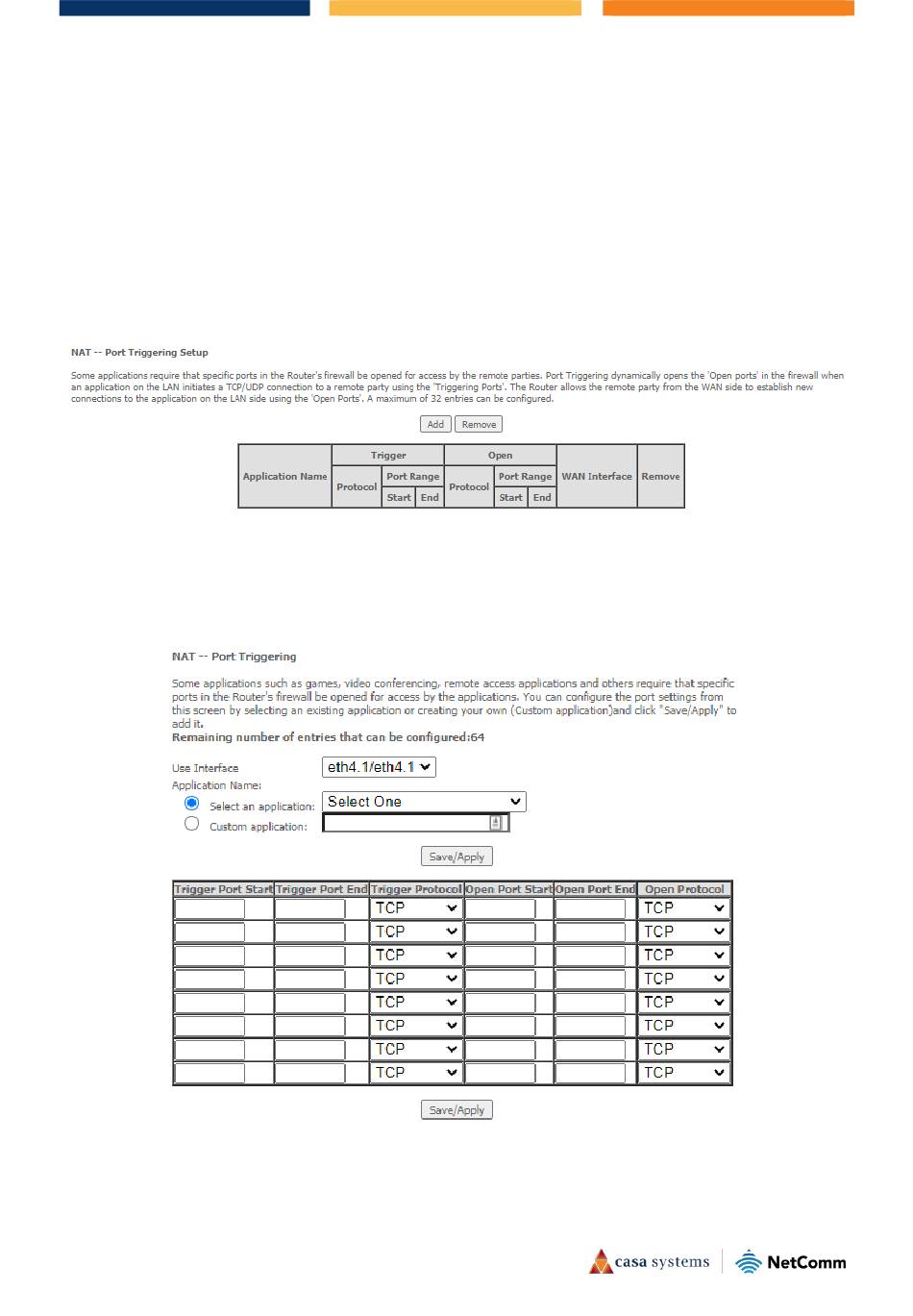

Figure 72 – NAT -- Port Triggering list
Figure 73 – NAT -- Port Trigger Configuration page
53 of 123
