Interfaces
The Wi-Fi 6 CloudMesh Hybrid Gateway is designed to be placed on a desktop with the front facing outward.
All of the cables exit from the rear for easy organization and the power ON/OFF and WPS buttons on the
side.
Front view
The LED display visible on the front of the CloudMesh Gateway provides you with information about network
activity and the device status.
LED indicators
The following table contains an explanation of each of the indicator lights on the front of the CloudMesh
Gateway.
L a b e l
Power
Internet
Wi-Fi
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

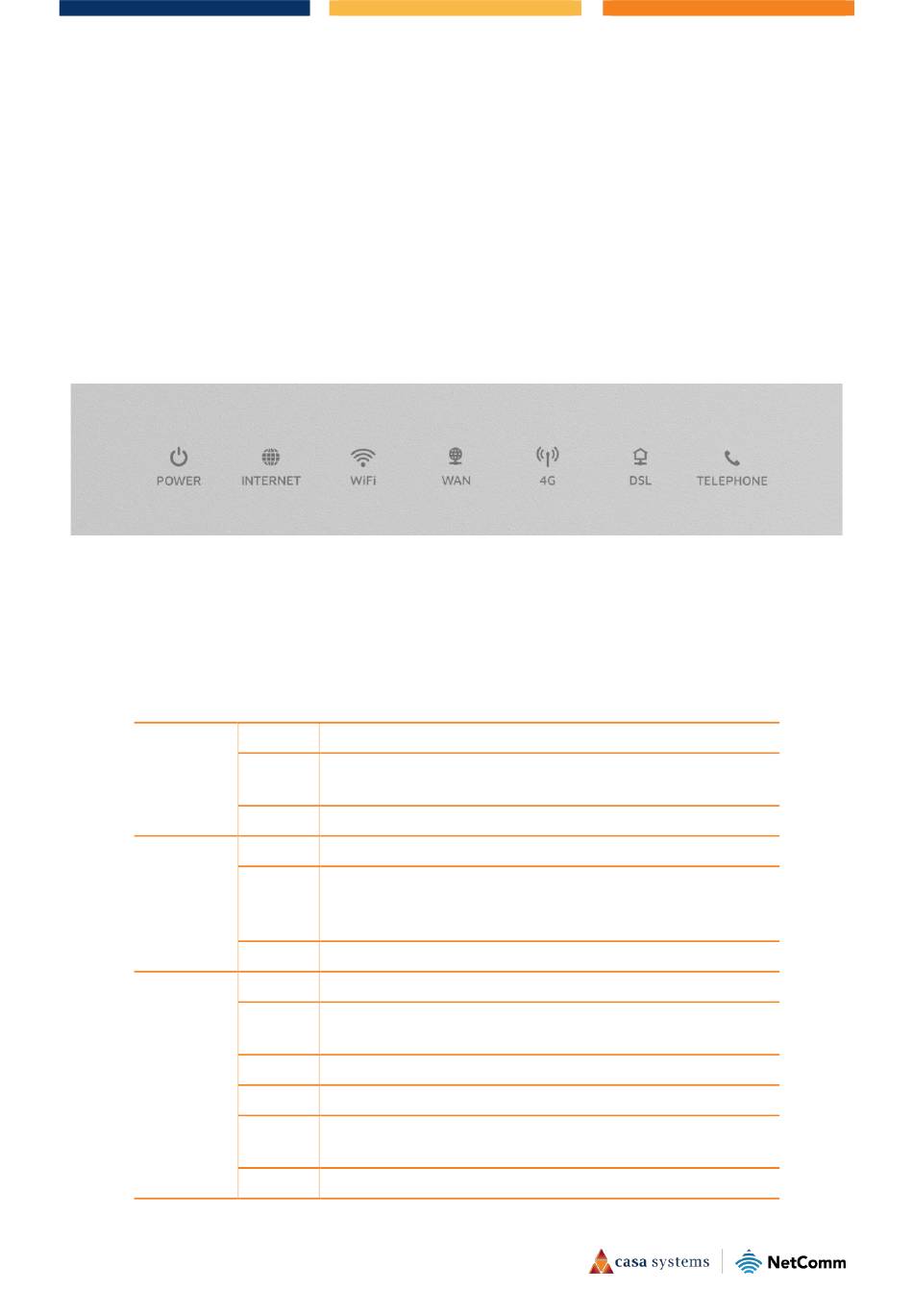

Figure 4 - LED icons
C o l o u r D e f i n i t i o n
Red The CloudMesh Gateway is powered on and initialising.
Green The CloudMesh Gateway is powered on and operating
normally.
Off The power is off.
Green The CloudMesh Gateway is connected to an Internet service.
Green Data is being transmitted to or from the Internet. Note that
Blinking this will only blink for Ethernet WAN connections. Other
connection types will show a steady green status.
Off The CloudMesh Gateway is not connected to the Internet.
Green Wi-Fi is enabled.
Green Data is being transmitted to or from the Wireless interface.
Blinking
Off Wi-Fi is disabled.
Green Wi-Fi is enabled.
Green Data is being transmitted to or from the Wireless interface.
Blinking
Off Wi-Fi is disabled.
