NetComm NL20MESH User Manual page 16

WAN
4G
DSL
Telephone
Rear view
The following interfaces are available on the rear panel of the CloudMesh Gateway:
I n t e r f a c e
Power
Reset
Telephone
DSL
USB
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023
Green A device is connected to the Ethernet WAN port.
Green Data is being transmitted to or from the WAN.
Blinking
Off No device is connected to the Ethernet WAN port.
Green Registered on the 4G network
Off Not registered on the 4G network
Off No DSL signal detected.
Green Synching
Blinking
Green DSL synchronized.
Green A handset is registered.
Green Incoming call or the handset is in use.
Blinking
Off No handset registered
Table 1 - LED icon descriptions

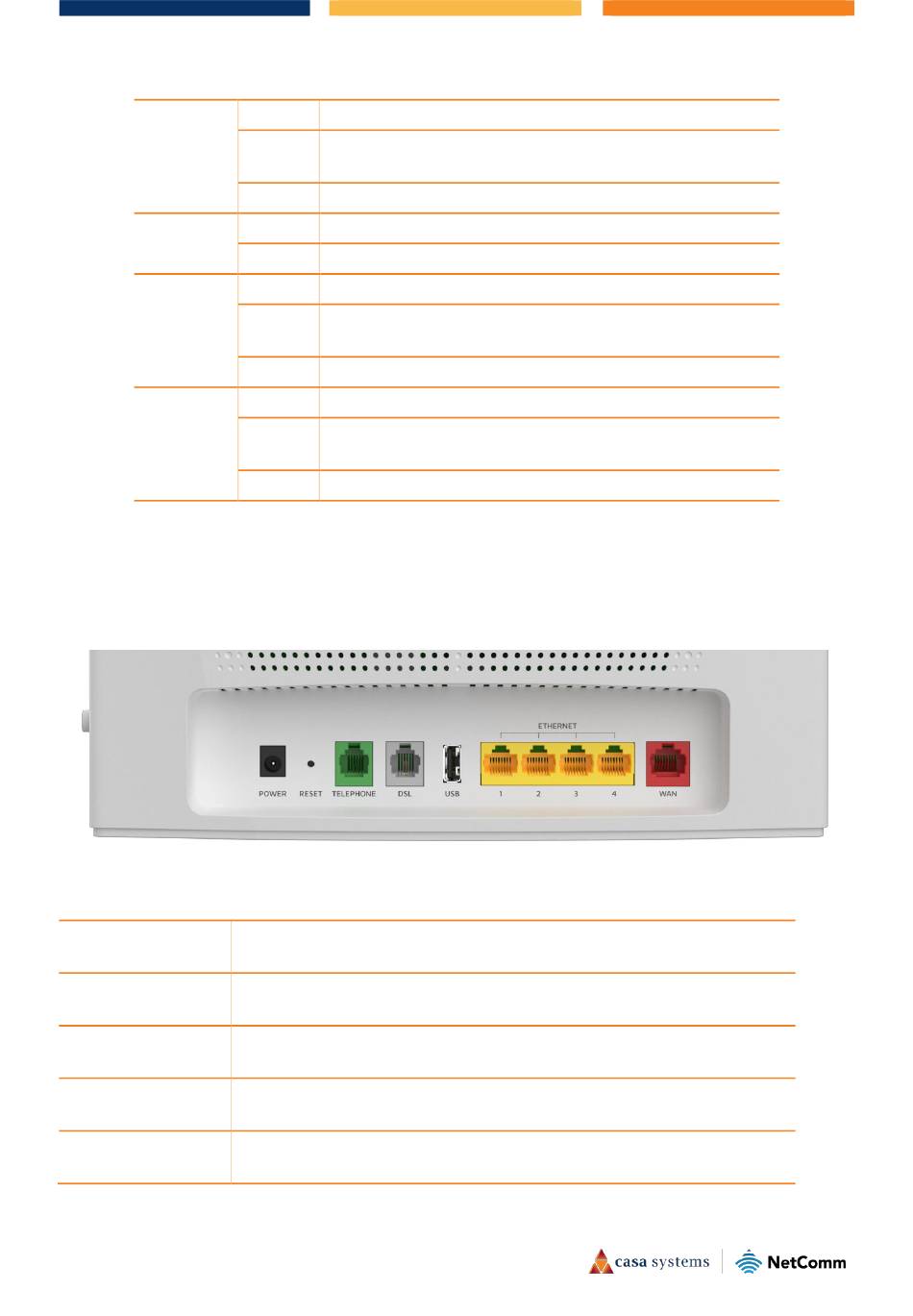

Figure 5 – CloudMesh Gateway rear view
D e s c r i p t i o n
Connection point for the included power adapter. Connect the power
supply here.
Reset unit to Default by holding the Reset button down for 10 seconds
when unit is powered on.
Connect a regular analogue telephone handset here for use with a VoIP
service.
Use the provided telephone cable to connect the router to the telephone
line operating your xDSL service.
Connect an external USB storage device here to use the Network Attached
Storage (NAS) feature of the CloudMesh Gateway.
16 of 123
