NetComm NF18ACV Quick Start Manual

Vdsl2 / adsl2+ dual band ac1600 gigabit gateway with voip
Hide thumbs Also See for NF18ACV:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual

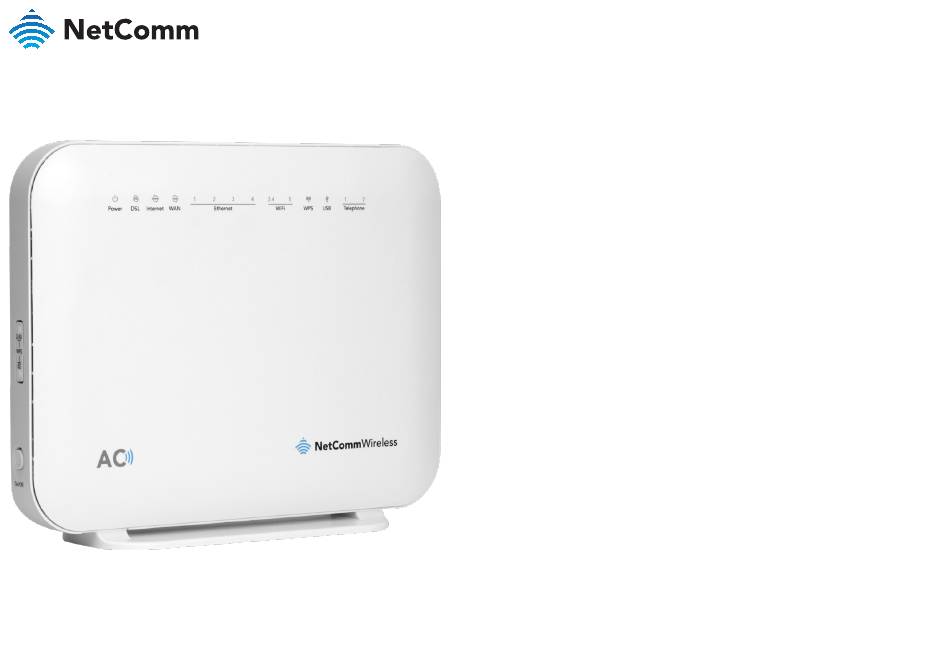

NF18ACV - QUICK START GUIDE
VDSL2 / ADSL2+
Dual Band AC1600
Gigabit Gateway
with VoIP

Advertisement

Table of Contents
loading

Related Manuals for NetComm NF18ACV

Summary of Contents for NetComm NF18ACV

  • Page 1 NF18ACV - QUICK START GUIDE VDSL2 / ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP...
  • Page 2 WELCOME Thank you for choosing a NetComm Wireless NF18ACV VDSL2 / ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP. This guide will help you set up, connect and configure your device quickly and easily.

  • Page 3: Table Of Contents

    PACKAGE CONTENTS PRE-REQUISITES LOGGING IN TO THE WEB INTERFACE USING THE FIRST-TIME SETUP WIZARD TABLE OF INTERNET WIRELESS CONTENTS PHONE GATEWAY SECURITY TIMEZONE SUMMARY CONNECTING WIRELESS DEVICES...

  • Page 4: Package Contents

    PACKAGE 1 x NetComm Wireless NF18ACV VDSL2 / ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP CONTENTS 1 x RJ45 Ethernet cable 1 x RJ11 Telephone cable 1 x WiFi Security card 1 x Warranty card 1 x Power supply (12V/2A)
  • Page 5 2.4GHz - 2.4GHz - 5GHz - 5GHz -...

  • Page 6: Pre-Requisites

    If NF18ACV. Connect the DSL line filter (not included) to the wall socket you have a Naked DSL service, and then connect your handset to the “phone” port of the filter. If you line filters are not required.
  • Page 7 = Optional Elements...
  • Page 8 ETHERNET CONNECTIONS Connect a straight-through Ethernet cable to the blue port on the back of the NF18ACV and then connect the other end to your upstream gateway device, for example an FTTP gateway or HFC cable modem. Connect the supplied RJ45...

  • Page 10: Logging In To The Web Interface

    LOGGING IN Open a web browser (such as Internet Explorer®, Mozilla Firefox® or https://192.168.20.1 Google Chrome™), type into the address bar and TO THE WEB press Enter. At the login screen, type admin into both the Username INTERFACE Password fields, then click the Login >...

  • Page 11: Using The First-Time Setup Wizard

    USING Upon first login, the gateway displays the first-time setup wizard. We recommend using the wizard to configure your internet connection. THE FIRST- TIME SETUP WIZARD Yes, start the setup wizard Click on the button. Follow the instructions below for your connection type.

  • Page 12: Internet

    INTERNET ADSL Internet Service, select ADSL. Under Under Connection Type, select the type of connection your ISP has configured for you, i.e. PPPoE, PPPoA, Dynamic IP, Static IP or Bridge. Enter the required details under Connection Type on the right.
  • Page 13 PPPoE Enter the VPI and VCI values and the username and password required by your ISP. If you are unsure of Next > these, contact your ISP. Click the button when you have finished. PPPoA Enter the VPI and VCI values and the username and password required by your ISP.
  • Page 14 Dynamic IP Enter the VPI and VCI values required by your ISP. If you are unsure of these, contact your ISP. Click the Next > button when you have finished.
  • Page 15 Static IP Enter the VPI and VCI values, WAN IP Address, WAN Subnet Mask, WAN Gateway IP Address, Primary DNS server and Secondary DNS server required by your ISP. If you are unsure of these, contact your ISP. Click the Next >...
  • Page 16 VDSL Internet Service, select VDSL. Under Under Connection Type, select the type of connection your ISP has configured for you, i.e. PPPoE, Dynamic IP, Static IP or Bridge. Enter the required details under Connection Type on the right.
  • Page 17 PPPoE Enter the username and password, 802.1P priority and VLAN Tag required by your ISP. If you are unsure of Next > these, contact your ISP. Click the button when you have finished. Dynamic IP Enter the 802.1P priority and VLAN Tag required by your ISP.
  • Page 18 Static IP Enter the WAN IP Address, WAN Subnet Mask, WAN Gateway IP Address, Primary DNS server and Secondary DNS server, 802.1P priority and VLAN Tag required by your ISP. If you are unsure of these, contact your ISP. Click the Next >...
  • Page 19 Ethernet WAN Internet Service, select Ethernet WAN. Under Under Connection Type, select the type of connection your ISP has configured for you, i.e. PPPoE, Dynamic IP, Static IP or Bridge. Enter the required details under Connection Type on the right.
  • Page 20 PPPoE Enter the username and password, 802.1P priority and VLAN Tag required by your ISP. If you are unsure of Next > these, contact your ISP. Click the button when you have finished. Dynamic IP Enter the 802.1P priority and VLAN Tag required by your ISP.
  • Page 21 Static IP Enter the WAN IP Address, WAN Subnet Mask, WAN Gateway IP Address, Primary DNS server and Secondary DNS server, 802.1P priority and VLAN Tag required by your ISP. If you are unsure of these, contact your ISP. Click the Next >...

  • Page 22: Wireless

    WIRELESS On this page you can configure the wireless networks of the gateway. Enter Network Name (the name displayed on client devices when they scan for wireless networks), the Security Key Type (encryption type) and the WiFi password. When you have finished, click the Next >...

  • Page 23: Phone

    PHONE Configuration of a telephone is optional. If you do not intend to use a telephone handset with your router, click the Next > button to skip this section. To configure a telephone, enter the details into the fields shown for each line you wish to use.

  • Page 24: Gateway Security

    GATEWAY We highly recommend that you configure a new username and password to access the router. Usernames and passwords are case sensitive, can be SECURITY up to 16 characters in length and may comprise letters, special characters and numbers without spaces. When you have finished entering the new credentials, click the Next >...

  • Page 25: Timezone

    TIMEZONE Specify the timezone where the router is located for correct time keeping and logging on the device. Click the Next > button when you have chosen the correct timezone.

  • Page 26: Summary

    SUMMARY The wizard displays a summary of the entered information. Check that the details are correct. If they are correct, click the Finish > button. If they are not, click the < Back button to go back to the relevant screen to make changes. When you click the Finish >...

  • Page 27: Connecting Wireless Devices

    Enter the username and password that you specified during the setup wizard and follow the rest of the client’s set up process to connect. Congratulations! Your NF18ACV VDSL2 / ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP is now ready for use.
  • Page 28 SUPPORT.NETCOMMWIRELESS.COM Trademarks and registered trademarks are the property of NetComm Wireless Limited or their respective owners. Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
