NetComm NL20MESH User Manual page 21

Advanced configuration of the CloudMesh
Gateway
To perform advanced configuration of the CloudMesh Gateway, you can access its web interface.
1 Push the power button on the side of the CloudMesh Gateway to turn it on. Wait a few minutes for it
to complete starting up.
2 Open a web browser and type 192.168.20.1 into the address bar, then press Enter.
3 At the login screen, type admin into the Username field. In the Password field, type the unique
password printed on the label on the bottom of the gateway, then click on the Login > button. If you
have changed the password, enter your chosen password instead.
4 If this is your first time configuring the gateway, select Basic Setup from the menu on the left side of
the screen to run through the configuration wizard. See here for further steps regarding the Basic
Setup configuration wizard.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

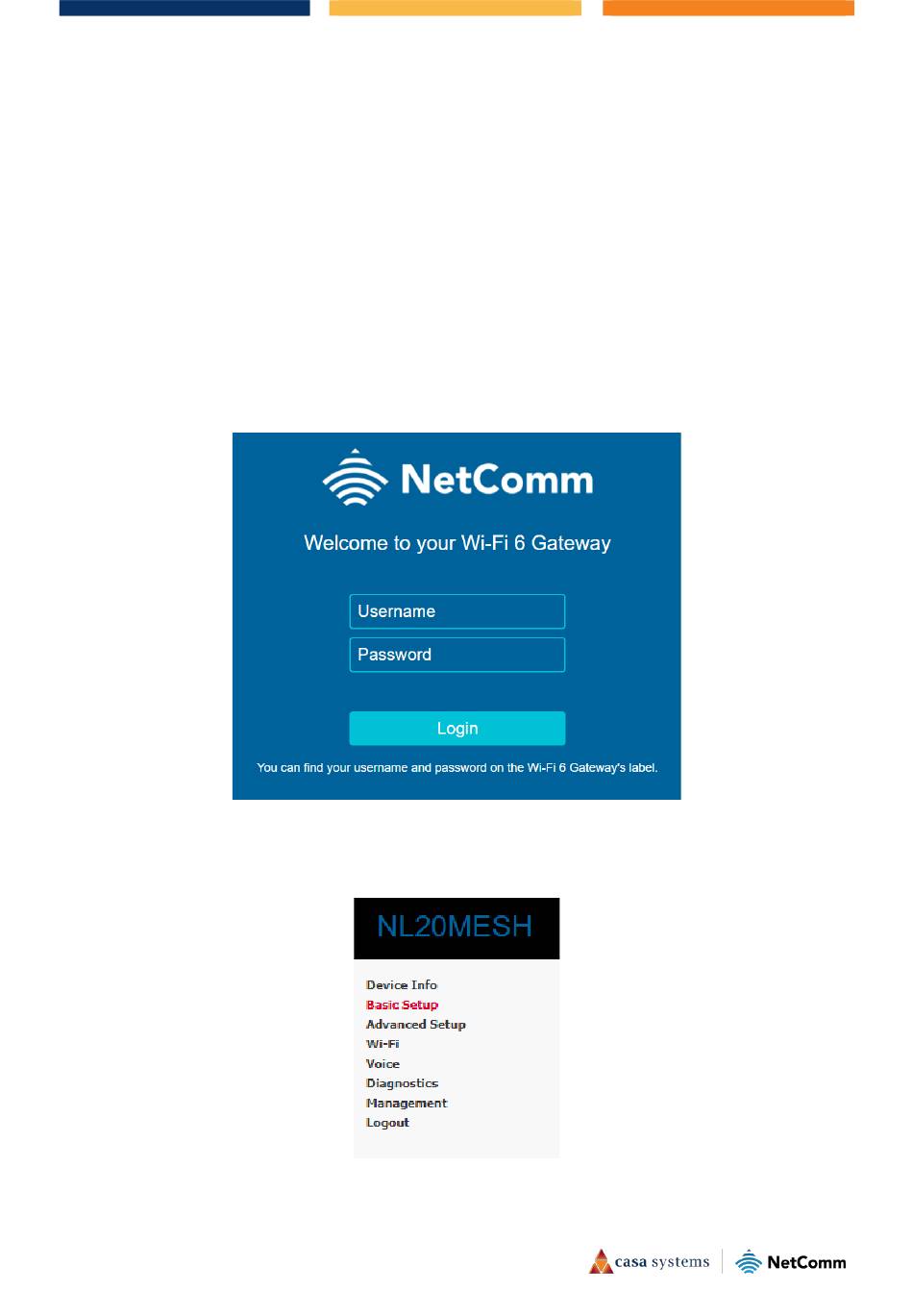

Figure 7 - Basic Setup menu item
21 of 123
