WAN Service
The WAN Service page displays the current Wide Area Network service setup and allows you to configure the
router to connect to a larger network for Internet access.
Attention – WAN service requires a preconfigured Layer 2 interface, be it ATM/PTM or Ethernet WAN.
To add a WAN service, click the Add button. Use the drop-down list to select the layer 2 interface to use for
the WAN service and click the Next button.
Select a WAN service type, enter a Service Description, enter the 802.1P Priority and 802.1Q VLAN ID if
required, then click the Next button.
To disable VLAN tagging, place input value of -1. Refer to your ISP for VLAN information as required by your
Internet Service Provider.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

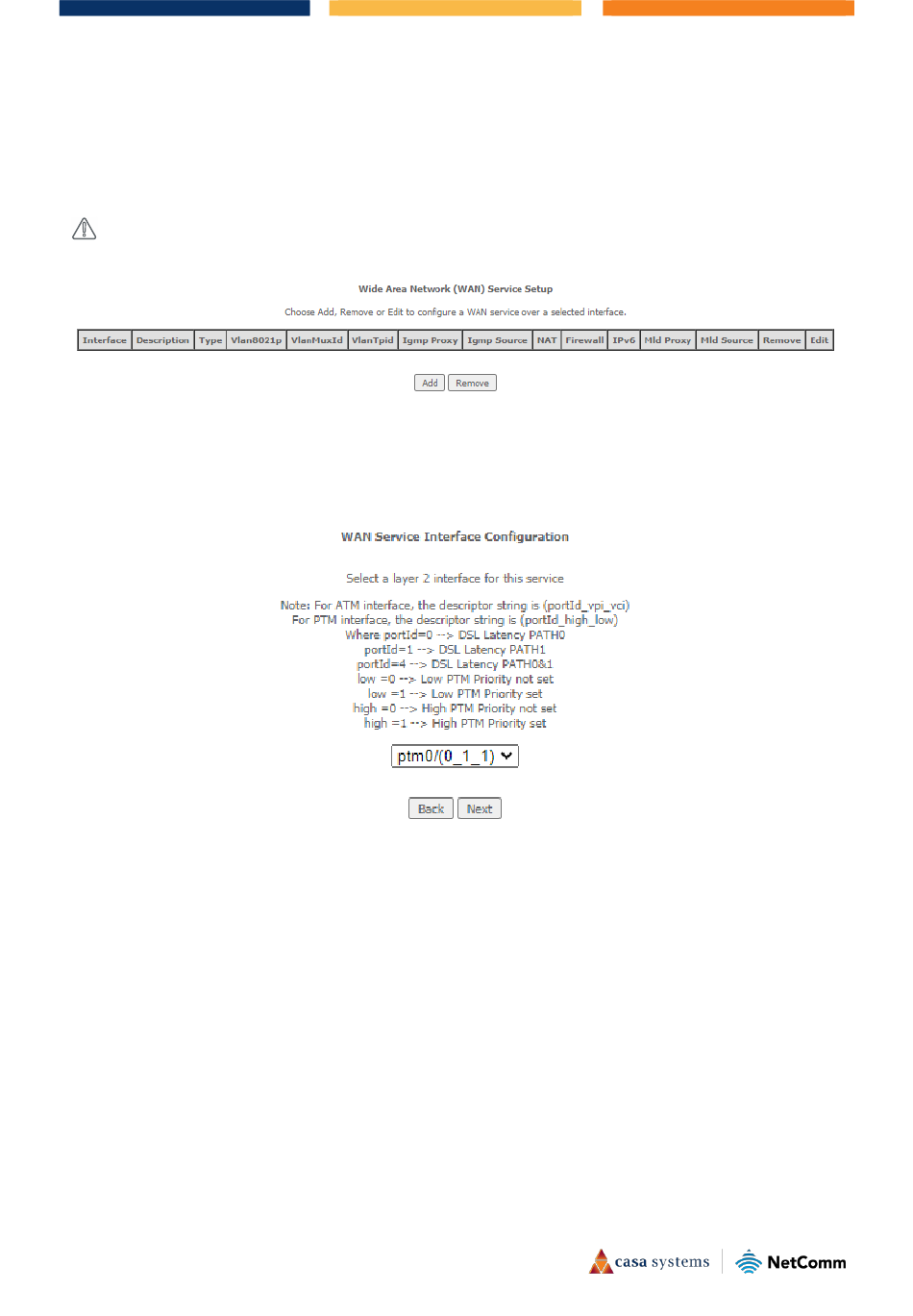

Figure 53 – WAN Service setup
Figure 54 – WAN Service – Select layer 2 interface
