You can also reserve DHCP Addresses for specific hosts as shown below:
To set a DHCP reservation, enter the MAC Address of the chosen host and IP to use and then click
Apply/Save.
The CloudMesh Gateway enables you to set the DHCP options which are provided to hosts attempting to
connect to the DHCP server.
These options should not normally need to be set or changed. Click Apply/Save to save the new LAN
configuration settings.
IPv6 Autoconfig
The IPv6 LAN Auto Configuration page allows you to configure settings pertaining to the IPv6 service.
O p t i o n D e f i n i t i o n
Enable Unique Enable the use of unique local addresses. The router will advertise the IPv6 /64 prefix
Local Addresses to new devices on the network.
and Prefix
Advertisement
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

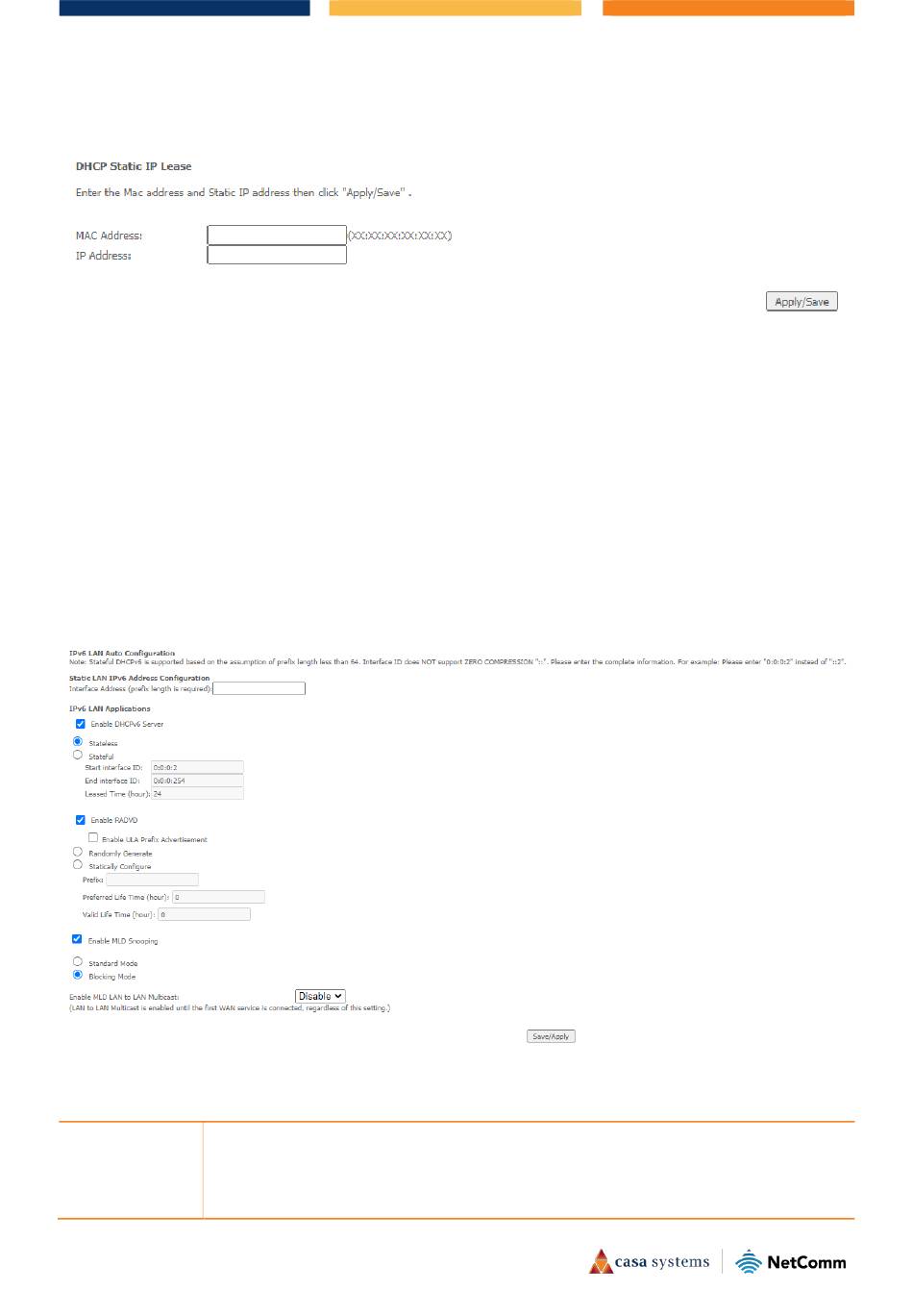

Figure 67 – Enter DHCP Static IP Addresses
Figure 68 – IPv6 LAN Auto Configuration page
