b
In the User ID and Password fields, enter the PPPoE authentication username and password
assigned to you by your Internet Service Provider (ISP).
c
A summary of the settings is displayed. Click the Apply/Save button to complete the wizard.
A WAN information table is displayed.
The setup is complete.
IPoE
a
Enter the VPI and VCI settings.
b
Select whether to obtain an IP address automatically or Use the following Static IP address.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

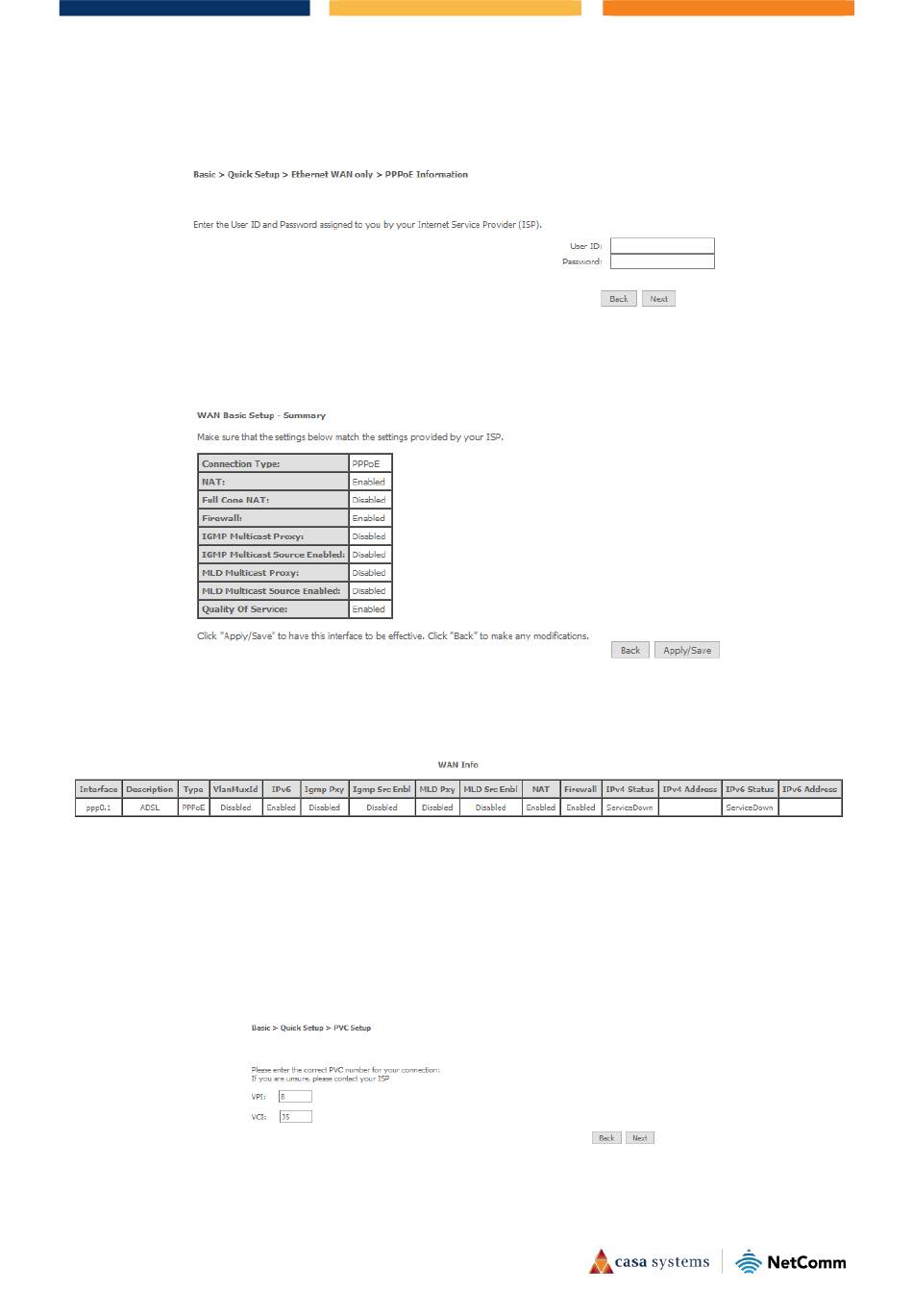

Figure 12 - PPPoE User ID and password
Figure 13 - ADSL WAN Setup Summary
Figure 14 – PPPoE WAN Info table
Figure 15 - ADSL VPI/VCI settings
24 of 123
