NetComm NL20MESH User Manual page 37

Click the Add button to create a new PTM interface. Enter the details as required by your Internet Service
Provider and click the Apply/Save button.
ETH Interface
The ETH interface page allows you to add or remove ETH WAN interfaces.
Note – When the eth4 - ETH WAN Layer 2 interface is removed, the ETH WAN port will behave as an additional Ethernet LAN port.
Wi-Fi 6 CloudMesh Hybrid Gateway – User Guide
UG01445 v1.01 27 October 2023

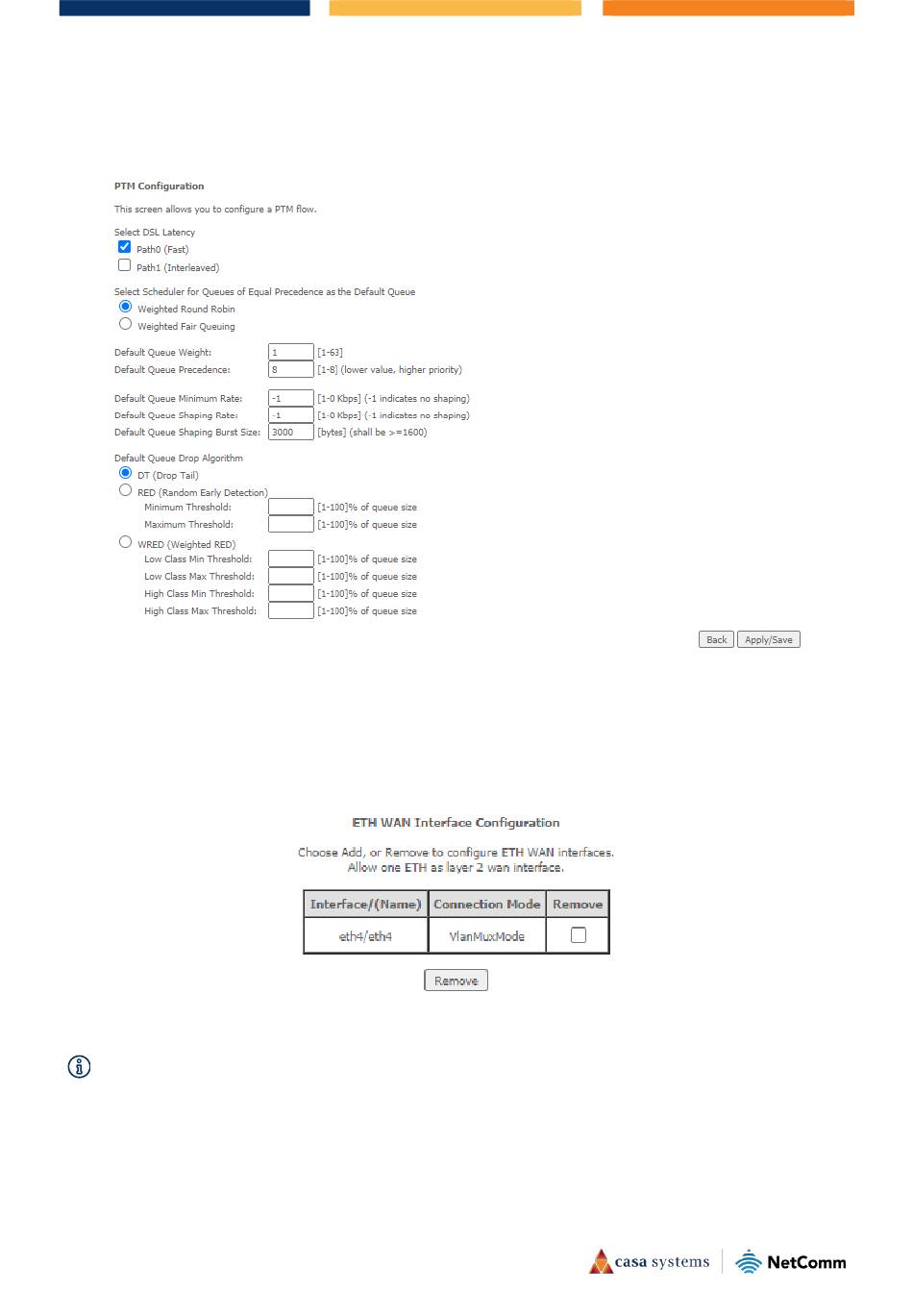

Figure 51 – PTM Configuration page
Figure 52 – ETH WAN interface list WAN Service
37 of 123
