NETCOMM FIBRE™ SERIES
Dual Band WiFi Data and
VoIP Gateway
NF3ADV - Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIBRE NF3ADV and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm FIBRE NF3ADV

Summary of Contents for NetComm FIBRE NF3ADV

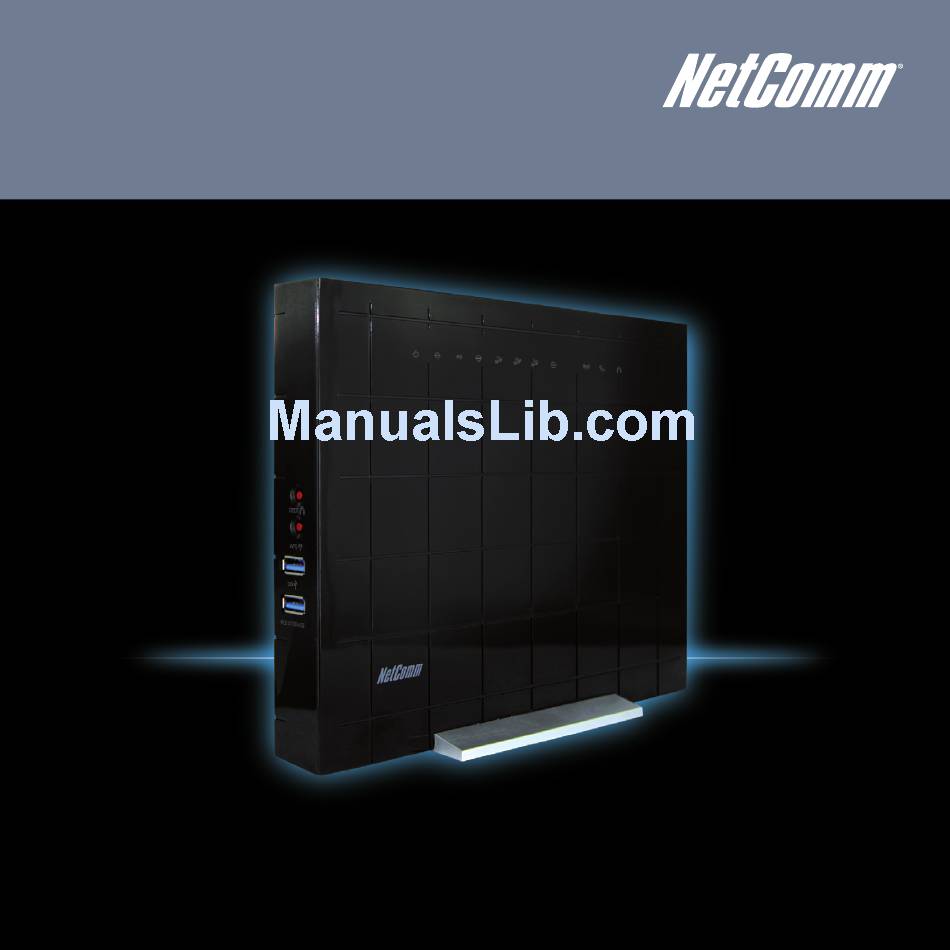

  • Page 1 NETCOMM FIBRE™ SERIES Dual Band WiFi Data and VoIP Gateway NF3ADV - Quick Start Guide...
  • Page 2 This router has been designed to be placed on a desktop. All of the cables exit from the rear for better organization. The LED indicator display is visible on the front of the gateway to provide you with information about network activity and the device status. See below for an explanation of each of the indicator lights.
  • Page 3 Connect an Ethernet based WAN device (NBN) LAN 1-3 Gigabit LAN ports for wired Ethernet clients (computers, laptops, etc) On/Off Turn the NF3ADV on or off Power Power connector, connects to a DC 12V 3A Power Adapter DECT Hold and release this button within 3 seconds for connecting your DECT handset...

  • Page 4: Internet Connection Options

    If you are using Fibre, connect your RJ-45 Ethernet cable from the blue WAN Ethernet port to your NBN supplied termination device (ONT). If you are using 3G/4G, insert your 3G/4G USB modem (with an active SIM card) into the 3G USB slot on the side of the NF3ADV.

  • Page 5: Connecting The Cables

    Connecting the cables Connect the supplied RJ-45 Ethernet cable from one of the yellow Ethernet Ports on the back of the device to your computer. Connect the power adapter and press the on/off button OPTIONAL Connect an RJ-11 cable from the telephone port on the back of your device to a telephone handset to enable use with a VoIP service.

  • Page 6: Login To The Web Interface

    Login to the web interface After establishing a wired connection, open your Web browser and type http://192.168.1.1 into the address bar at the top of the web browser window and press Enter. Enter “admin” into both the username and password fields and click “Login”. The “First-Time Setup Wizard”...
  • Page 7 ADSL Select the ADSL connection type and enter the username/password as supplied by your ADSL provider. Unless you have specific VPI and VCI values, keep these as the default 8/35. To enable a backup connection via 3G/4G, tick the checkbox and enter the appropriate 3G/4G connection information as supplied by your 3G/4G provider (see the instructions on Step 5 of this quick start guide).
  • Page 8 3G/4G For 3G/4G users, select your country of residence and your service provider from the dropdown boxes and the network name (APN) will automatically appear. Enter your username/password and SIM PIN if required as supplied by your 3G/4G provider. Not all 3G/4G providers require a username and password or a SIM PIN Click “Next”...
  • Page 9 For Ethernet WAN users, select the WAN type and enter the username/password as supplied by your Internet Service Provider. To enable a backup connection via 3G/4G, tick the checkbox and enter the appropriate 3G/4G connection information as supplied by your 3G/4G provider (see the instructions on Step 5 of this quick start guide).
  • Page 10 Completing the wizard 2.4GHz WiFi Select to enable or disable your wireless network (Wireless on/off), show or hide your wireless network (SSID Broadcast) or change the wireless network name (SSID Broadcast Name). After making the appropriate changes, click “Next”. (If you do not want to change the default settings, simply click “Next”) Select the wireless security type and wireless security key you would like to use on your wireless network and click “Next”.
  • Page 11 Enter the username and password you would like to use when logging into the web based user interface. Confirm the new password by entering it a second time in the “Retype Password” field and click “Next”. (If you do not want to change from the default settings of admin/admin, simply click “Next”) Review your selected settings and click “Finish”.

  • Page 12: Connecting Via Wifi

    Connecting via WiFi 2.4 GHz 5 GHz Laptop Gaming Console IPTV Smart Phone Ensure WiFi is enabled on your device (computer/laptop/smart phone/gaming console). Scan for wireless networks in your area and connect to the network name that was entered when completing the setup wizard When prompted for your wireless security password, enter the wireless security key that was entered when completing the setup wizard NOTE: If the wireless network name and wireless security key were not entered in the setup...
  • Page 13 DECT handsets can be registered to the router to enable them to utilise the configured VoIP service. To do this, click the DECT button on the side of the NF3ADV and then set your DECT handset to register with a base station...

  • Page 14: Usb Storage

    USB Storage USB storage device 1. If a USB mass storage device is plugged into the File Storage USB port, it will be auto detected 2. You can access the files on the storage device from any computer connected to the router 3.
