POINT
The diagnosis message is set to collect all categorized messages after turning ON the power.
Change the history operation mode if you need.
Managed object (h)
10F3:05 Flags Bit1: Disable info messages
10F3:05 Flags Bit2: Disable warning messages
10F3:05 Flags Bit3: Disable error messages
10F3:05 Flags Bit4: Mode selection for diagnosis
history handling

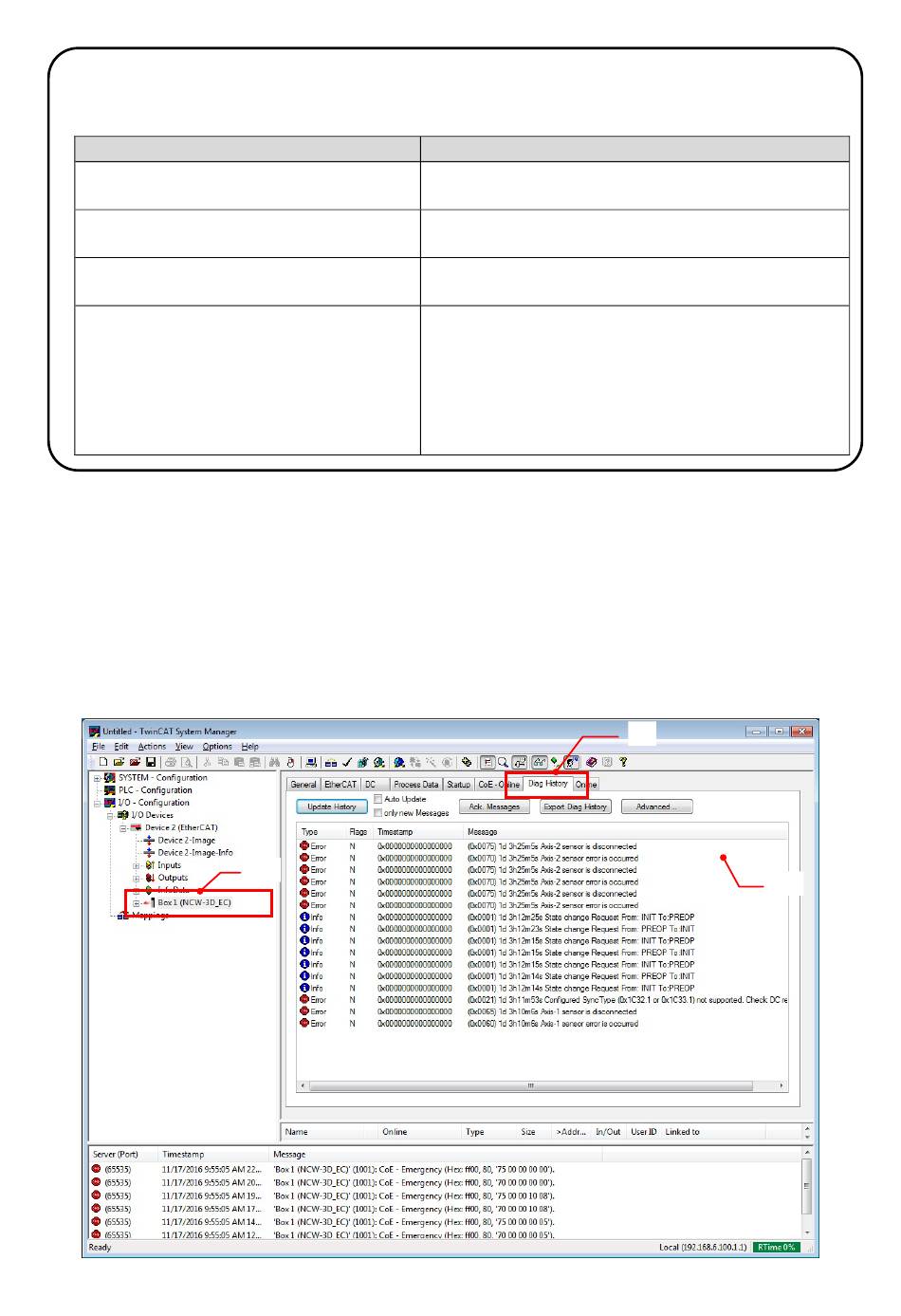

●Checking procedure of the diagnosis message
(1) Select "Box1 (NCW-3D_EC)".
(2) Select "Diag History" tab.
(3) The diagnosis message can be checked on the message window.
The head of each message is added the cumulative energization time of NCW-3DNEC.
(1)
0: Permission for collecting Info messages
1: Prohibition for collecting Info messages
0: Permission for collecting Warning messages
1: Prohibition for collecting Warning message
0: Permission for collecting Error messages
1: Prohibition for collecting Error messages
0: Overwriting mode
Keeps overwriting if the message isn't acknowledged.
1: Acknowledging mode
It won't be overwritten if the message isn't acknowledged.
If the history buffers (16pics) are full with unacknowledged
messages, new messages will be discarded.
