NSD ABSOCODER NCW-3DNECMP Specifications & Instruction Manual page 19

6-2. ABSOCODER Sensor Installation Conditions and Precautions
The ABSOCODER sensor installation procedures and precautions are described in this section.

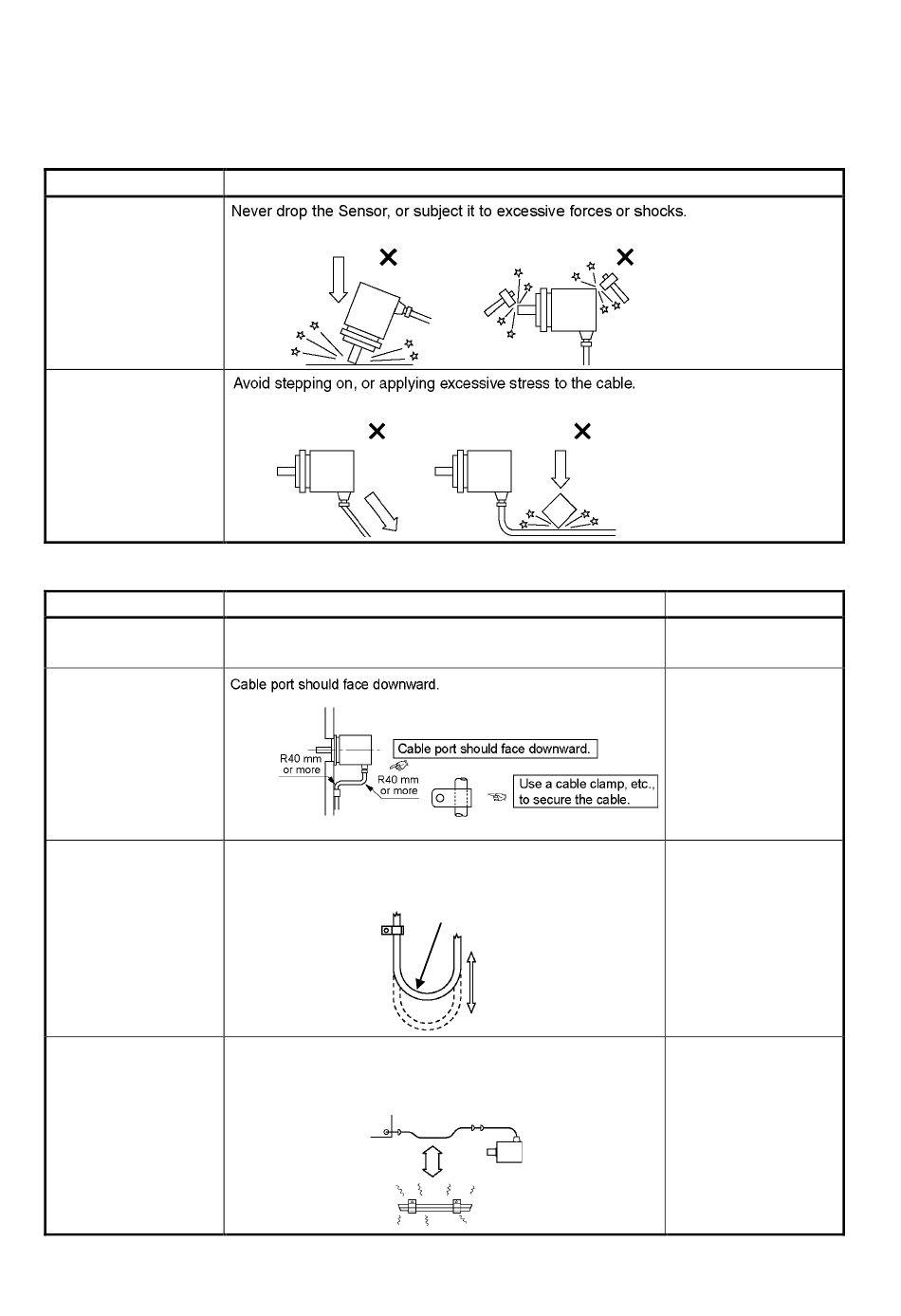

● Handling of Turn-type ABSOCODER Sensor
Item
(1) Main unit
(2) Cable
● Mounting of Turn-type ABSOCODER Sensor
Item
(1) Mounting
(2) Cable port
(3) Cable
(4) Wiring
For details regarding mounting dimensions, refer to each
ABSOCODER sensor dimensions.
The bend radius for movable parts should never be less
than 75 mm(φ150) (robotic cable).
The sensor cable should be located at least 300mm away
from power lines and other lines which generate a high level
of electrical noise.
300mm
or more
Explanation
Explanation
R75mm or more
12
Precaution
Do not use the standard
cable for movable parts.
(Use robotic cable.)
