4. Registering to the network
Connect NCW-3DNEC to EtherCAT by a LAN cable, and turn ON the EtherCAT system.
For registering the network, open the setting contents which were saved in "9-2-1. 3 or 9-2-2. 3", and then do
following procedures.

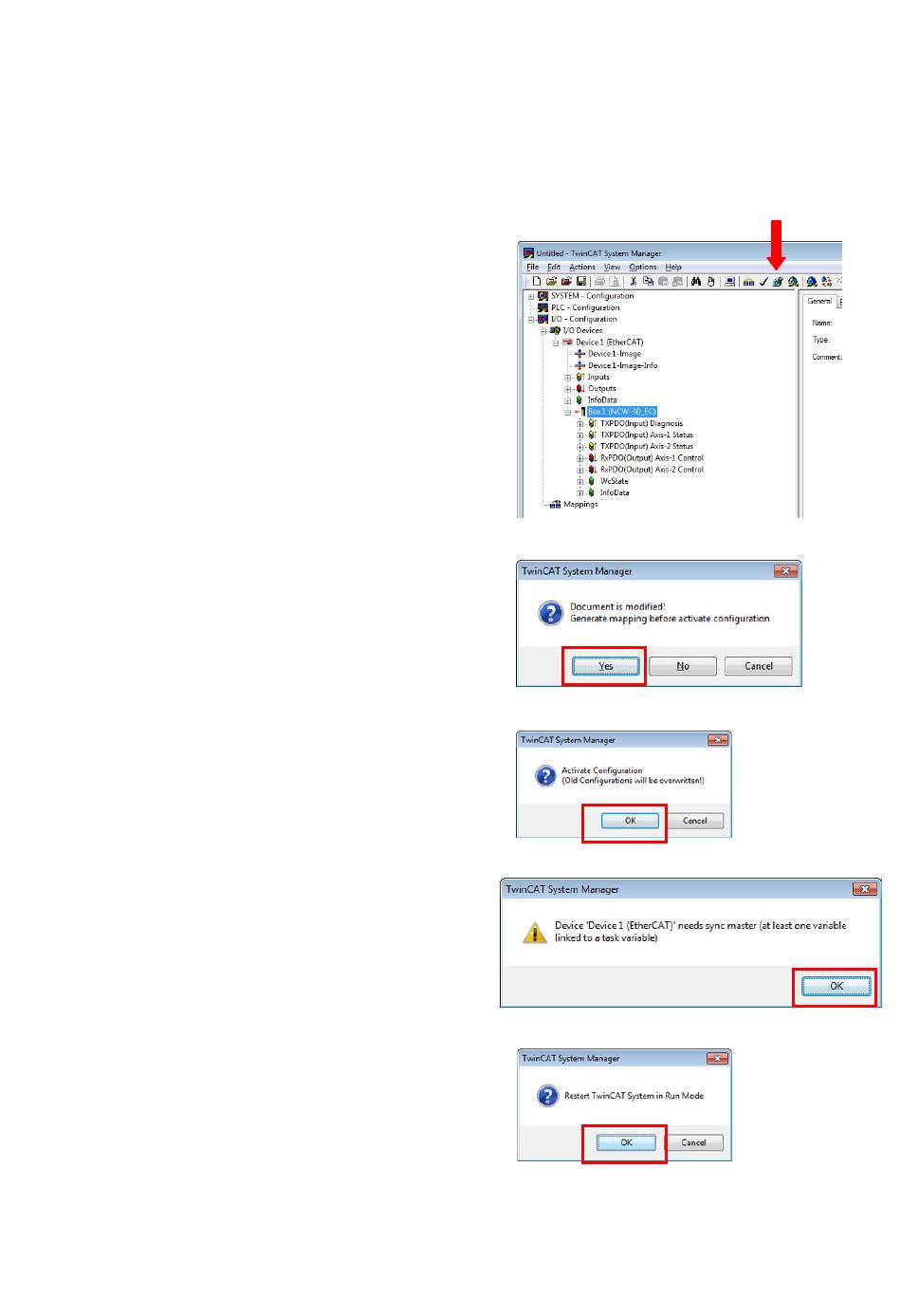

Click "Activate configuration" icon indicated in red
arrow.
Click "Yes" to "Generate mapping before activate
configuration".
Click "OK" to "Activate configuration".
Click "OK" for "Device 'Device 1 (EtherCAT)' needs
sync mater".
The preparation for connecting to the network
is completed. (But, it is not connected yet.)
