NSD ABSOCODER NCW-3DNECMP Specifications & Instruction Manual page 41

9-3-2. Parameters setting procedure
Indicates the setting procedures

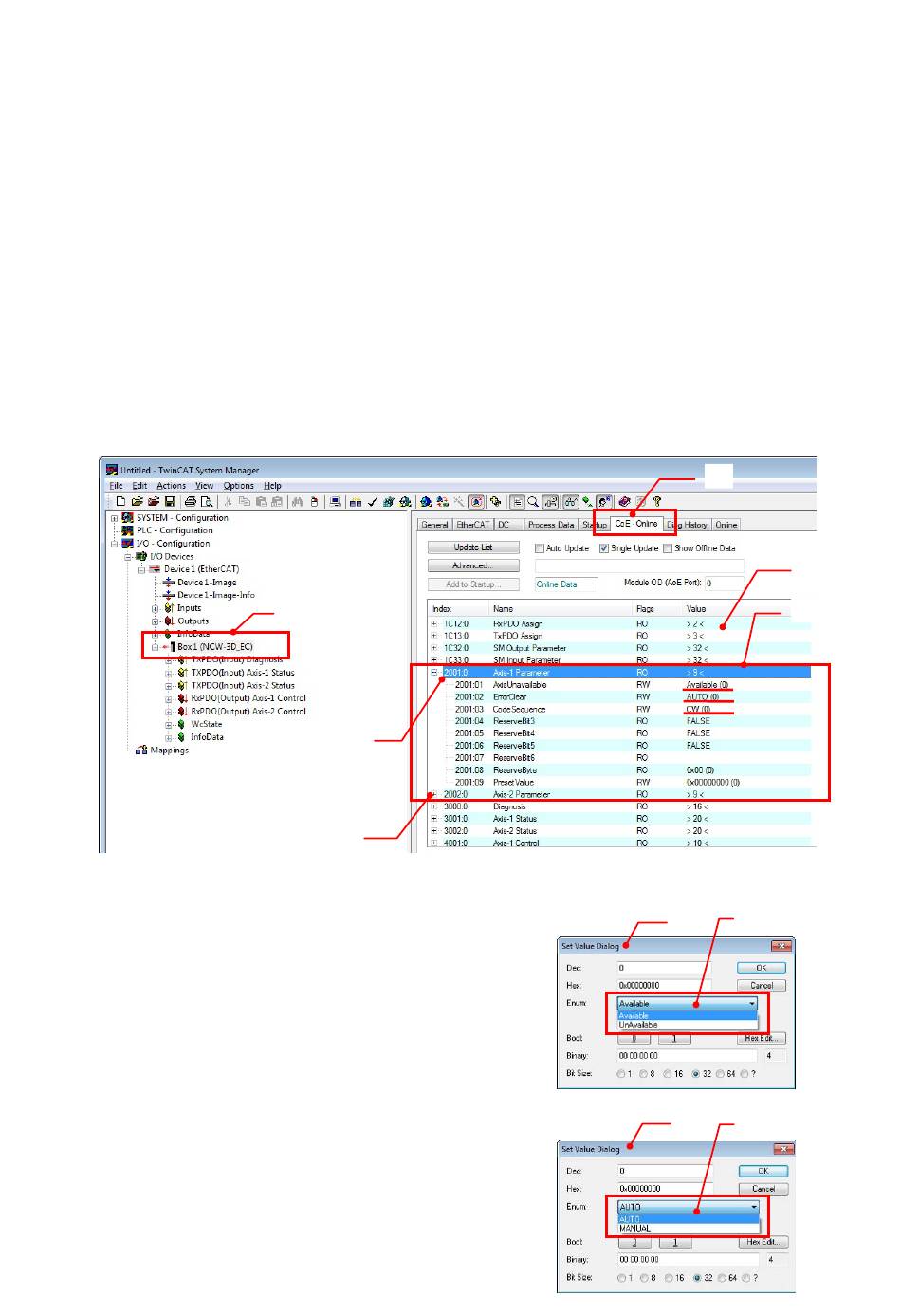

(1) Select "Box1 (NCW-3D_EC)".
(2) Select "CoE-Online" tab.
(3) "Object Dictionary" is displayed.
(4) Set the parameter.
"Index 2001:0 (Axis-1 Parameter)" is a parameter for axis-1.
"Index 2002:0 (Axis-2 Parameter)" is a parameter for axis-2.
Above parameters can designate following items.
- Axis Unavailable
- Error Clear
- Code Sequence (Position Data Increase Direction)
The current settings are displayed on the "Value".
Go to next procedure if you want to change "Value".
(5) Double-click "Axis Unavailable". "Set Value Dialog"
is displayed.
Select the setting contents, and click "OK".
(6) Double-click "Error Clear". "Set Value Dialog" is displayed.
Select the setting contents, and click "OK".
(1)
Parameter for axis-1
Parameter for axis-2
34
(2)
(3)
(4)
Setting contents
(5)
(6) Setting contents
