9-4. Preset (Current Position setting)
The converter's position data is changed into machine's current position by using the Preset function.
(Current position setting)
"Preset" is a function that can change the position data into a desired value (Preset value) which was designated
in advance.
The settings are executed for each axis. Following data is changed into desired value (Preset value) after
executing the Preset.
- Position data of axis-1: Position of the Axis-1 Status
- Position data of axis-2: Position of the Axis-2 Status
9-4-1. Preset setting procedures
Indicates the Preset setting procedures.

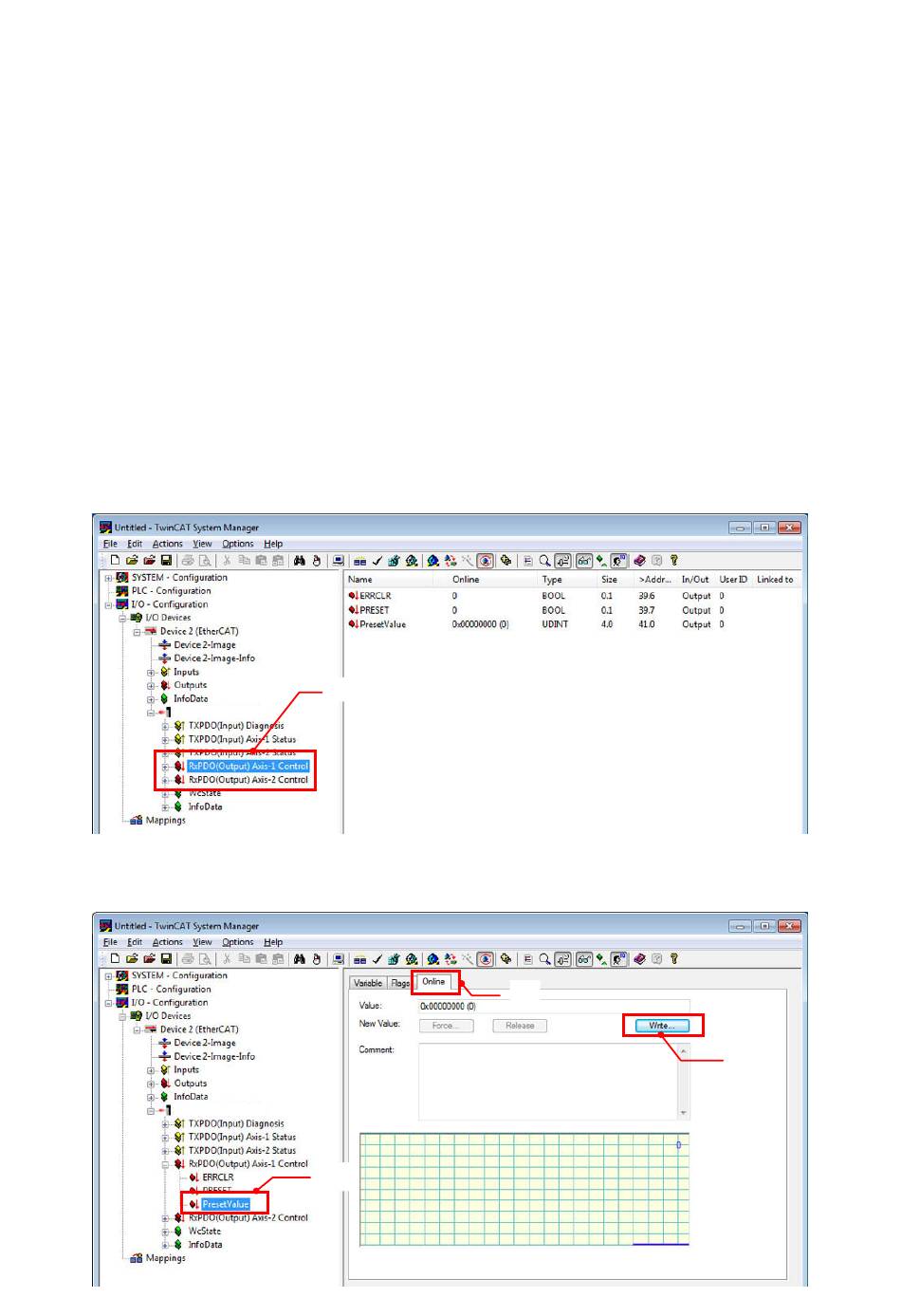

(1) Select following items.
Click "+" of "RxPDO (Output) Axis-1 Control" when presetting axis-1.
Click "+" of "RxPDO (Output) Axis-2 Control" when presetting axis-2.
Box 1 (NCW-3D_EC)
(2) Click "Preset Value", and select "Online" tab.
Box 1 (NCW-3D_EC)
(1)
(2)
36
(2)
(3)
