9-2-2. Manual configuration in the offline
Indicate procedures that NCW-3DNEC is registered to EtherCAT network by using the manual configuration.
This procedure uses the EtherCAT master only, and the setting file (project) for registering network is created in
advance. Connect NCW-3DNEC and EtherCAT master by a LAN cable.

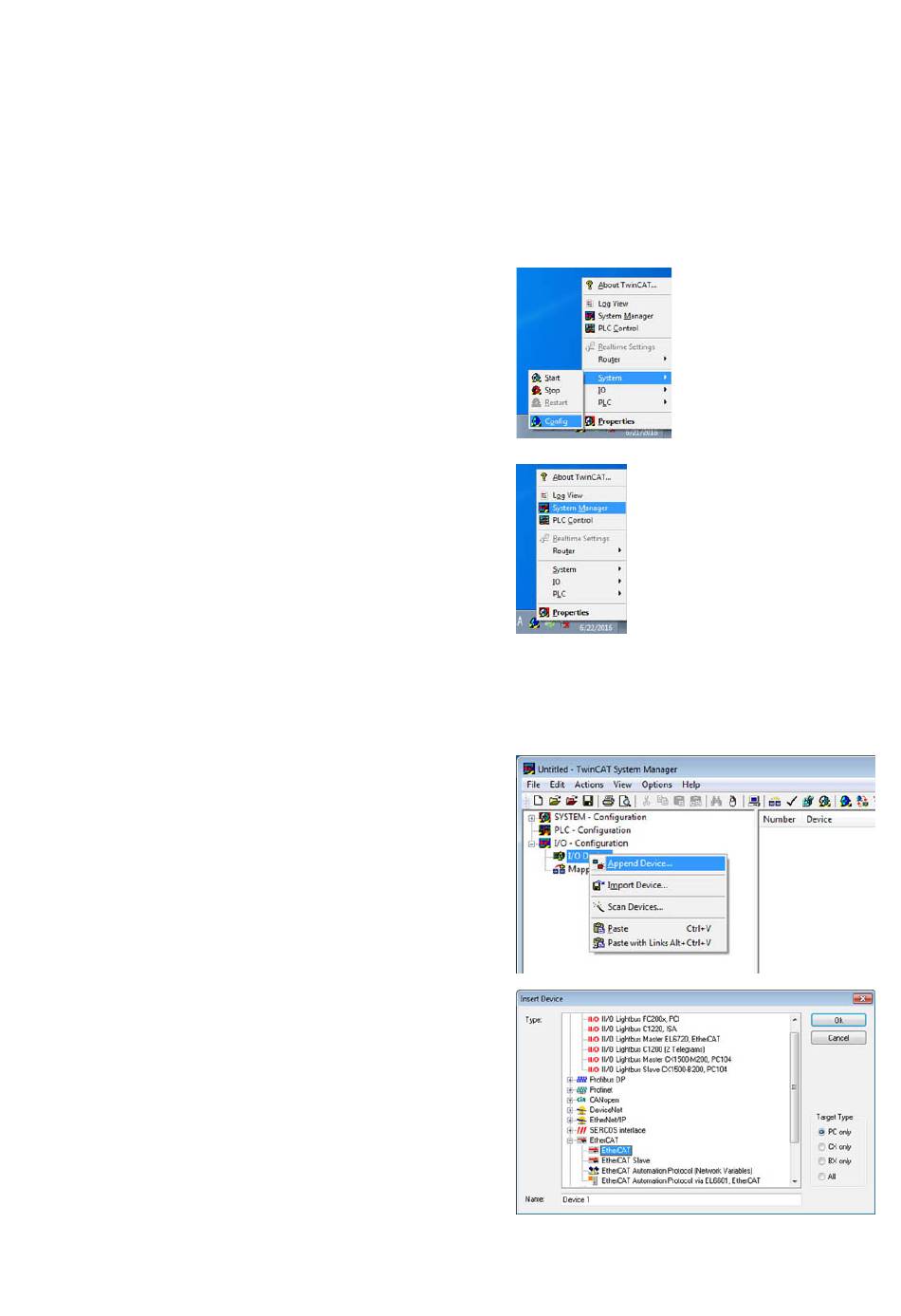

1. Start TwinCAT2 System Manager
Right-click an icon on the task bar.
From the "System" pull-down menu, click "Config".
Right-click an icon on the task bar again.
From the pulldown menu, click "System Manager".
TwinCAT2 System Manager will start operating.
2. Create a project
From the File menu, select "NEW" and create a
new project.
From "I/O-Configuration" tree, right-click "I/O Device",
and then select "Append Device".
Select "EtherCAT" from the EtherCAT tree, and then
click "OK".
