9-3. Set Parameter of NCW-3DNEC
After registering NCW-3DNEC to the network, set the parameters.
9-3-1. Parameter list

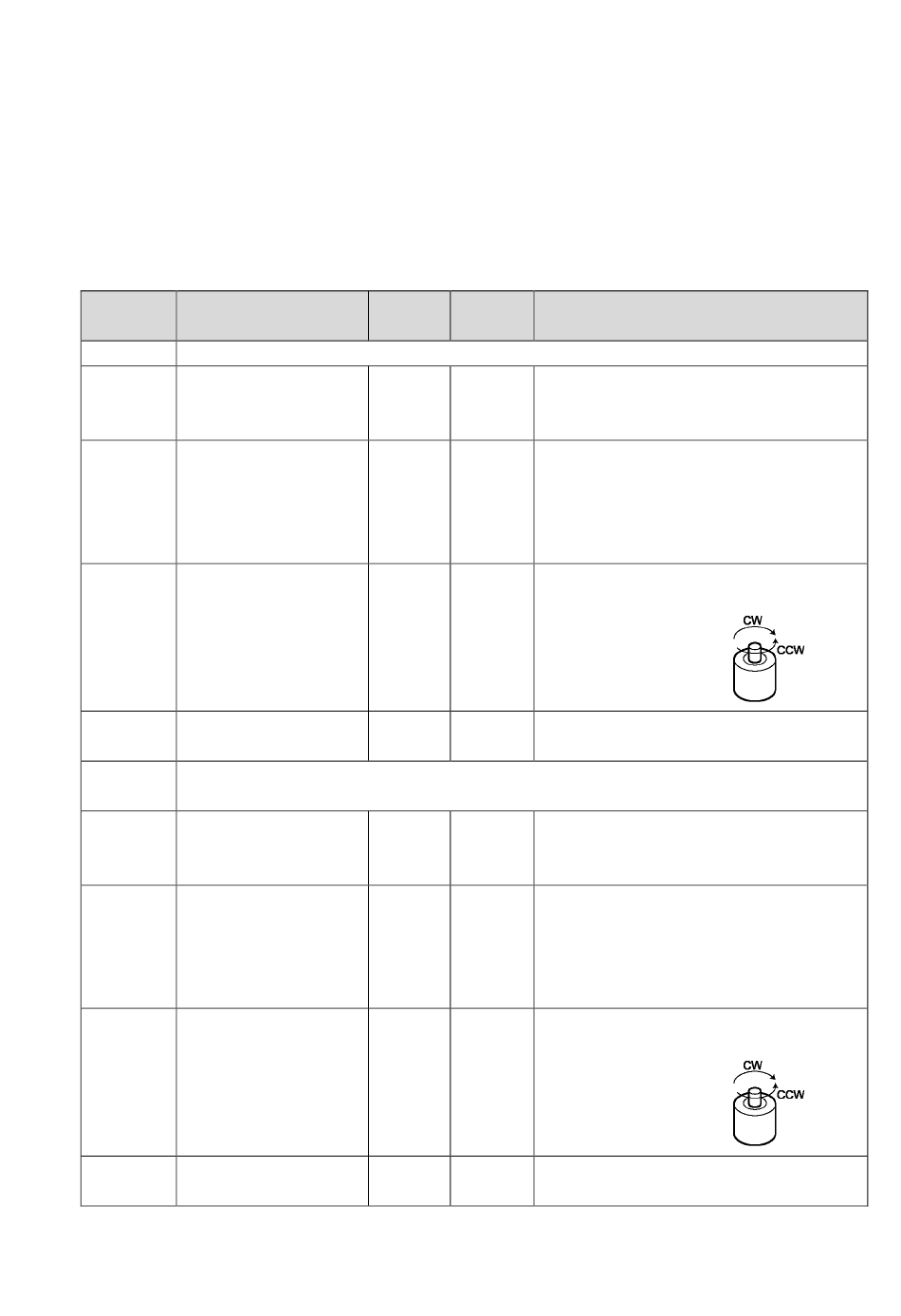

The parameter list of NCW-3DNEC is indicated below.
Set the parameter for two axes.
Index(h)
2001:0 Axis-1 Parameter
2001:01 AxisUnavailable
2001:02 Error Clear
2001:03 Code Sequence
(Position Data Increase
Direction)
2001:09 Preset Value
2002:0 Axis-2 Parameter
2002:01 AxisUnavailable
2002:02 Error Clear
2002:03 Code Sequence
(Position Data Increase
Direction)
2002:09 Preset Value
*1: A value set to "Preset Value" of the OUTPUT process data is read out during the process data communication
(I/O communication). A value preset previously is read out if the process data communication isn't executed.
Parameter name
*1 UINT32
*1 UINT32
Data
Access
Type
BIT1 RW Specify "Available" or "Unavailable" for the axis-1.
0: Available (Default)
1: Unavailable
BIT1 RW Specify "Error recovery behavior" for the axis-1.
0: Auto clearing (Default)
Automatically clears the error when removing
the cause of the error.
1: Manual clearing
BIT1 RW Specify the axis-1 ABSOCODER sensor rotation
direction in which the position data increases.
0: CW (Default)
1: CCW
RW Specify "Preset Value" for the axis-1.
BIT1 RW Specify "Available" or "Unavailable" for the axis-2.
0: Available (Default)
1: Unavailable
BIT1 RW Specify "Error recovery behavior" for the axis-2.
0: Auto clearing (Default)
Automatically clears the error when removing
the cause of the error.
1: Manual clearing
BIT1 RW Specify the axis-2 ABSOCODER sensor rotation
direction in which the position data increases.
0: CW (Default)
1: CCW
RW Specify "Preset Value" for the axis-2.
33
Access sign RW: Read/Write
Description
