Layout and function

8015558/1O6S/V1-9/2024-08 | SICK
Subject to change without notice
Layout
2
3
4

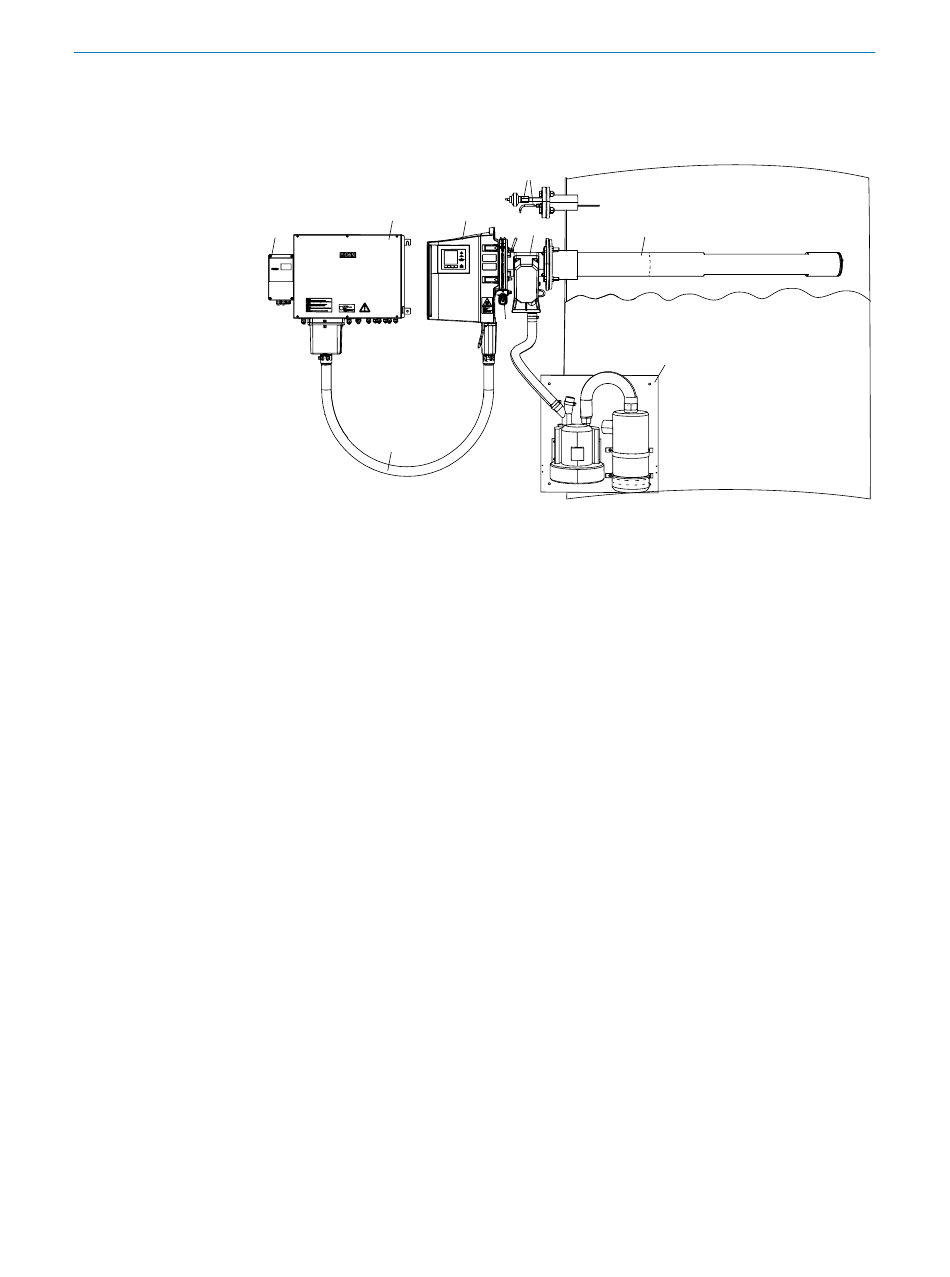

Figure 6: Components of the GM32 Ex 3G version
Sender/receiver unit GM32-xxxxxxEX3G (SR-unit)
1
Connection unit GM32- A2xxEX3G
2
Control unit FS850S Ex p
3
Metallic connecting hose between sender/receiver unit and connection unit
4
Purge valve SVP3 G 3/8"-300L Ex p
5
GMP measuring probe (without electronics)
6
Temperature and pressure measurement
7
Purge air supply
8
Function
•
The device serves for continuous measurement of gas concentrations in industrial
plants
• The device is an in-situ measuring system which means measuring is done directly
in the gas carrying duct
• Measuring components: SO
reference variables temperature and pressure
• Measuring principle: Differential Optical Absorption Spectroscopy (DOAS)
• To maintain measuring reliability, a permanent air flow (optics purge air) protects
and keeps the optics free from soot and dust particles as well as condensate and
moisture condensation
• Ignition protection type "pressurized enclosure" is applicable when using the
GM32 Ex in potentially explosive atmospheres. All relevant enclosures of the
sender/receiver unit and connection unit connected together via a pressure-proof
metal hose are purged with a protective gas. The protective gas can be air suc‐
tioned in from the non-potentially explosive atmosphere or an inert gas.
7
1
6
6
5
, NO, NO and NH (device specific) as well as the
2 2 3
