8
OPERATION
8.2.3

Setting the display contrast

8.2.4

Menu tree

Menu level
1.1 Diagnosis
1.1.1 Failure
1.1.2 Maintenance
(request)
1.1.3 Uncertain
1.1.4 Check cycle
1.2 Alignment check
1.3 Adjustments
1.3.1 Alignment adjust
1.3.2 Check cycle
1.3.3 Reference cycle
1.4 IP Configuration
1.4.1 IP
54 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
1. Press the MEAS button for several seconds.
✓
The measuring screen appears first.
✓
Then the menu to set the contrast appears.
Contrast value 41
22 64
.
Back

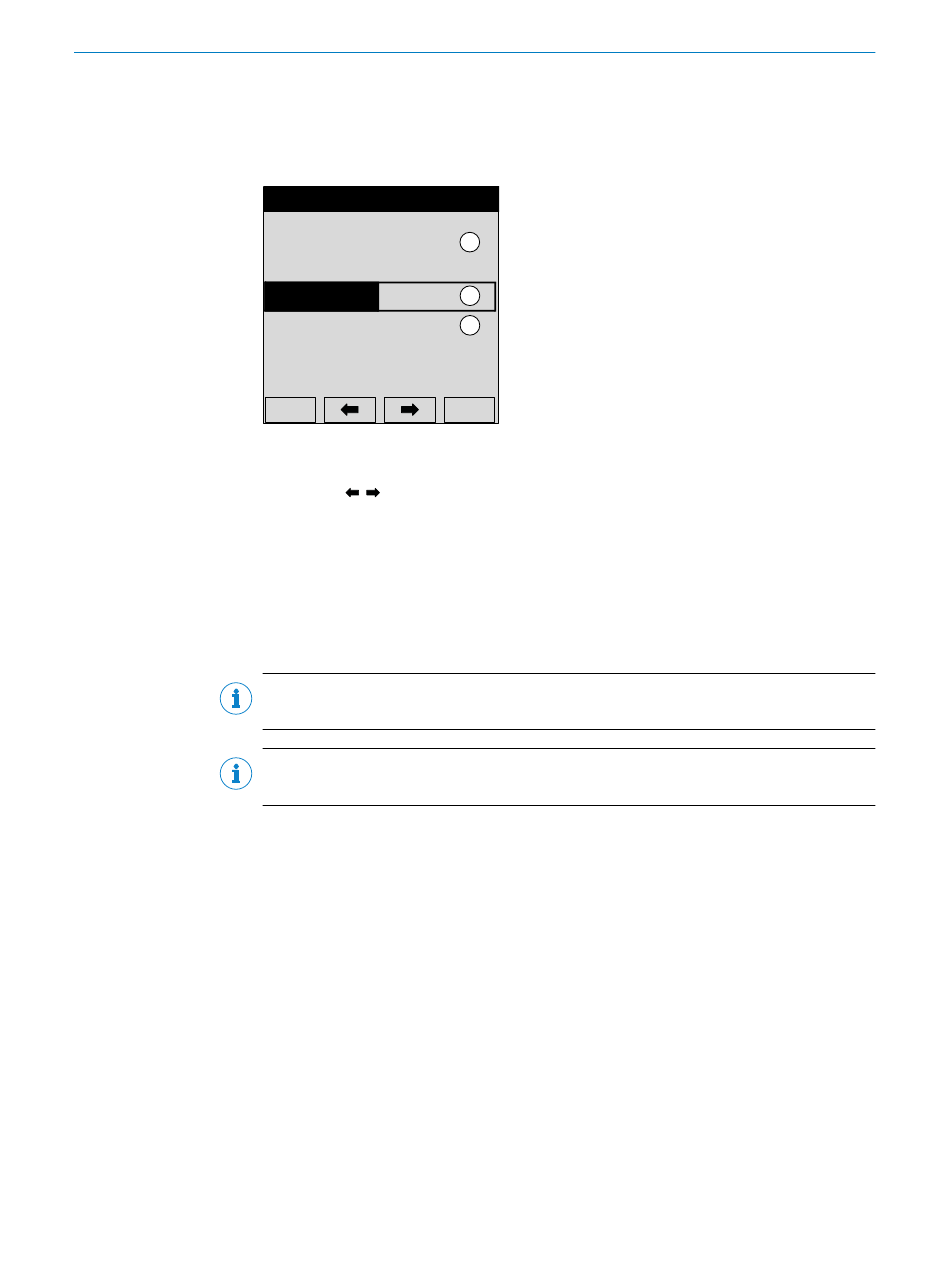

Figure 30: Menu to set the contrast (with
setting example)
2. Select / until the desired setting is reached.
3. Save the new setting with function button "Save".
• The menu tree shown here refers to operation via the operator panel on the "Pro"
device variant.
• Device settings can not be changed with the operator panel.
• No user levels.
NOTE
Changes on the device are possible only via SOPAS ET.
NOTE
Menu texts are shown in English.
Explanation
Diagnosis
Malfunction, see Chapter Diagnosis.
Maintenance request, see Chapter Diagnosis.
See Chapter Diagnosis.
see "Check cycle - results of last check cycle", page
see "Alignment check (option) - automatic optical alignment
check", page
see "Alignment check (option) - automatic optical alignment
check", page
see "Check cycle", page
see "Reference cycle", page
View the IP settings
IP address
1 Current setting
2 Graphic for current setting
1 3 Setting range
2
3
Save
56.
56.
17.
17.
55.
