4

TRANSPORT AND STORAGE

4 Transport and storage
4.1

Transport safety device

22 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
Removing the transport safety device of the sender/receiver unit

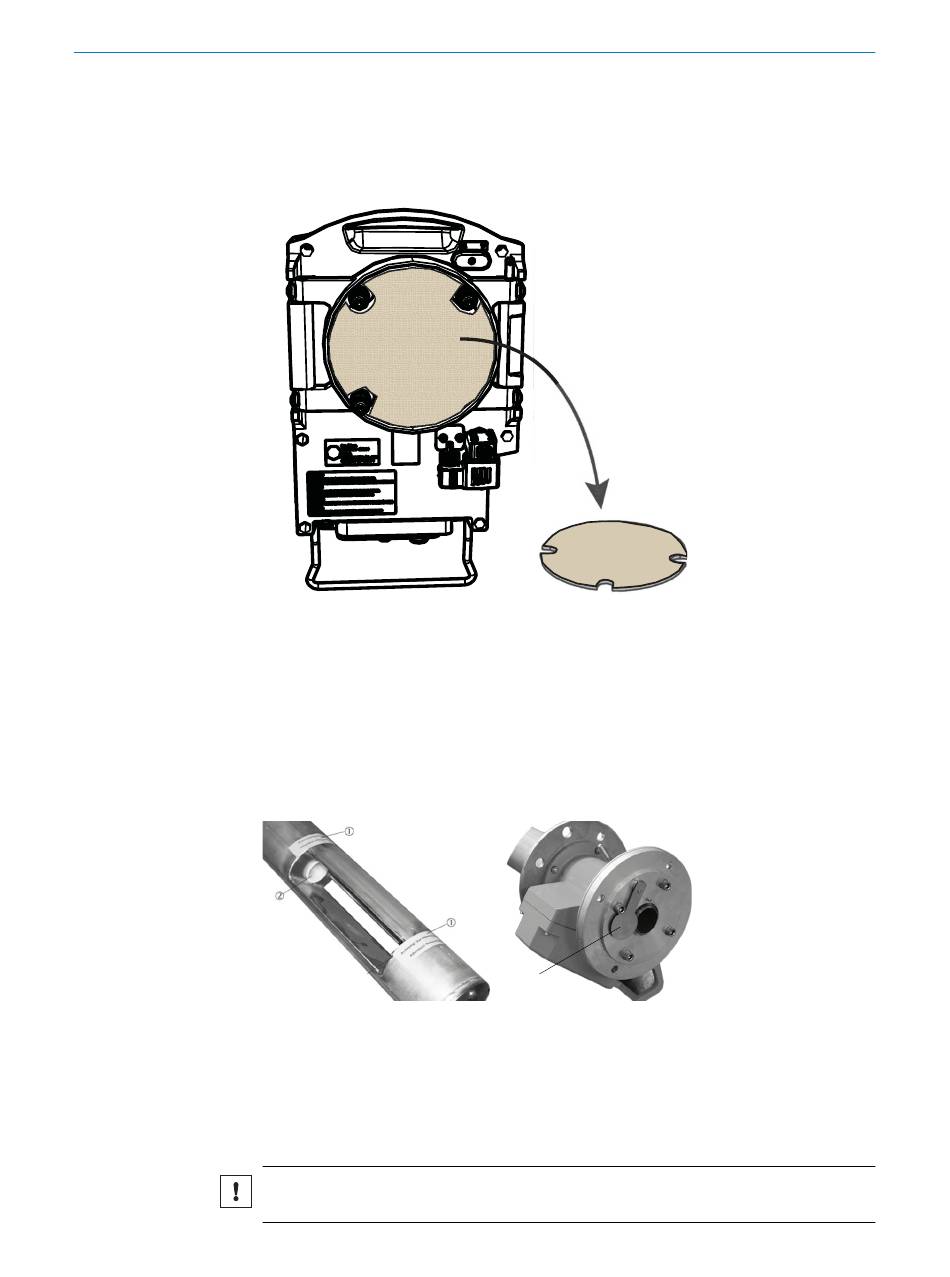

Figure 8: Transport safety device on the SR-unit
Remove the transport safety device of the SR-unit
1
Removing the transport safety device on the SR-unit
• Open the lock and swivel the flange fixture up
• Check the transport safety device for damage
• Remove the transport safety devices
Removing the transport safety device of the measuring probe
Figure 9: Transport safety device on the GMP measuring probe
Protective sticker
1
Plugs
2
Locking device of GMP probe
3
1 Remove the protective stickers
2 Take out the plugs
NOTICE
Store the transport safety devices well protected from humidity and contamination
1
3
