TECHNICAL DATA

12.6

Dimension drawings: Sender/receiver unit Ex version

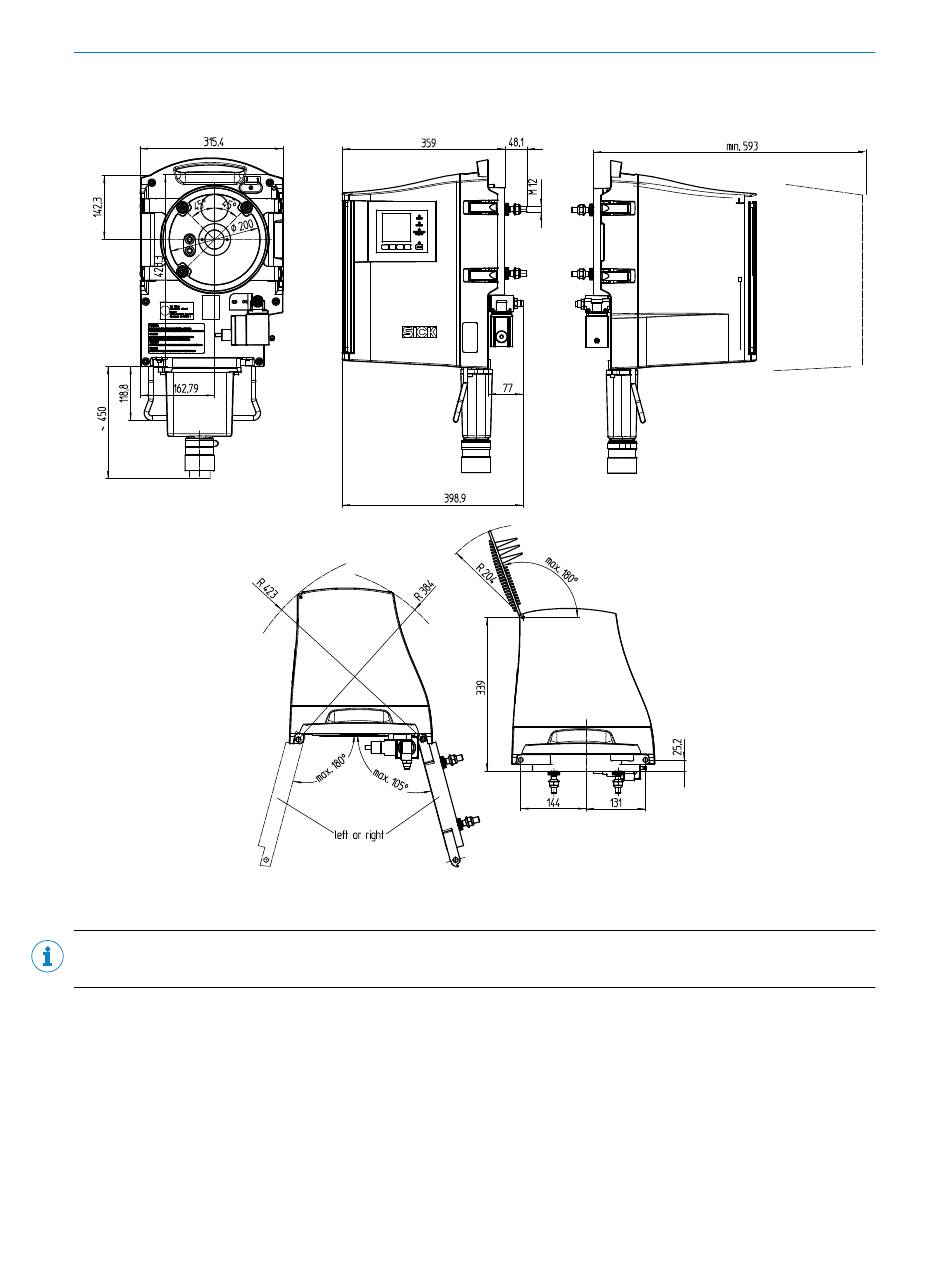

Figure 41: GM32 Ex sender/receiver unit (all specifications in mm)

NOTE

The housing of the sender/receiver unit can be swiveled to the left or right of the device flange (max. 180°/105°).

8015558/1O6S/V1-9/2024-08 | SICK

O P E R A T I N G I N S T R U C T I O N S | GM32 Ex

Subject to change without notice
