Replacing The Activated Charcoal Sachet - SICK GM32 Ex Operating Instructions Manual

9
MAINTENANCE
9.9

Replacing the activated charcoal sachet

66 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
1

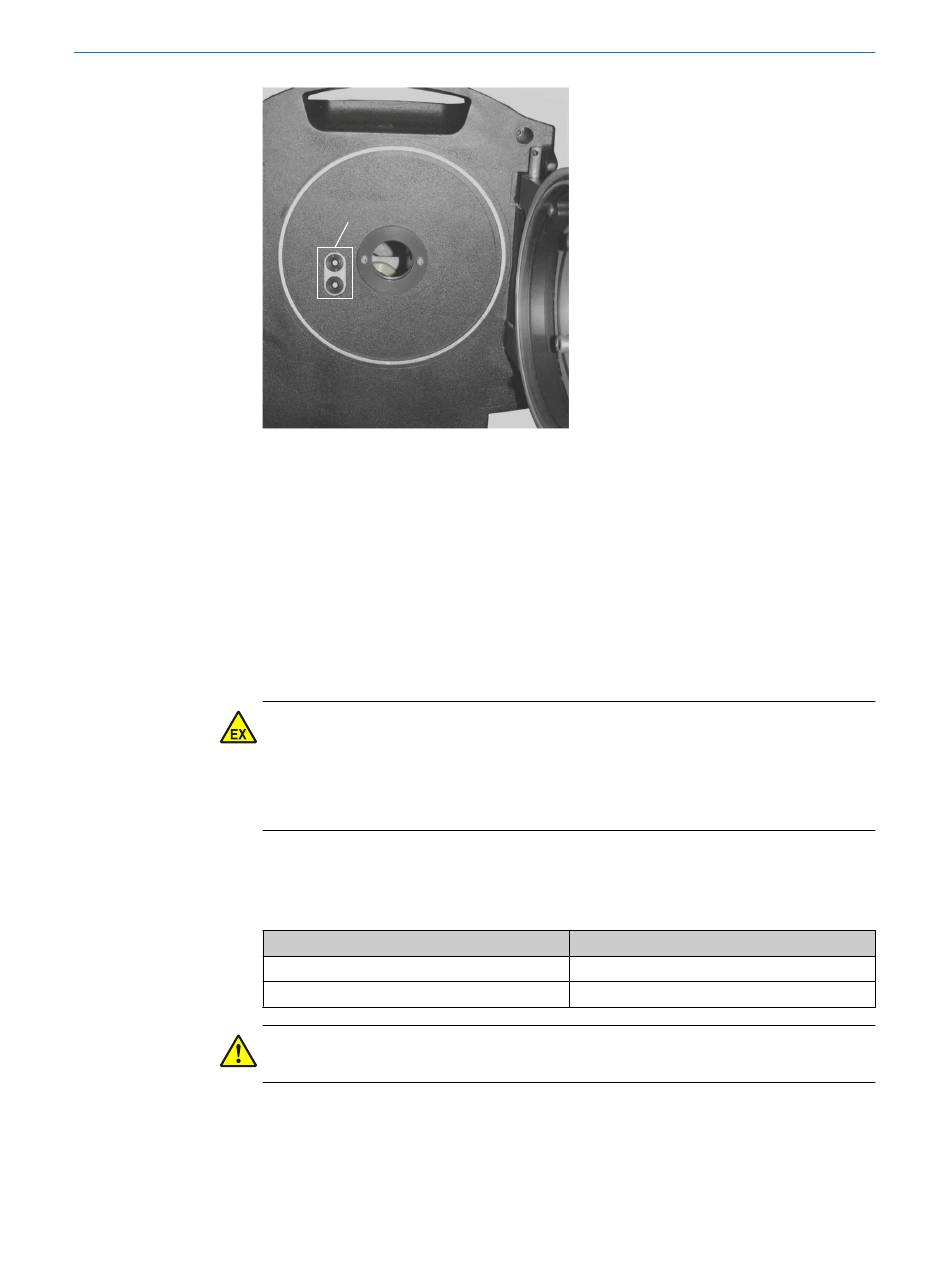

Figure 35: Desiccant cartridges
Two desiccant cartridges
1
1 Swiveling the SR-unit out
2 Check the condition of the desiccant cartridge:
– Light blue: Desiccant cartridge is dry.
– White: Replace the desiccant cartridge.
3 Replacing the desiccant cartridge:
Unscrew the desiccant cartridge.
►
Screw in the new desiccant cartridge.
►
4 Close the SR-unit again.
WARNING
Leakage can revoke zone separation
Zone separation is endangered when the desiccant cartridge is not screwed in tight
after replacement.
Ensure the desiccant cartridge is screwed in tight.
►
5 Set the lever on the measuring probe back to the "Open" position.
Required material
5 mm Allen key
Activated charcoal sachet
CAUTION
The sender/receiver housing may be opened only in a clean environment.
see "Swiveling out and removing the SR-unit", page
Part No.
53023946
63.
8015558/1O6S/V1-9/2024-08 | SICK
Subject to change without notice
