Installing the SR-unit on the device flange

8015558/1O6S/V1-9/2024-08 | SICK
Subject to change without notice
1 Insert the measuring probe with purge air fixture or flange attachment (without
SR-unit) in the duct-side "flange with tube".
2 Screw the measuring probe with purge air fixture or flange attachment tight to the
"flange with tube" (seal and 4 screws).
1 2
5 6

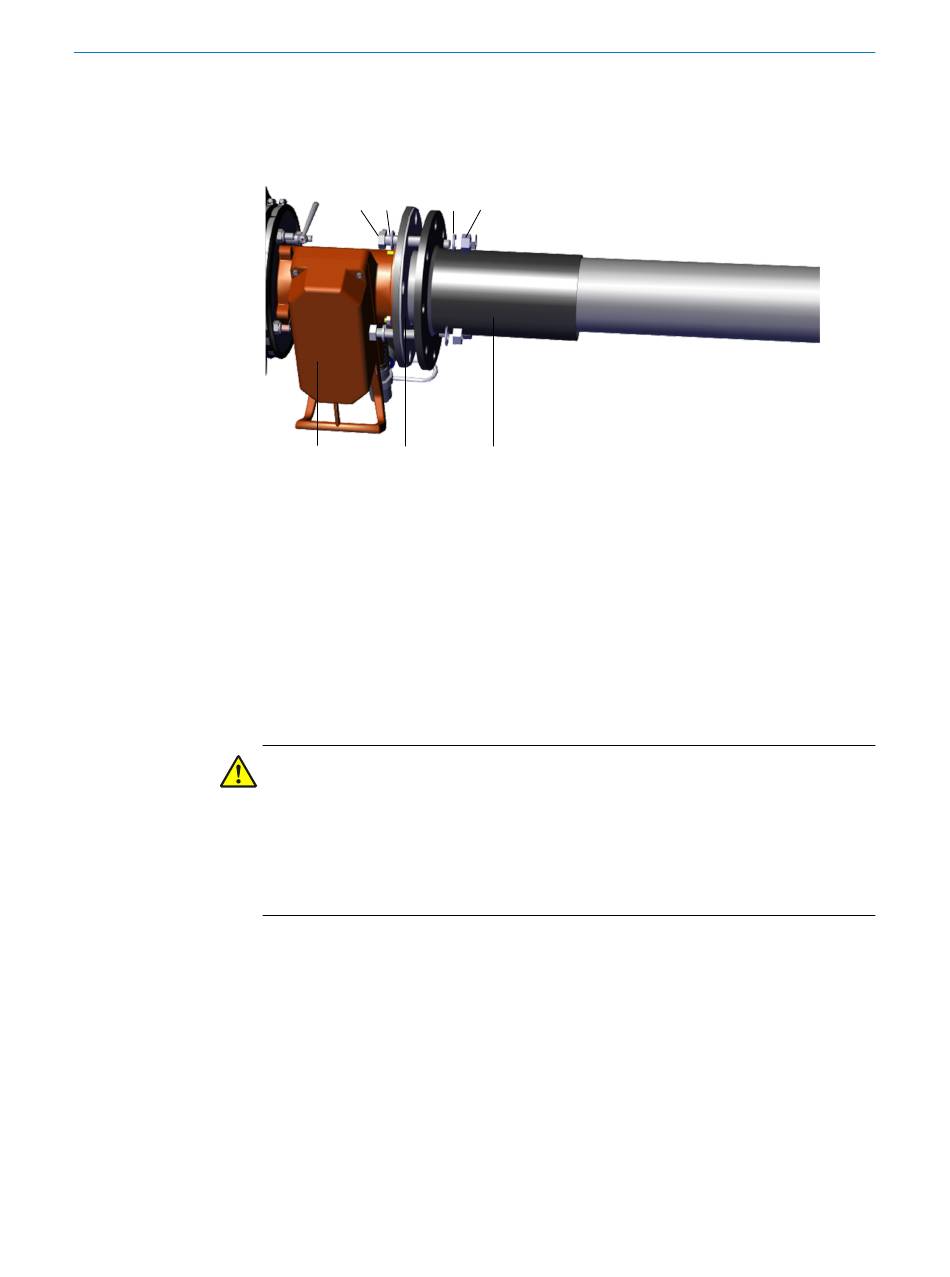

Figure 25: Fitting the measuring probe on the measuring channel
Screw
1
Washer
2
Spring sheet
3
Nut
4
Purge air fixture
5
Seal
6
Flange with tube
7
CAUTION
Damage when device is dropped
The weight and size make it hard to handle the SR-unit with installed measuring probe.
This increases the risk that the measuring device is damaged when dropped.
Install the SR-unit and the measuring probe singly.
►
Carry out assembly work on parts of the device together with another person when
►
necessary.
3 4
7
