SAFETY INFORMATION
2.2

Warnings on the device

2.3

Intended use

12 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
GM32 Ex SR-unit
3
1
2
4

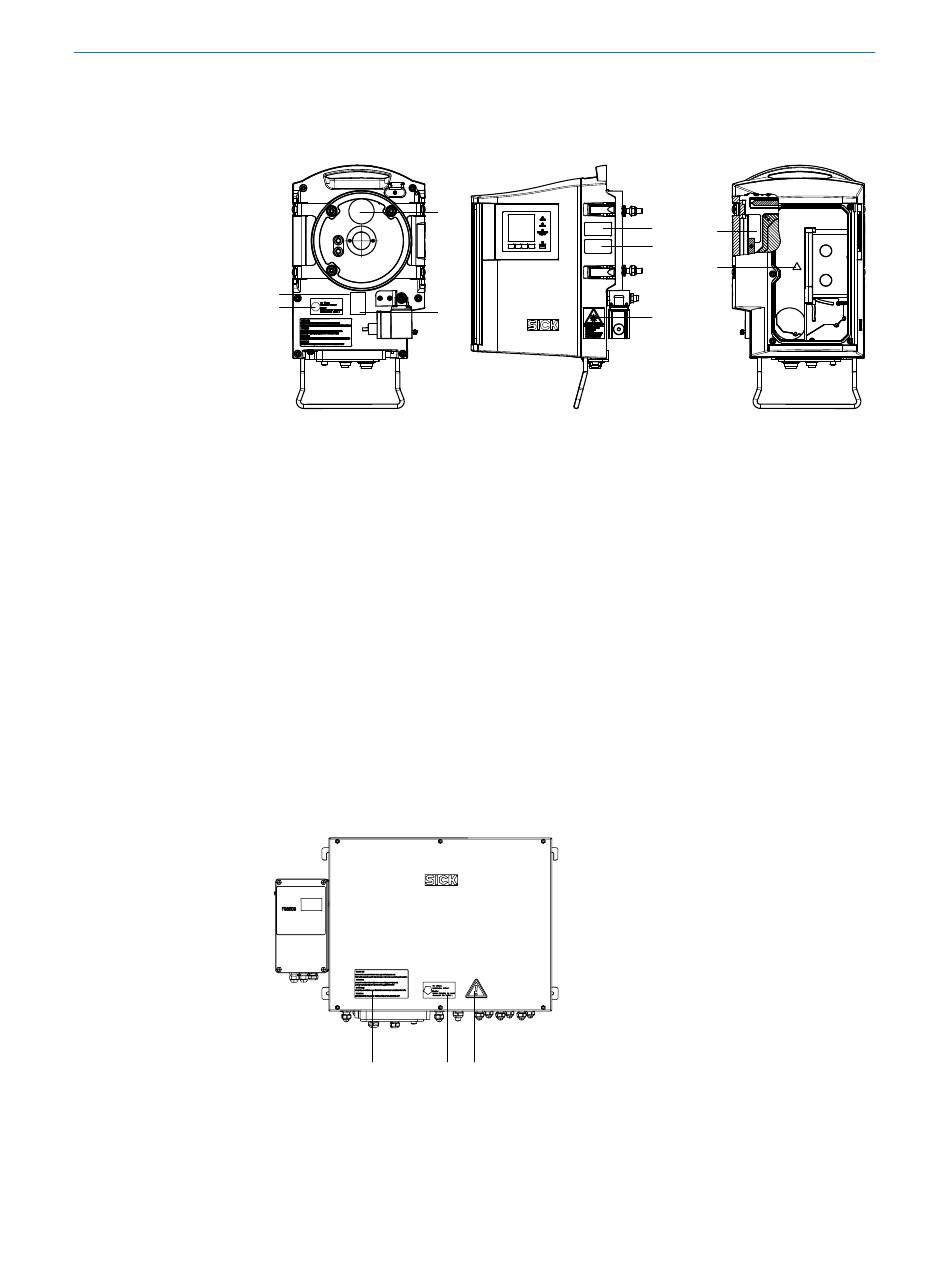

Figure 1: Sender/receiver unit from the front, the side and with the intermediate housing open
Sender/receiver unit, front side
1 Warning sign protective gas:
Protective gas outlet
°
Risk of suffocation when using inert gases
°
20 minutes waiting time before opening the enclosure
°
2 Warning sign: Pull power plug before opening the device
3 Mandatory sign: Wear eye protection
4 Warning sign: Do not disconnect when live
Sender/receiver unit, right side
5 Type plate GM32 Ex 3G
6 Sampling point designation (optional)
7 Danger sign: UV light
Sender/receiver unit, intermediate housing
8 Type plate GM32 Ex 3G
9 Warning sign: Hot surface
GM32 Ex connection unit
1 2 3
Figure 2: GM32 Ex connection unit
5
8
6
9
7
Connection unit for GM32 Ex, front side
1 Warning sign protective gas:
Protective gas outlet
°
Risk of suffocation when using inert
°
gases
20 minutes waiting time before opening
°
the enclosure
2 Warning sign: Pull power plug before opening
the device
3 General warning sign: Warning of a danger
area
