12
TECHNICAL DATA
12.9
Dimension drawing, flange with tube, DN125
12.10
Dimension drawing, weatherproof cover, sender/receiver unit
12.11
Technical data for pressurized enclosure system
12.11.1
Technical data protective gas
90
O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
3
8
14
240 / 500 / 1.000

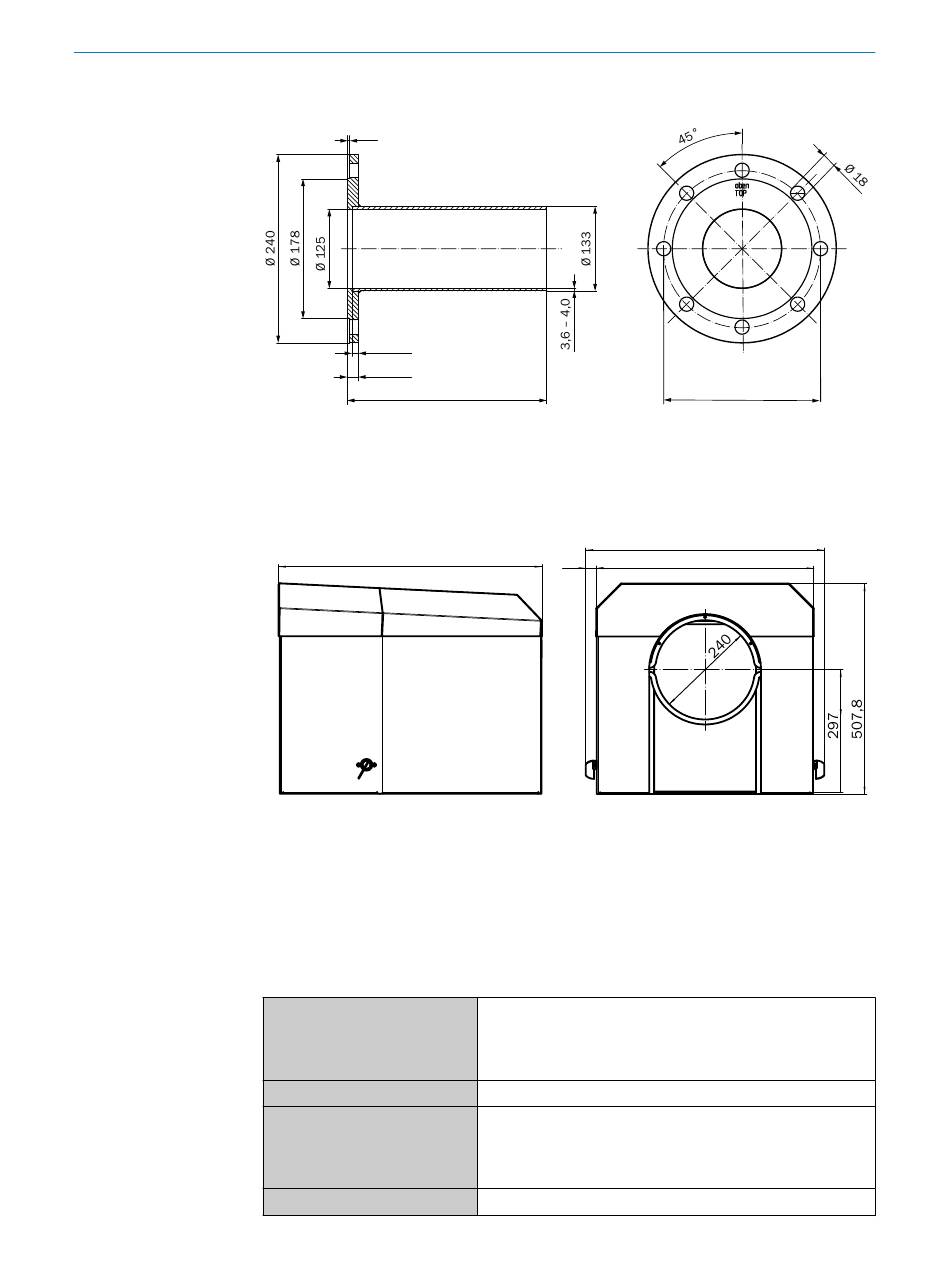

Figure 44: Flange with tube, DN125 (dimensions in mm)
Weatherproof cover for sender/receiver unit
636,4
Figure 45: Weatherproof cover for sender/receiver unit (all specifications in mm)
Protective gas
Table 20: Technical data protective gas
Protective gas
Connections
•
Inlet
•
Outlet
25,2
Compressed air, class 533 according to ISO 8573-1
Solid matter 40 µm (class 1)
Pressure dew point ≤ 20 °C (class 3)
Oil quality ≤ 0.01 mg/m3 (class 1)
•
Thread G 3/8"
or
•
Hose connection for 8 mm diameter
Thread G 1"
Ø 200
576,3
525,8
8015558/1O6S/V1-9/2024-08 | SICK
Subject to change without notice
