8.2.4.5

Maintenance mode - set Maintenance mode

58 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex

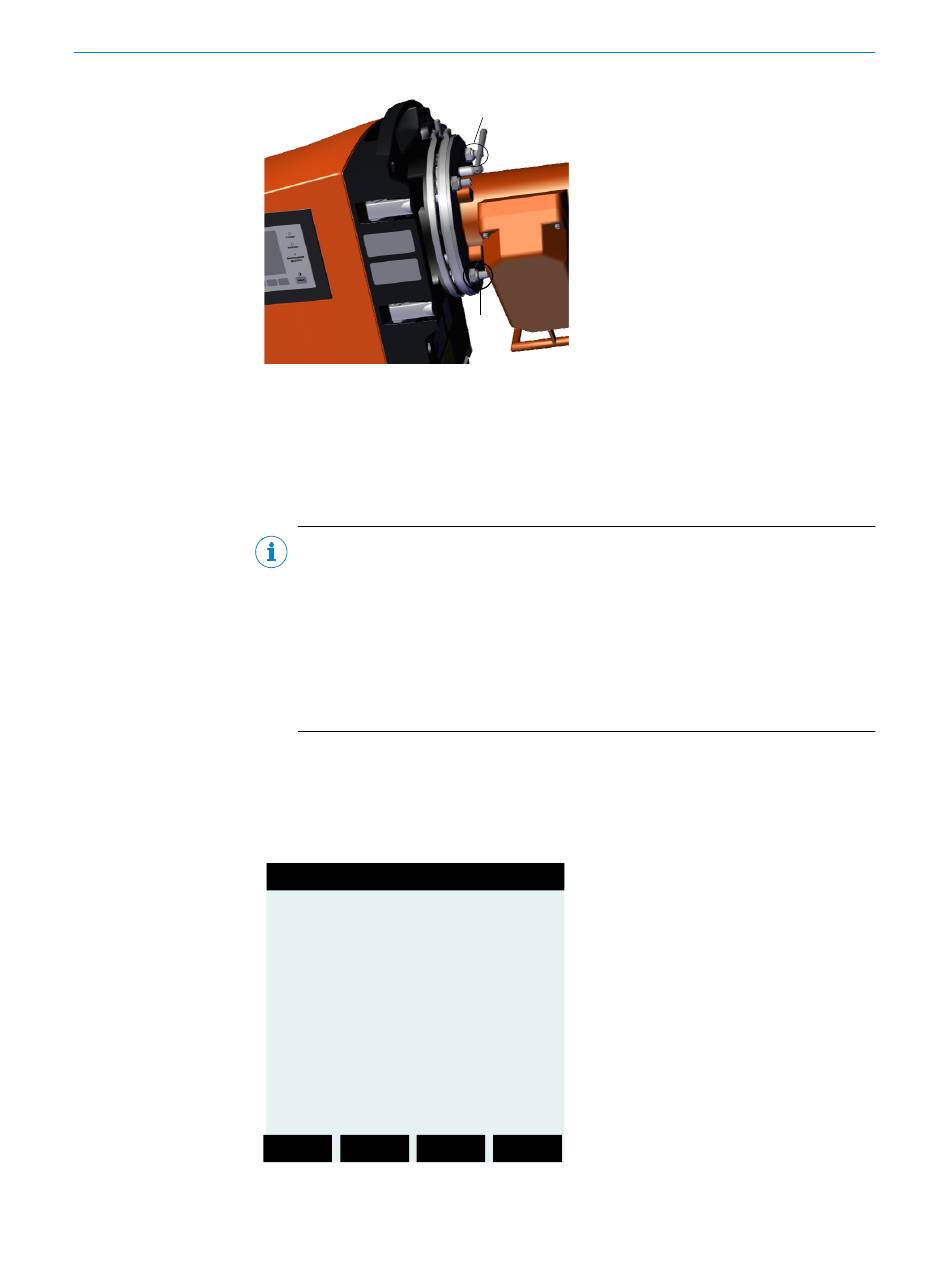

Figure 33: Device flange align
Optical alignment, horizontal
1
Optical alignment, vertical
2
3 The values for the light energy V1 .. V4 must be in the range 250 ... 500 and
approximately have the same size.
NOTE
If you cannot see a focal point or adjustment is not possible, check
that the gap between the device flange and the purge air fixture is set
►
correctly, see "Installing the device flange on the measuring probe", page 44
that the lever of the GMP measuring probe is set to "open",
►
SR-unit on the device flange", page 47
for dust or moisture in gas duct
►
contamination on the window,
►
the function of the sender lamp,
►
Operating mode "Maintenance" is signaled via this menu. Measurement is stopped, the
value measured last is held.
Maintenance
Maintenance mode activ
*******
Back
1
2
see "Cleaning the window", page 65
see "Replacing the sender lamp", page 67
MAINTENANCE
REQUEST
see "Installing the
