Measuring
Alignment
A: 858
B: 818
1
2
C: 760
D: 728
X: -0.011
3
Y: 0.016
/Menü/Align
Back

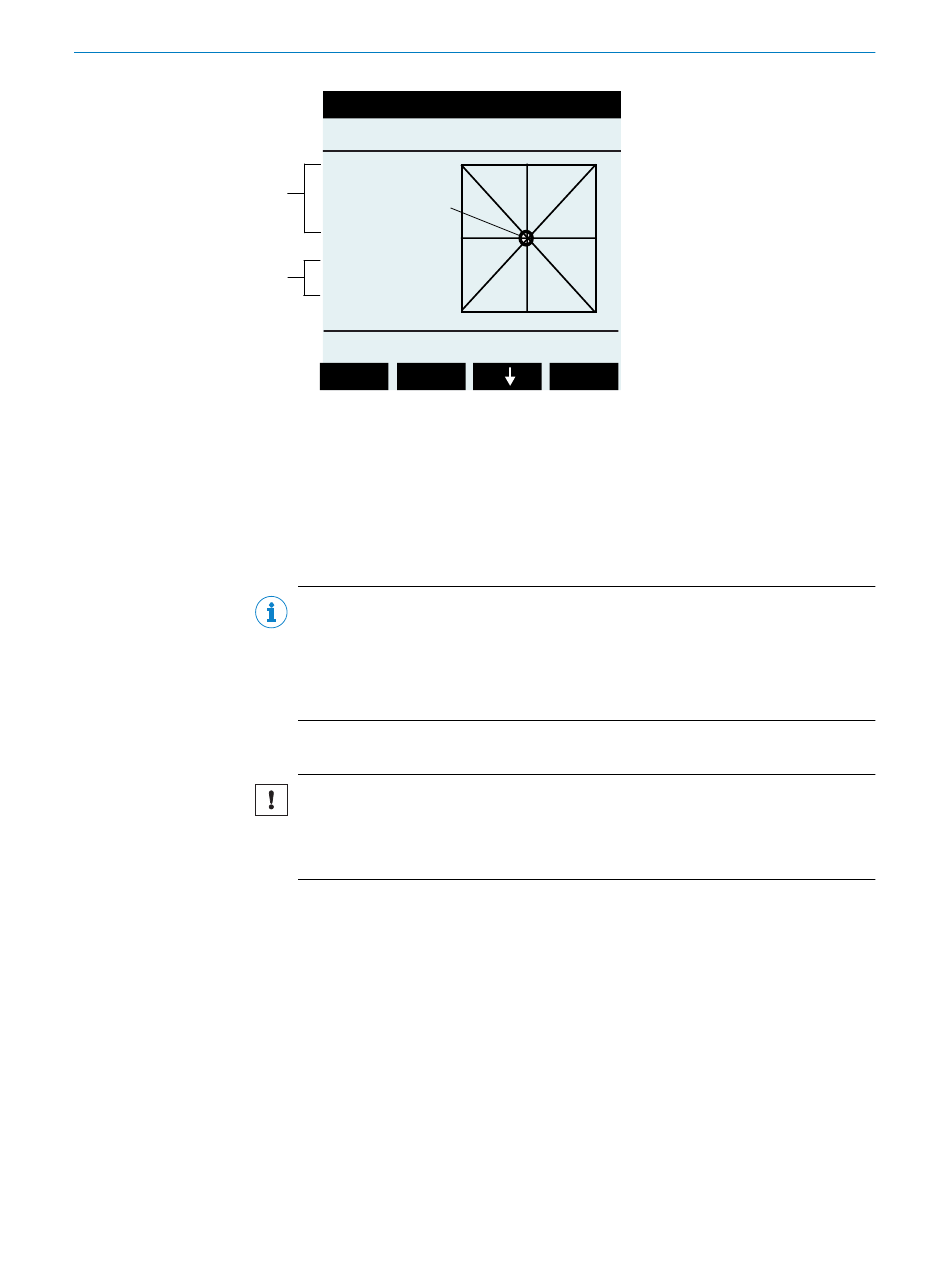

Figure 32: Shows the optical alignment on the device display
Light energy
1
Focal point
2
X/Y values
3
Performing the optical alignment
1 Press the Start button. A crosshair with a focal point and X/Y values are shown on
the screen.
NOTE
The focal point is in the center of the crosshair when the following tolerances are
shown:
• X: -0.05 ... +0.05
• Y: -0.05 ... +0.05
2 Carry out optical alignment: Carry out optical alignment by adjusting the two
setting screws on the device flange of the SR-unit (19 mm wrench).
NOTICE
The display on the monitor reacts to the adjustment with a delay.
Perform adjustments slowly and wait for approx. 20 seconds until the display
►
on the monitor has been updated.
OPERATION
1.2
MAINTENANCE
REQUEST
