Dimension drawings: Connection unit version 3G

8015558/1O6S/V1-9/2024-08 | SICK
Subject to change without notice
3
4
112,6
68,6
42,6
0
134 53,5

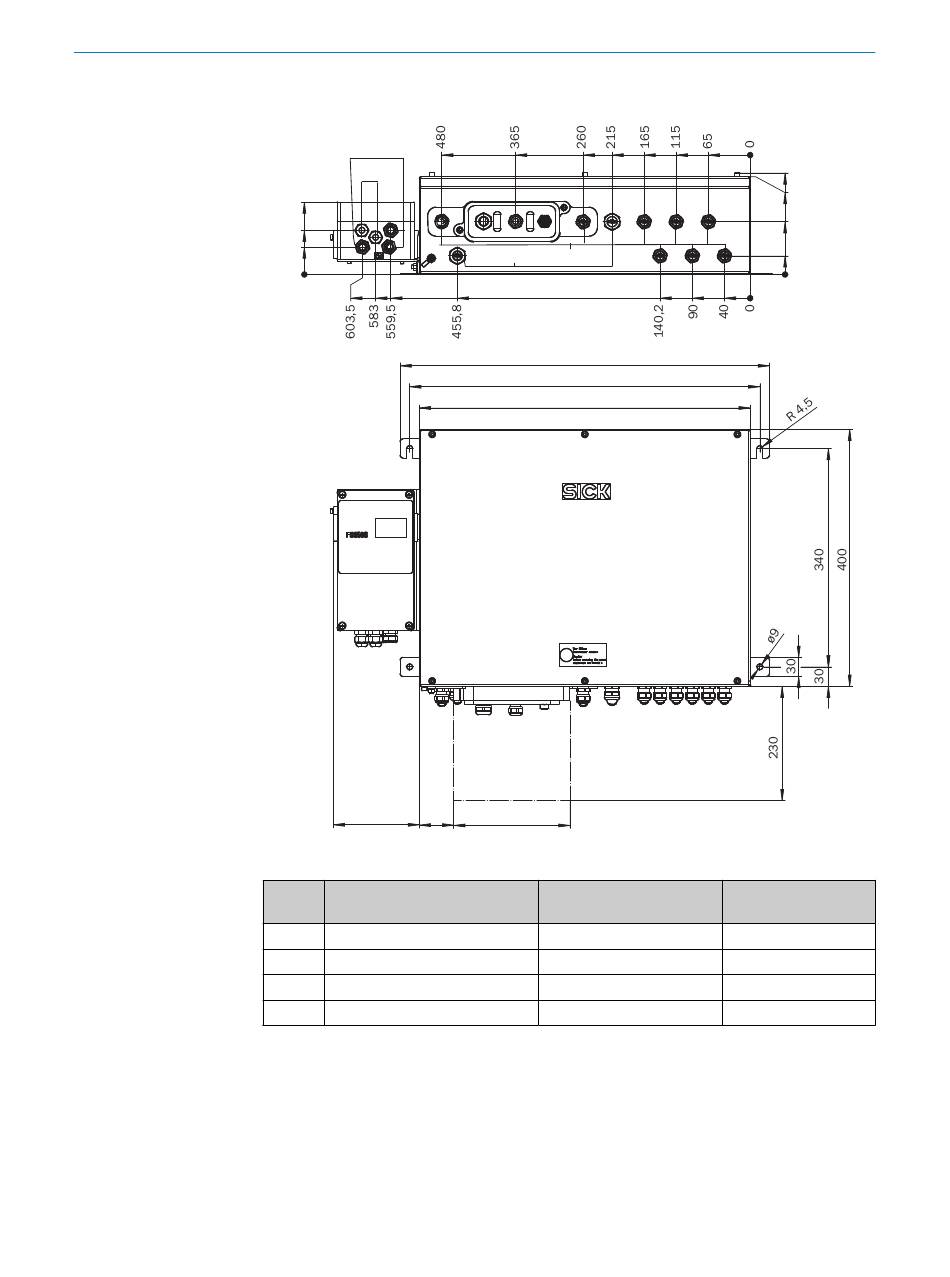

Figure 43: Connection unit version 3G (all specifications in mm)
No. Line opening size
M16 x 1.5
1
M20 x 1.5
2
M16 x 1.5
3
M16 x 1.5
4
2
1
575
545
515
181
Line diameter (clamping
range)
5 - 11 mm
10 - 14 mm
5 - 11 mm
4 - 8 mm
