MAINTENANCE
9.6

Visual inspection

64 O P E R A T I N G I N S T R U C T I O N S | GM32 Ex
CAUTION
Prevent the SR-unit dropping down
If the hinge pin has not been correctly inserted, the SR-unit can drop when swiveled
out.
Before swiveling the SR-unit out, check the hinge pin is completely pressed down.
►
The SR-unit is heavy
Hold the SR-unit tight when pulling out the pin.
►

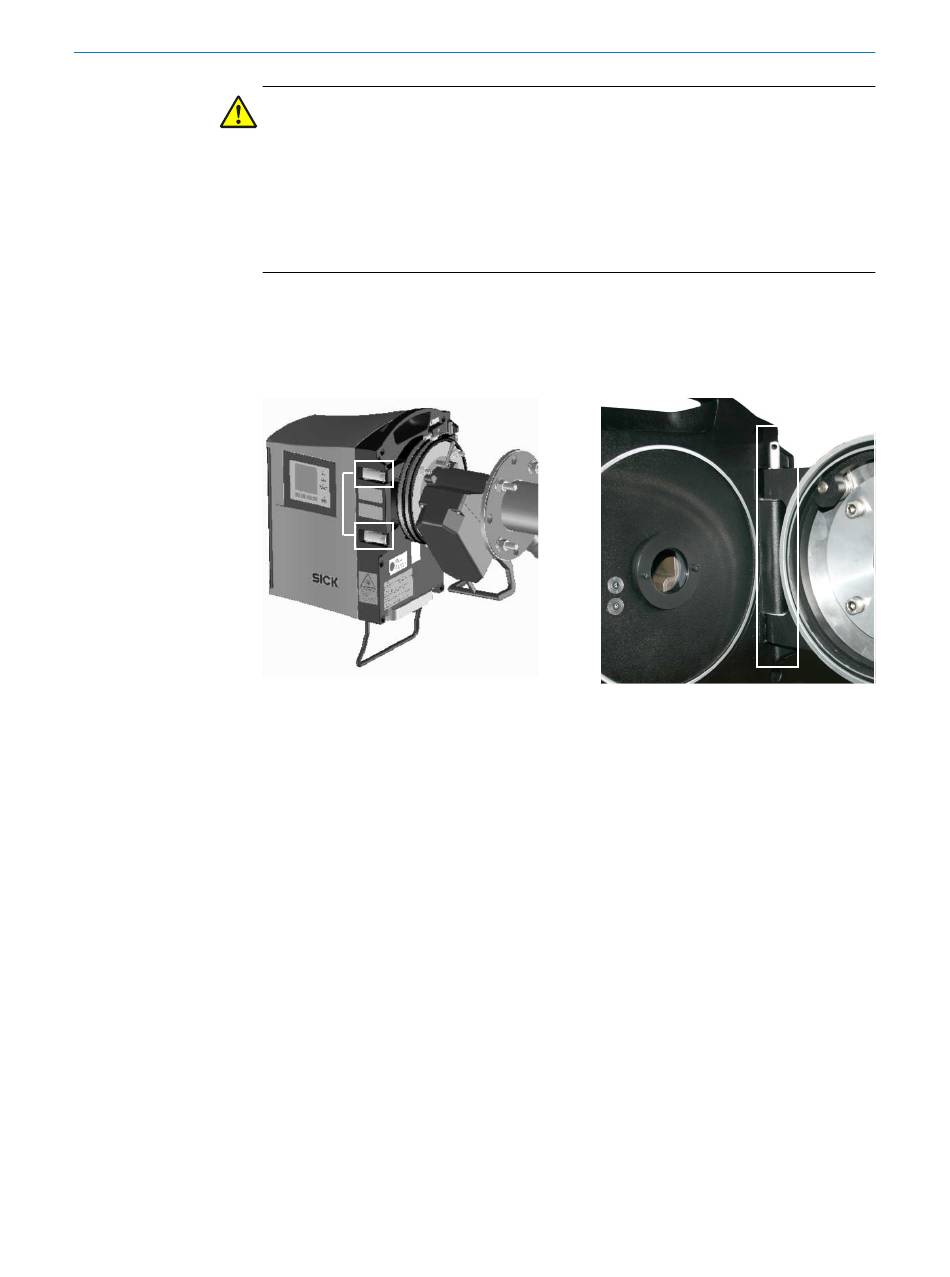

1. Swiveling the SR-unit out,
1 Set the lever on the purge air fixture to the "Close" position".
2 Open the 4 quick-release fasteners of the SR-unit.
3 Swivel the SR-unit out.
1
Quick-release fasteners
1
2. Removing the SR-unit
Hold the unit.
►
Pull out the hinge pin.
►
Take the SR-unit off.
►
Check the housings of the SR-unit and connection unit for mechanical damage.
►
Clean the housings if contaminated.
►
Check all cables for damage. Pay attention to chafe marks and kinks on cable
►
ducts.
Check flanges and screw fittings for firm seating.
►
Hinge pin
2
