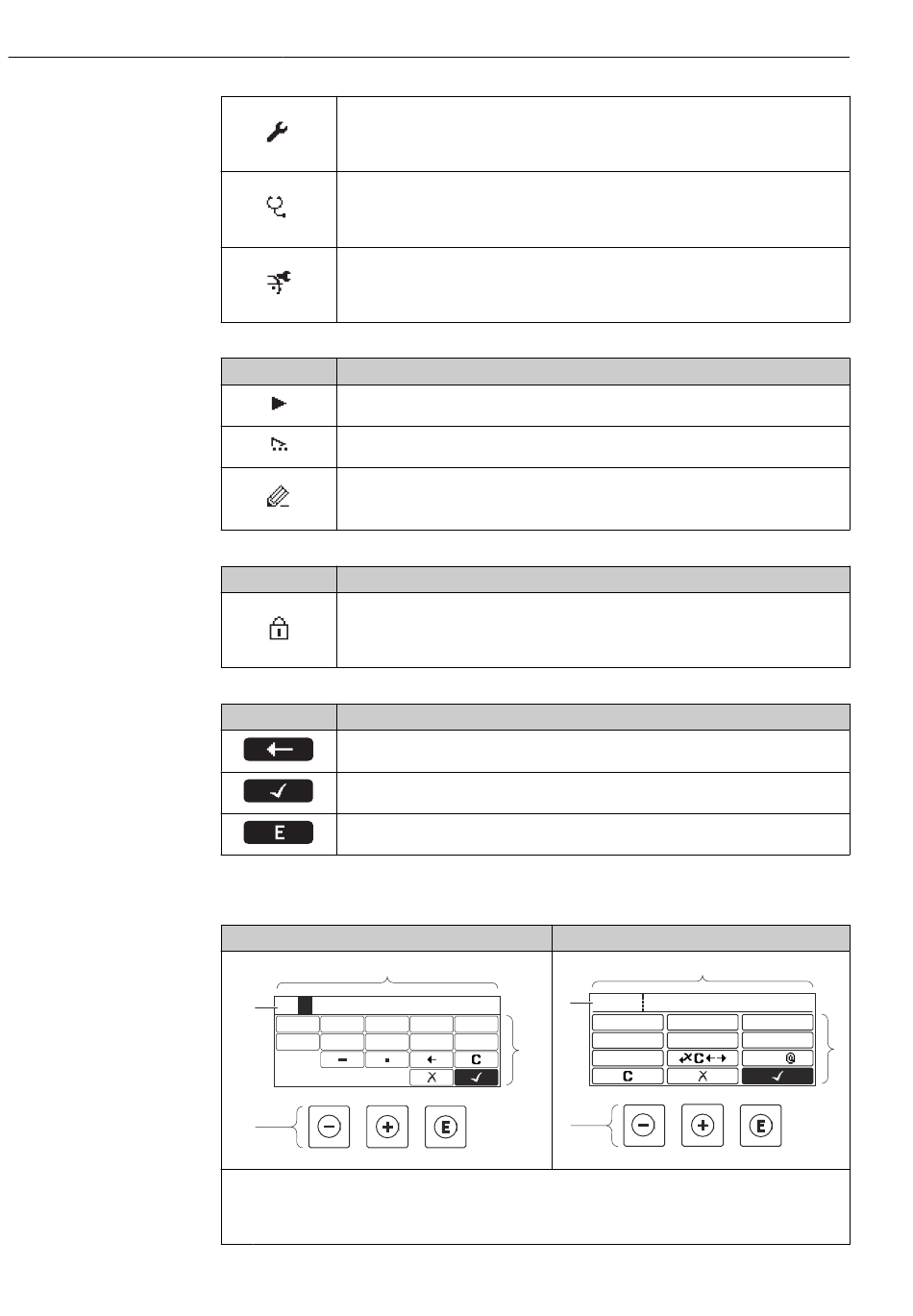

Operation options
48
Setup
Is displayed:
• In the menu next to the "Setup" selection
• At the left in the navigation path in the Setup menu
Diagnosis
Is displayed:
• In the menu next to the "Diagnostics" selection
• At the left in the navigation path in the Diagnostics menu
Expert
Is displayed:
• In the menu next to the "Expert" selection
• At the left in the navigation path in the Expert menu
Submenus, wizards, parameters
Symbol Meaning
Submenu
Wizards
Parameters within a wizard

No display symbol exists for parameters in submenus.
Locking procedure
Symbol Meaning
Parameter locked
When displayed in front of a parameter name, indicates that the parameter is locked.
• By a user-specific access code
• By the hardware write protection switch
Wizards
Symbol Meaning
Switches to the previous parameter.
Confirms the parameter value and switches to the next parameter.
Opens the editing view of the parameter.
8.3.3

Editing view

Numeric editor
1
20
2
0 1 2
5 7
6
4
1 Editing view
2 Display area of the entered values
3 Input mask
4 Operating elements →  50
Proline Prosonic Flow I 400 Modbus RS485
User
2
3 4
8 9
3
4
A0013941
Text editor
1
ABC_ HIJK
DEFG
LMNO PQRS TUVW
Aa1
XYZ
Endress+Hauser
3
A0013999
