Connecting the operating tool

Via Modbus RS485 protocol
This communication interface is available in device versions with a Modbus RS485 output.
1

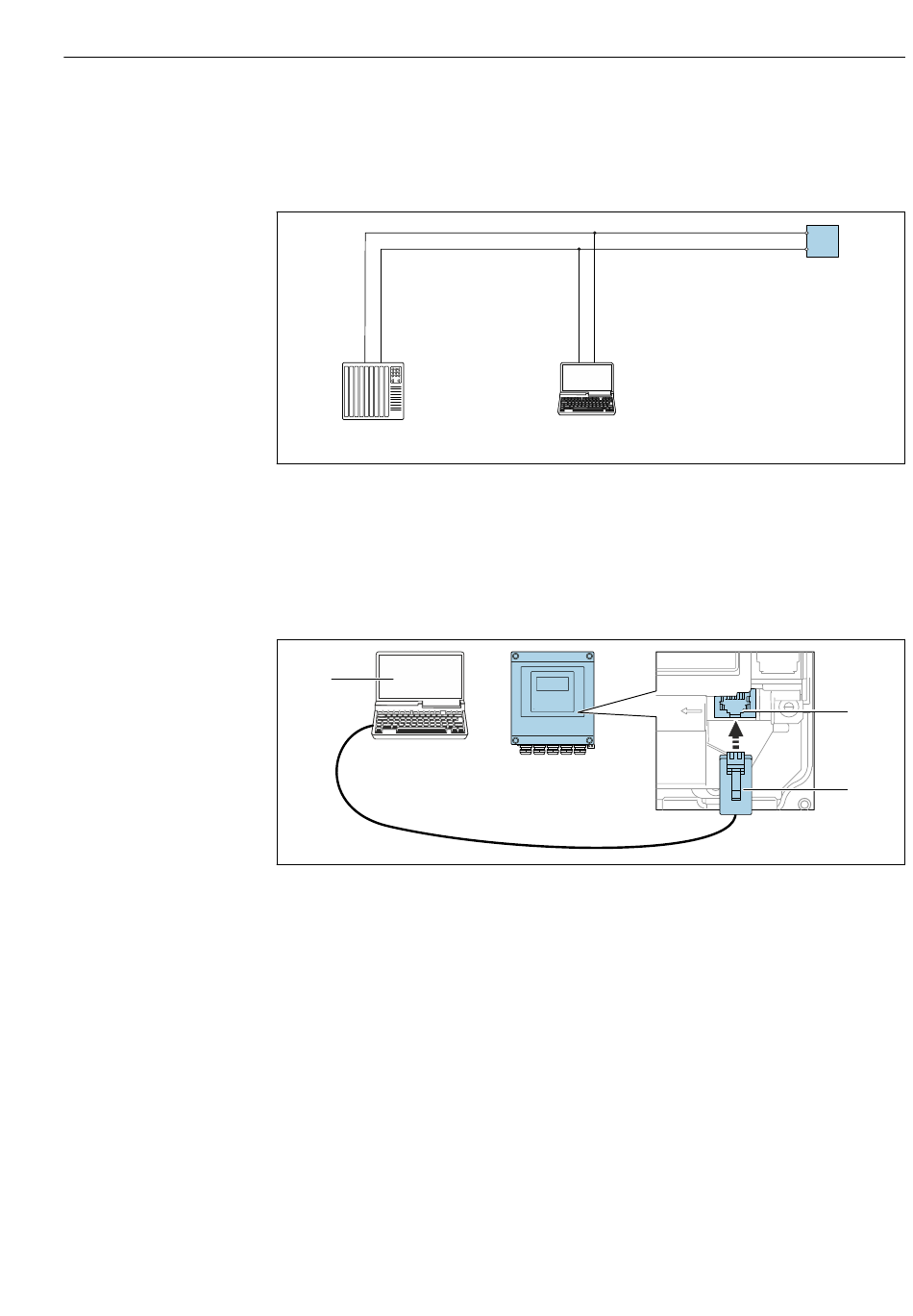

 17 Options for remote operation via Modbus RS485 protocol (active)
1 Control system (e.g. PLC)
2 Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or with operating
tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP" or Modbus DTM
3 Transmitter
Via service interface (CDI-RJ45)
1
 18 Connection via service interface (CDI-RJ45)
1 Computer with web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated
device web server or with operating tool "FieldCare", "DeviceCare" with COM DTM "CDI Communication TCP/IP"
or Modbus DTM
2 Standard Ethernet connecting cable with RJ45 plug
3 Service interface (CDI-RJ45) of the measuring device with access to the integrated web server
Via WLAN interface
The optional WLAN interface is available on the following device version:
Order code for "Display; operation", option G "4-line, illuminated; touch control + WLAN"
2
