Endress+Hauser Proline Promass I 100 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Endress+Hauser Manuals
  4. Measuring Instruments
  5. Proline Promass I 100
  6. Operating instructions manual
Endress+Hauser Proline Promass I 100 Operating Instructions Manual

Endress+Hauser Proline Promass I 100 Operating Instructions Manual

Coriolis flowmeter modbus rs485
Hide thumbs Also See for Proline Promass I 100:

Advertisement

Quick Links

Download this manual
BA01058D/06/EN/04.24-00
71674301
2024-11-01
Valid as of version
01.03.zz (Device firmware)
Products
Operating Instructions
Proline Promass I 100
Coriolis flowmeter
Modbus RS485
Solutions
Services

Advertisement

loading
Need help?

Need help?

Do you have a question about the Proline Promass I 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Proline Promass I 100

Summary of Contents for Endress+Hauser Proline Promass I 100

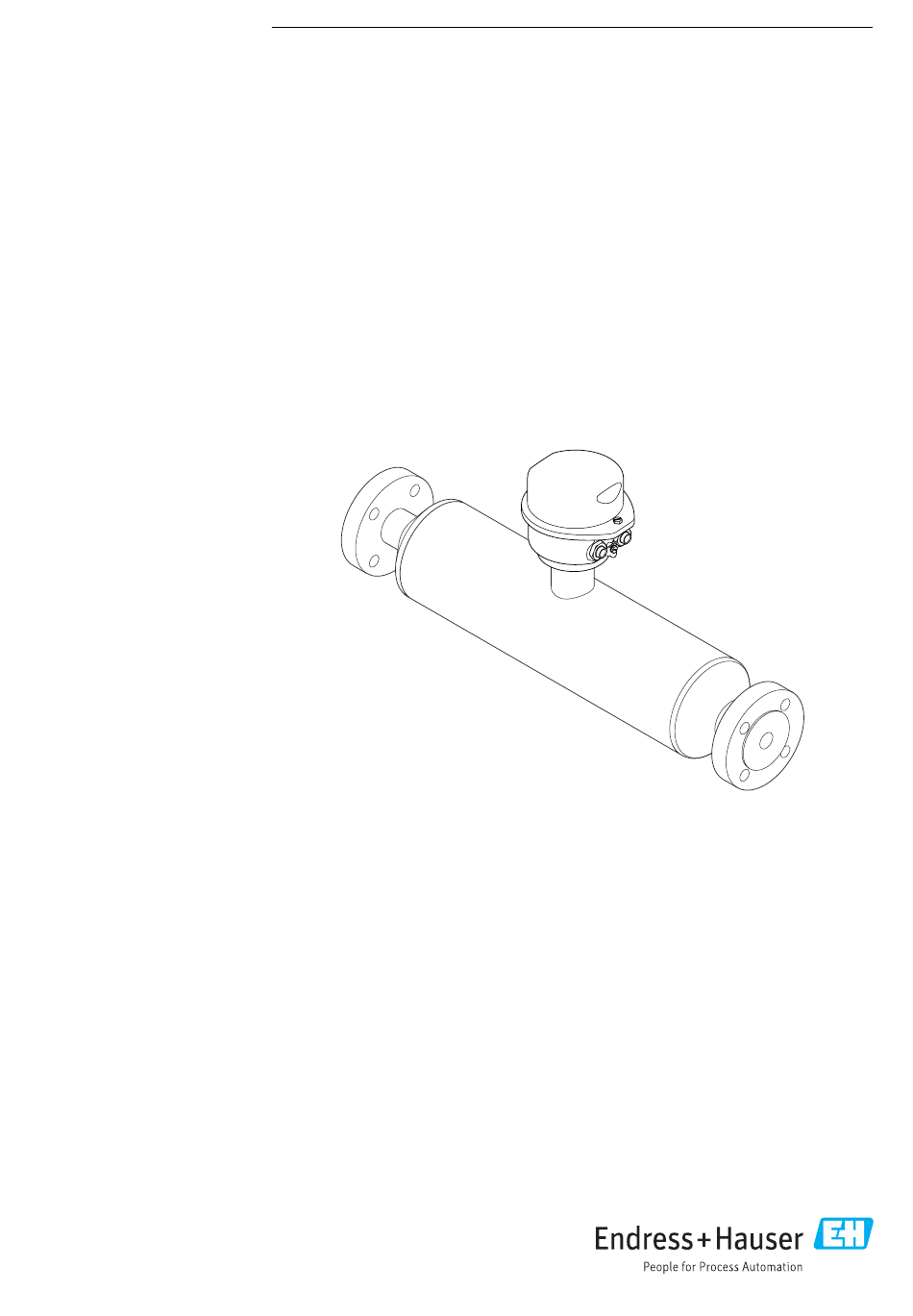

  • Page 1 Products Solutions Services BA01058D/06/EN/04.24-00 71674301 2024-11-01 Valid as of version 01.03.zz (Device firmware) Operating Instructions Proline Promass I 100 Coriolis flowmeter Modbus RS485...
  • Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...

  • Page 3: Table Of Contents

    Proline Promass I 100 Modbus RS485 Table of contents Table of contents Installing the measuring instrument ..23 About this document ....6 6.2.1...
  • Page 4 10.5.3 Carrying out a sensor adjustment ..60 13.3 Endress+Hauser services ....87 10.5.4 Configuring the totalizer ..64 10.5.5 Using parameters for device...

  • Page 5: Endress+Hauser

    Proline Promass I 100 Modbus RS485 Table of contents Index ....... . . 115...

  • Page 6: About This Document

    About this document Proline Promass I 100 Modbus RS485 About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.

  • Page 7: Symbols For

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser...

  • Page 8: Registered Trademarks

    About this document Proline Promass I 100 Modbus RS485 The following documentation may be available depending on the device version ordered: Document type Purpose and content of the document Technical Information (TI) Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device.

  • Page 9: Safety Instructions

    Proline Promass I 100 Modbus RS485 Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.

  • Page 10: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 11: Product Description

    Proline Promass I 100 Modbus RS485 Product description Product description The device consists of a transmitter and a sensor. The Safety Barrier Promass 100 is part of the scope of supply and must be implemented to operate the device. The device is available as a compact version: The transmitter and sensor form a mechanical unit.

  • Page 12: Incoming Acceptance And Product

    • Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed.

  • Page 13: Transmitter Nameplate

    Proline Promass I 100 Modbus RS485 Incoming acceptance and product identification 4.2.1 Transmitter nameplate Order code: Ser. no.: Ext. ord. cd.: A0030222  2 Example of a transmitter nameplate Manufacturer address/certificate holder Name of the transmitter Order code Serial number Extended order code Electrical connection data, e.g.

  • Page 14: Sensor Nameplate

    Incoming acceptance and product identification Proline Promass I 100 Modbus RS485 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199  3 Example of a sensor nameplate Name of the sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext.

  • Page 15: Promass 100 Safety Barrier Nameplate

    Proline Promass I 100 Modbus RS485 Incoming acceptance and product identification 4.2.3 Promass 100 safety barrier nameplate Safe area NON intrinsically safe circuit (grey terminals) Promass 100 Safety Barrier Intrinsically safe circuits (blue terminals) HAZARDOUS area A0017854  4 Example of a Promass 100 safety barrier nameplate Non-hazardous area or Zone 2/Div.

  • Page 16: Storage And Transport

    Storage and transport Proline Promass I 100 Modbus RS485 Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.

  • Page 17: Measuring Devices With Lifting Lugs

    Proline Promass I 100 Modbus RS485 Storage and transport 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device.

  • Page 18: Installation

    Installation Proline Promass I 100 Modbus RS485 Installation Installation requirements 6.1.1 Installation position Installation point A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring pipe, avoid the following mounting locations in the piping: • Highest point of a pipeline.

  • Page 19: Inlet And Outlet Runs

    Proline Promass I 100 Modbus RS485 Installation Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 15 FB ½ FB 0.60 0.55 25 FB 1 FB 0.95 1 ½ 0.87 40 FB 1 ½ FB 1.38 1.10...

  • Page 20: Environmental And Process Requirements

    Installation Proline Promass I 100 Modbus RS485 Installation dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section 6.1.2 Environmental and process requirements Ambient temperature range Measuring device • –40 to +60 °C (–40 to +140 °F) •...

  • Page 21: Special Installation Instructions

    Proline Promass I 100 Modbus RS485 Installation A0034391  6 Thermal insulation with exposed extended neck Heating NOTICE Electronics can overheat due to elevated ambient temperature! ‣ Observe maximum permitted ambient temperature for the transmitter. ‣ Depending on the medium temperature, take the device orientation requirements into account.

  • Page 22: Hygienic Compatibility

    Installation Proline Promass I 100 Modbus RS485 the correct position to ensure full drainability in the horizontal position. Markings on the sensor show the correct mounting position to optimize drainability. A0030297 Eccentric clamp connection "This side up" label indicates which side is up Slope the device in accordance with the hygiene guidelines.

  • Page 23: Installing The Measuring Instrument

    Proline Promass I 100 Modbus RS485 Installation [mm] [in] [mm] [in] [mm] [in] [mm] [in] 50 FB 50 FB 1 152 45.35 2.24 3.54 1 152 45.35 2.24 3.54 Zero verification and zero adjustment All measuring instruments are calibrated in accordance with state-of-the-art technology.

  • Page 24: Mounting The Measuring Device

    Installation Proline Promass I 100 Modbus RS485 6.2.3 Mounting the measuring device WARNING Danger due to improper process sealing! ‣ Ensure that the inside diameters of the gaskets are greater than or equal to that of the process connections and piping.

  • Page 25: Electrical Connection

    Proline Promass I 100 Modbus RS485 Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.

  • Page 26: Terminal Assignment

    Electrical connection Proline Promass I 100 Modbus RS485 Connecting cable between Safety Barrier Promass 100 and measuring device Cable type Shielded twisted-pair cable with 2x2 wires. When grounding the cable shield, observe the grounding concept of the plant. Maximum cable resistance 2.5 Ω, one side Comply with the maximum cable resistance specifications to ensure the operational reliability of the measuring device.
  • Page 27 Proline Promass I 100 Modbus RS485 Electrical connection Connection methods available Order code Possible options for order code Power "Housing" "Electrical connection" Output supply Options Device plugs Device plugs Option Q: 2 x plug M12x1 A, B, C →  29 →...
  • Page 28 Electrical connection Proline Promass I 100 Modbus RS485 72 A A0030219  8 Modbus RS485 terminal assignment, connection version for use in intrinsically safe areas (connection via Safety Barrier Promass 100) Intrinsically safe power supply Modbus RS485 Order code 10 (L+)

  • Page 29: Pin Assignment, Device Plug

    Proline Promass I 100 Modbus RS485 Electrical connection 7.2.4 Pin assignment, device plug Supply voltage Promass 100 Device plug for signal transmission with supply voltage (device side), MODBUS RS485 (intrinsically safe) Assignment Supply voltage, intrinsically safe Modbus RS485 intrinsically safe...

  • Page 30: Shielding And Grounding

    Electrical connection Proline Promass I 100 Modbus RS485 7.2.5 Shielding and grounding Shielding and grounding concept 1. Maintain electromagnetic compatibility (EMC). 2. Take explosion protection into consideration. 3. Pay attention to the protection of persons. 4. Comply with national installation regulations and guidelines.

  • Page 31: Connecting The Transmitter

    Proline Promass I 100 Modbus RS485 Electrical connection 7.3.1 Connecting the transmitter The connection of the transmitter depends on the following order codes: • Housing version: compact or ultra-compact • Connection version: device plug or terminals A0016924  10 Housing versions and connection versions...

  • Page 32: Connecting The Safety Barrier Promass 100

    Electrical connection Proline Promass I 100 Modbus RS485 For device version with device plug: follow step 6 only. 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover.

  • Page 33: Potential Equalization

    Proline Promass I 100 Modbus RS485 Electrical connection Potential equalization 7.4.1 Requirements For potential equalization: • Pay attention to in-house grounding concepts • Take account of operating conditions, such as the pipe material and grounding • Connect the medium, sensor and transmitter to the same electric potential •...

  • Page 34: Hardware Settings

    Electrical connection Proline Promass I 100 Modbus RS485 Modbus RS485 intrinsically safe L- L+ A0028766  14 Connection example for Modbus RS485 intrinsically safe Control system (e.g. PLC) Cable shield provided at one end. Observe cable specifications Safety Barrier Promass 100...

  • Page 35: Ensuring The Degree Of Protection

    Proline Promass I 100 Modbus RS485 Electrical connection If the transmitter is used in the intrinsically safe area 220 Ω 27 A A0030217  16 Terminating resistor can be enabled via DIP switch in the Safety Barrier Promass 100 Ensuring the degree of protection The measuring instrument fulfills all the requirements for the degree of protection IP66/67, Type 4X enclosure.
  • Page 36 Electrical connection Proline Promass I 100 Modbus RS485 Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap"  →  35? Depending on the device version:  Are all connectors securely tightened →  31? •...

  • Page 37: Operation Options

    Proline Promass I 100 Modbus RS485 Operation options Operation options Overview of operation options A0017760 Computer with "FieldCare" or "DeviceCare" operating tool via Commubox FXA291 and service interface Automation system (e.g. PLC) Endress+Hauser...

  • Page 38: Structure And Function Of The Operating Menu

    Operation options Proline Promass I 100 Modbus RS485 Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device →  114...

  • Page 39: Operating Philosophy

    Proline Promass I 100 Modbus RS485 Operation options 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. Menu/parameter...
  • Page 40 Operation options Proline Promass I 100 Modbus RS485 X X X X X X X 1120.50 kg/h A0037831 Operational display Tag name Status area Display area for measured values (4-line) Status area The following symbols appear in the status area of the operational display at the top right: •...

  • Page 41: User Roles And Related Access Authorization

    Proline Promass I 100 Modbus RS485 Operation options Totalizer  The measurement channel number indicates which of the three totalizers is displayed. Output  Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g.

  • Page 42: Access To The Operating Menu Via The Operating Tool

    FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.

  • Page 43: User Interface

    DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →...

  • Page 44: System Integration

    System integration Proline Promass I 100 Modbus RS485 System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.03.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →...

  • Page 45: Register Information

    Proline Promass I 100 Modbus RS485 System integration Code Name Description Application Write single Master writes a new value to one Write only 1 device parameter registers Modbus register of the measuring Example: reset totalizer device.  Use function code 16 to write multiple registers with just 1 telegram.

  • Page 46: Byte Transmission Sequence

    System integration Proline Promass I 100 Modbus RS485 INTEGER Data length = 2 bytes (1 register) Byte 1 Byte 0 Most significant byte (MSB) Least significant byte (LSB) STRING Data length = depends on the device parameter, e.g. presentation of a device parameter with a data length = 18...

  • Page 47: Modbus Data Map

    Proline Promass I 100 Modbus RS485 System integration 0 – 1 – 2 – 3 Byte 16 Byte 17 Byte 0 Byte 1 2 – 3 – 0 – 1 (MSB) (LSB) * = factory setting, MSB = most significant byte, LSB = least significant byte 9.2.6...
  • Page 48 System integration Proline Promass I 100 Modbus RS485 Configuration of the scan list via Modbus RS485 Carried out using register addresses 5001 - 5016 Scan list Modbus RS485 register Data type Configuration register 5001 Integer Scan list register 0 Integer...

  • Page 49: Commissioning

    Proline Promass I 100 Modbus RS485 Commissioning Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-installation" check→  24 • Checklist for "Post-connection" check→  35 10.2...

  • Page 50: Parameter Overview With Brief Description

    Commissioning Proline Promass I 100 Modbus RS485 Navigation "Setup" menu → Device tag Parameter overview with brief description Parameter Description User entry Device tag Enter the name for the measuring point. Max. 32 characters, such as letters, numbers or special characters (e.g. @, %, /).
  • Page 51 Proline Promass I 100 Modbus RS485 Commissioning Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Effect • lb/min The selected unit applies to: • Output •...
  • Page 52 Commissioning Proline Promass I 100 Modbus RS485 Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Effect • °F The selected unit applies to: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...

  • Page 53: Selecting And Setting The Medium

    Proline Promass I 100 Modbus RS485 Commissioning 10.4.3 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Medium selection ‣ Medium selection Select medium →...

  • Page 54: Configuring The Communication Interface

    Commissioning Proline Promass I 100 Modbus RS485 Parameter Prerequisite Description Selection / User entry Reference sound velocity In the Select gas type parameter, the Enter sound velocity of gas at 0 °C (32 1 to 99 999.9999 m/s Others option is selected.
  • Page 55 Proline Promass I 100 Modbus RS485 Commissioning Parameter Description User entry / Selection Data transfer mode Select data transfer mode. • ASCII • RTU Parity Select parity bits. Picklist ASCII option: • 0 = Even option • 1 = Odd option Picklist RTU option: •...

  • Page 56: Configuring The Low Flow Cut Off

    Commissioning Proline Promass I 100 Modbus RS485 10.4.5 Configuring the low flow cut off The Low flow cut off submenu contains the parameters that must be set in order to configure the low flow cut off. Navigation "Setup" menu → Low flow cut off ‣...

  • Page 57: Configuring Partially Filled Pipe

    Proline Promass I 100 Modbus RS485 Commissioning 10.4.6 Configuring partially filled pipe detection The Partially filled pipe detection submenu contains parameters that have to be set for configuring empty pipe detection. Navigation "Setup" menu → Partially filled pipe detection ‣...

  • Page 58: Using The Parameter To Enter The Access Code

    Commissioning Proline Promass I 100 Modbus RS485 10.5 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. The number of submenus can vary depending on the device version, e.g. viscosity is available only with the Promass I.
  • Page 59 Proline Promass I 100 Modbus RS485 Commissioning "Corrected volume flow calculation" submenu Navigation "Setup" menu → Advanced setup → Calculated values → Corrected volume flow calculation ‣ Corrected volume flow calculation →  59 Corrected volume flow calculation (1812) External reference density (6198) →...

  • Page 60: Carrying Out A Sensor Adjustment

    Commissioning Proline Promass I 100 Modbus RS485 Parameter Prerequisite Description Selection / User Factory setting interface / User entry Linear expansion coefficient The Calculated reference Enter linear, medium-specific 0 to 1 – density option is selected in expansion coefficient for the Corrected volume flow...
  • Page 61 Proline Promass I 100 Modbus RS485 Commissioning Performing density adjustment Note the following before performing the adjustment: • A density adjustment only makes sense if there is little variation in the operating conditions and the density adjustment is performed under the operating conditions.
  • Page 62 Commissioning Proline Promass I 100 Modbus RS485 4. Select the Measure density 1 option and confirm.  In the Execute density adjustment parameter the following options are now available: Measure density 2 Restore original 5. Select the Measure density 2 option and confirm.
  • Page 63 Proline Promass I 100 Modbus RS485 Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface Density setpoint 2 In the Density adjustment The entry depends on – mode parameter, the 2 point the unit selected in adjustment option is selected.

  • Page 64: Configuring The Totalizer

    Commissioning Proline Promass I 100 Modbus RS485 Navigation "Setup" menu → Advanced setup → Sensor adjustment → Zero point adjustment ‣ Zero point adjustment Zero point adjustment control →  64 Progress →  64 Parameter overview with brief description...

  • Page 65: Using Parameters For Device Administration

    Proline Promass I 100 Modbus RS485 Commissioning Parameter Prerequisite Description Selection Factory setting Totalizer operation mode A process variable is selected Select totalizer calculation • Net flow total – in the Assign process variable mode. • Forward flow total parameter (→  64) of the •...

  • Page 66: Protecting Settings From Unauthorized Access

    Commissioning Proline Promass I 100 Modbus RS485 Simulation device alarm →  66 Diagnostic event simulation Parameter overview with brief description Parameter Prerequisite Description Selection / User entry Assign simulation process variable – Select a process variable for the • Off simulation process that is activated.
  • Page 67 Proline Promass I 100 Modbus RS485 Commissioning A0030224 Setting the write protection switch on the main electronics module to the On position enables hardware write protection. Setting the write protection switch on the main electronics module to the Off position (factory setting) disables hardware write protection.

  • Page 68: Operation

    Operation Proline Promass I 100 Modbus RS485 Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter Options Description Hardware locked The locking switch (DIP switch) for locking the hardware is activated on the main electronic module.
  • Page 69 Proline Promass I 100 Modbus RS485 Operation Volume flow →  69 Corrected volume flow →  70 →  70 Density Reference density →  70 Temperature →  70 Pressure →  70 →  70 Dynamic viscosity Kinematic viscosity →...
  • Page 70 Operation Proline Promass I 100 Modbus RS485 Parameter Prerequisite Description User interface Measured values 4 – Displays the corrected volume flow that Signed floating-point is currently calculated. number Dependency The unit is taken from: Corrected volume flow unit parameter (→  51) Measured values 3 –...

  • Page 71: Totalizer" Submenu

    Proline Promass I 100 Modbus RS485 Operation Parameter Prerequisite Description User interface Target mass flow With the following conditions: Displays the mass flow that is currently Signed floating-point Order code for "Application package", measured for the target medium. number option ED "Concentration"...

  • Page 72: Adapting The Measuring Device To The Process Conditions

    Operation Proline Promass I 100 Modbus RS485 Parameter overview with brief description Parameter Prerequisite Description User interface Totalizer value 1 to n One of the following options is selected Displays the current totalizer counter Signed floating-point in the Assign process variable value.

  • Page 73: Function Scope Of "Control Totalizer

    Proline Promass I 100 Modbus RS485 Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Control Totalizer 1 to n A process variable is selected Control totalizer value. • Totalize – in the Assign process variable •...

  • Page 74: Function Range Of "Reset All Totalizers" Parameter

    Operation Proline Promass I 100 Modbus RS485 11.5.2 Function range of "Reset all totalizers" parameter Options Description Cancel No action is executed and the user exits the parameter. Reset + totalize Resets all totalizers to 0 and restarts the totaling process. This deletes all the previously aggregated flow values.

  • Page 75: Diagnostics And Troubleshooting

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For output signals Error Possible causes Remedial action Green power LED on the main electronics Supply voltage does not match the voltage Apply the correct supply voltage →  31.

  • Page 76: Safety Barrier Promass 100

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 A0029689 Supply voltage Device status Not used Communication Service interface (CDI) active 1. Open the housing cover. 2. Remove the display module. 3. Fold open the terminal cover. Color Meaning Supply voltage...

  • Page 77: Diagnostic Information In Fieldcare Or

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting 12.3 Diagnostic information in FieldCare or DeviceCare 12.3.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established.

  • Page 78: Calling Up Remedy Information

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Diagnostic information The fault can be identified using the diagnostic information. The short text helps you by providing information about the fault. Diagnostic information Diagnostic code Status signal Diagnostic number Short text ↓...

  • Page 79: Adapting The Diagnostic Information

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Parameter overview with brief description Parameter Description Options Factory setting Failure mode Select measured value • NaN value NaN value output behavior when a • Last valid value diagnostic message occurs ...
  • Page 80 Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Memory content 1. Restart device Alarm 2. Contact service Sensor signal 1. Check or change main...

  • Page 81: Pending Diagnostic Events

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of process Sensor temperature too Reduce ambient temp. around the Warning high sensor housing Sensor temperature too Increase ambient temp.

  • Page 82: Diagnostics List

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Navigation "Diagnostics" menu  Diagnostics Actual diagnostics →  82 Previous diagnostics →  82 →  82 Operating time from restart Operating time →  82 Parameter overview with brief description...

  • Page 83: Filtering The Event Logbook

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Navigation path Edit tool bar: F → Additional functions → Events list The edit tool bar can be accessed via the FieldCare user interface →  42 This event history includes entries for: •...

  • Page 84: 12.10 Resetting The Measuring Device

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Info number Info name I1221 Zero point adjust failure I1222 Zero point adjustment ok I1256 Display: access status changed I1335 Firmware changed I1397 Fieldbus: access status changed I1398 CDI: access status changed...

  • Page 85: 12.11 Device Information

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting 12.11 Device information The Device information submenu contains all parameters that display different information for device identification. Navigation "Diagnostics" menu → Device information ‣ Device information Device tag →  85 Serial number →...

  • Page 86: 12.12 Firmware History

    "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •...

  • Page 87: Maintenance

    Observe the inside diameter of the measuring tube and process connection. 13.2 Measuring and test equipment Endress+Hauser offers a variety of measuring and testing equipment, such as Netilion or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.

  • Page 88: Repair

    • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.

  • Page 89: Disposal

    Proline Promass I 100 Modbus RS485 Repair 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.

  • Page 90: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 91: Service-Specific Accessories

    Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion IIoT ecosystem,Endress+Hauser allows you to optimize your plant performance, digitize workflows, share knowledge, and enhance collaboration. Drawing upon decades of experience in process automation, Endress+Hauser offers the process industry an IIoT ecosystem designed to effortlessly extract insights from data.

  • Page 92: System Components

    Accessories Proline Promass I 100 Modbus RS485 15.4 System components Accessories Description Memograph M graphic The Memograph M graphic data manager provides information on all the relevant data manager measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.

  • Page 93: Technical Data

    Proline Promass I 100 Modbus RS485 Technical data Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids and gases. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.

  • Page 94: Input

    Technical data Proline Promass I 100 Modbus RS485 16.3 Input Measured variable Direct measured variables • Mass flow • Density • Temperature • Viscosity Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring range for liquids Measuring range full scale values ...
  • Page 95 • Operating pressure to increase measurement accuracy (Endress+Hauser recommends the use of a pressure measuring instrument for absolute pressure, e.g. Cerabar M or Cerabar S) •...

  • Page 96: Output

    Technical data Proline Promass I 100 Modbus RS485 16.4 Output Output signal Modbus RS485 Physical interface In accordance with EIA/TIA-485-A standard Terminating resistor • For device version used in non-hazardous areas or Zone 2/Div. 2: integrated and can be activated via DIP switches on the transmitter electronics module •...

  • Page 97: Power Supply

    Proline Promass I 100 Modbus RS485 Technical data Function codes • 03: Read holding register • 04: Read input register • 06: Write single registers • 08: Diagnostics • 16: Write multiple registers • 23: Read/write multiple registers Broadcast messages Supported by the following function codes: •...
  • Page 98 Technical data Proline Promass I 100 Modbus RS485 Promass 100 safety barrier Maximum Order code for "Output" Power consumption Option M: Modbus RS485, for use in intrinsically safe areas 4.8 W Current consumption Transmitter Maximum Maximum Order code for "Output"...

  • Page 99: Performance Characteristics

    Proline Promass I 100 Modbus RS485 Technical data 16.6 Performance characteristics Reference operating • Error limits based on ISO 11631 conditions • Water • +15 to +45 °C (+59 to +113 °F) • 2 to 6 bar (29 to 87 psi) •...

  • Page 100: Flow Values

    Technical data Proline Promass I 100 Modbus RS485 Zero point stability [mm] [in] [kg/h] [lb/min] 13.5 0.496 FB = Full bore Flow values Flow values as turndown parameters depending on nominal diameter. SI units 1:10 1:20 1:50 1:100 1:500 [mm]...

  • Page 101: Influence Of Medium Temperature

    Proline Promass I 100 Modbus RS485 Technical data Repeatability o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Base repeatability Design fundamentals →  102 Mass flow and volume flow (liquids) ±0.05 % o.r. Mass flow (gases) ±0.25 % o.r.
  • Page 102 Technical data Proline Promass I 100 Modbus RS485 Temperature ±0.005 · T °C (± 0.005 · (T – 32) °F) Influence of medium The following shows how the process pressure (gauge pressure) affects the accuracy of the pressure mass flow.

  • Page 103: Mounting

    Proline Promass I 100 Modbus RS485 Technical data Example of maximum measurement error E [%] 100 Q [%] A0030296 Maximum measurement error in % o.r. (example) Flow rate in % of maximum full scale value 16.7 Mounting Mounting requirements →  18 16.8...

  • Page 104: Process

    Technical data Proline Promass I 100 Modbus RS485 • 10 to 200 Hz, 0.003 g • 200 to 2 000 Hz, 0.001 g • Total: 1.54 g rms Shock half-sine, according to IEC 60068-2-27 6 ms 30 g Rough handling shocks according to IEC 60068-2-31 Internal cleaning •...

  • Page 105: Flow Limit

    Proline Promass I 100 Modbus RS485 Technical data purge system itself or by the device, depending on which component has the lower pressure classification. The sensor housing burst pressure refers to a typical internal pressure which is reached prior to mechanical failure of the sensor housing and which was determined during type testing.

  • Page 106: 16.10 Mechanical Construction

    Technical data Proline Promass I 100 Modbus RS485 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight All values (weight exclusive of packaging material) refer to devices with EN/DIN PN 40 flanges.

  • Page 107: Transmitter Housing

    Proline Promass I 100 Modbus RS485 Technical data Materials Transmitter housing • Order code for "Housing", option A "Compact, aluminum coated": Aluminum, AlSi10Mg, coated • Order code for "Housing", option B "Compact, hygienic, stainless": Hygienic version, stainless steel 1.4301 (304) •...
  • Page 108 Technical data Proline Promass I 100 Modbus RS485 Sensor housing • Acid and alkali-resistant outer surface • Stainless steel 1.4301 (304) Measuring tubes Grade 9 titanium Process connections • Flanges according to EN 1092-1 (DIN 2501) / according to ASME B16.5/ according to JIS: •...

  • Page 109: 16.11 Operability

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser...

  • Page 110: Pharmaceutical Compatibility

    The device meets the legal requirements of the applicable UK regulations (Statutory Instruments). These are listed in the UKCA Declaration of Conformity along with the designated standards. By selecting the order option for UKCA marking, Endress+Hauser confirms a successful evaluation and testing of the device by affixing the UKCA mark.
  • Page 111 Directive a) PED/G1/x (x = category) or b) PESR/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms compliance with the "Essential Safety Requirements" a) specified in Annex I of the Pressure Equipment Directive 2014/68/EU or b) Schedule 2 of Statutory Instruments 2016 No. 1105.

  • Page 112: 16.13 Application Packages

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 113: 16.14 Accessories

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Brief Operating instructions...

  • Page 114: Special Documentation

    Technical data Proline Promass I 100 Modbus RS485 Description of Device Parameters Measuring device Documentation code Proline Promass 100 GP01035D Supplementary device- Safety Instructions dependent documentation Content Documentation code ATEX/IECEx Ex i XA00159D ATEX/IECEx Ex nA XA01029D cCSAus IS XA00160D...
  • Page 115 Proline Promass I 100 Modbus RS485 Index Index 0 … 9 Design Measuring device ......11 3-A approval .
  • Page 116 Index Proline Promass I 100 Modbus RS485 Error messages see Diagnostic messages Languages, operation options ....109 Event logbook ......82 Local display Events list .
  • Page 117 Proline Promass I 100 Modbus RS485 Index Mounting preparations ..... . . 23 Performance characteristics ....99 Mounting requirements Performing density adjustment .
  • Page 118 Index Proline Promass I 100 Modbus RS485 System units ......50 Temperature range Tag name .
  • Page 120 *71674301* 71674301 www.addresses.endress.com...
