Proline Prosonic Flow I 400 Modbus RS485
Endress+Hauser

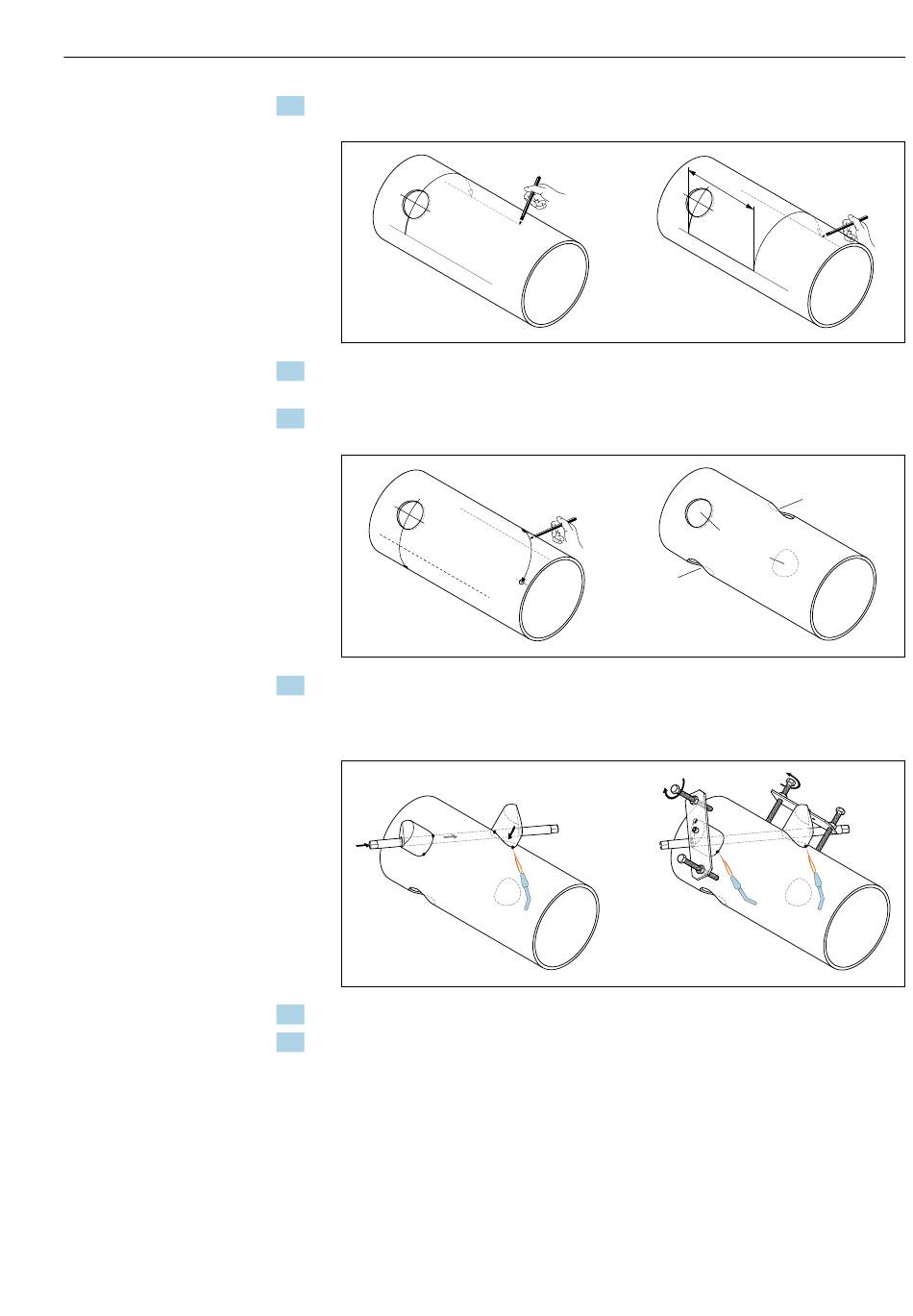

8. Mark the sensor distance on the center line and project it onto the center line on the
rear of the pipe.
9. Draw the length of the arc from the center line out to both sides and mark the drill
holes.
10. Create drill holes and prepare them for welding in the sensor holders (deburr, clean).
Drill holes for the sensor holders are paired together (CH 1 - CH 1 and CH 2 - CH 2).
11. Insert the sensor holders into the first two drill holes and align them using the path
rod (alignment tool). Spot-weld with the welding device and then weld both sensor
holders together. To align the path rod, screw both guide bushes into the sensor
holders.
12. Weld in both sensor holders.
13. Check the path length, sensor distances and arc lengths again. Deviations can be
entered as calibration factors later on when commissioning the measuring point.
Mounting procedure
a
CH 1
CH 1
CH 2
CH 2
A0044959
A0044960
A0044961
29
