Cable specification
Overvoltage protection
Reference operating
conditions
Maximum measurement
error
Endress+Hauser
Cable gland
M20 × 1.5 with cable  6 to 12 mm (0.24 to 0.47 in)
If metal cable entries are used, use a grounding plate.
→  34
Mains voltage fluctuations
Overvoltage category
Short-term, temporary overvoltage
Long-term, temporary overvoltage
16.6

Performance characteristics

• Maximum permissible error according to ISO/DIN 11631
• Specifications as per measurement report
• Accuracy information is based on accredited calibration rigs that are traced to
ISO 17025.
To obtain measured errors, use the Applicator sizing tool →  150
o.r. = of reading
The measurement error depends on a number of factors. A distinction is made between
the measurement error of the device (0.5% o.r.) and an additional installation-specific
measurement error (typically 1.5% o.r.) that is independent of the device.
The installation-specific measurement error depends on the installation conditions on site,
such as the nominal diameter, accuracy of sensor mounting (sensor holder welding), real
pipe geometry or medium. The sum of the two measurement errors is the measurement
error at the measuring point.
[%]
3.5
2.0
0.5
0
0

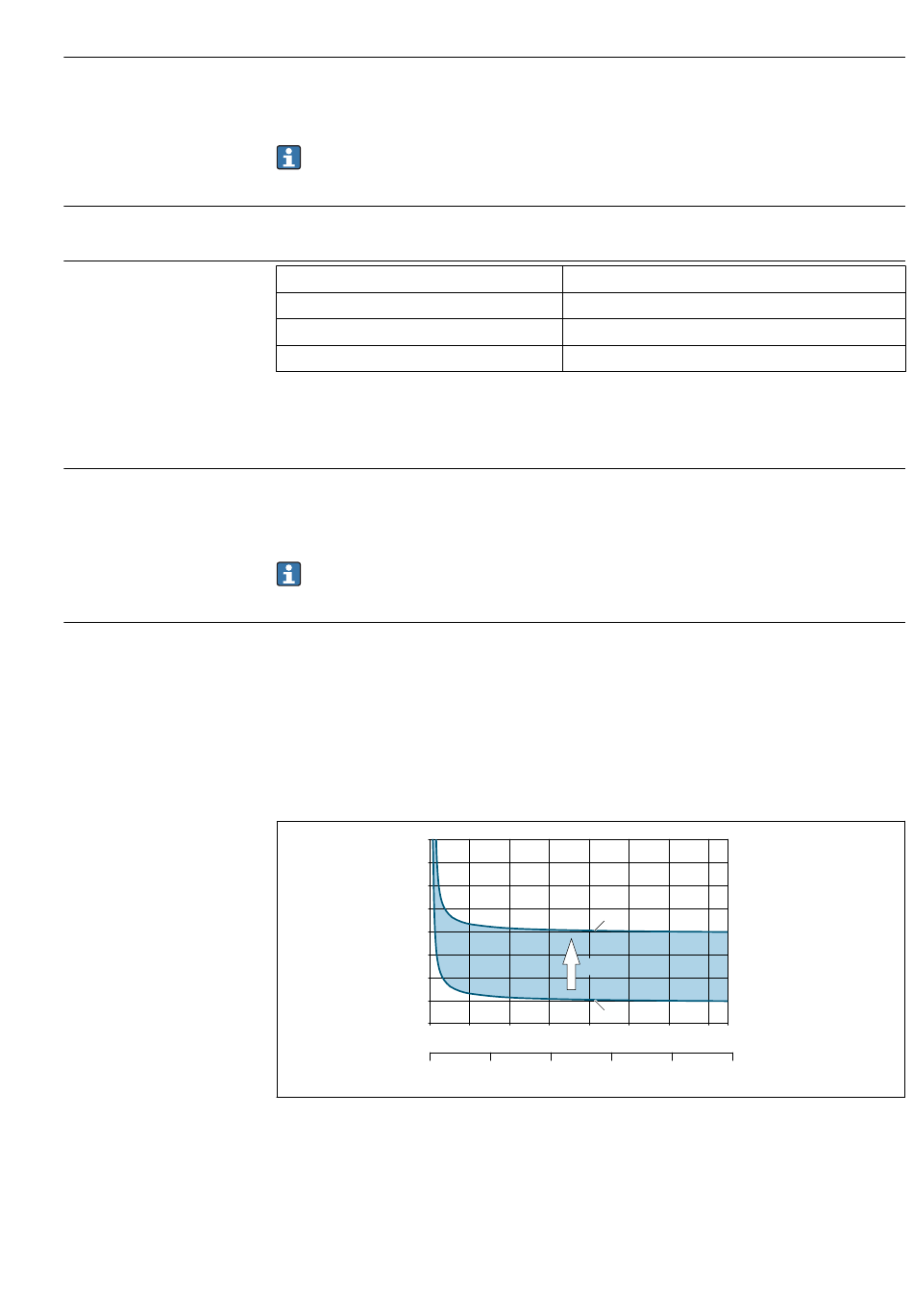

 25 Example of the measurement error in a pipe with a nominal diameter DN > 200 (8")
1 Measurement error of measuring device: 0.5% o.r. ± 3 mm/s (0.12 in/s)
2 Measurement error due to installation conditions: typically 1.5% o.r.
3 Measurement error at the measuring point: 0.5% o.r. ± 3 mm/s (0.12 in/s) + 1.5% o.r. = 2% o.r. ±
3 mm/s (0.12 in/s)
→  156
Overvoltage category II
Between cable and ground up to 1200 V, for max. 5 s
Between cable and ground up to 500 V
3
2
1
2 4 6 8 10
10 20 30
Technical data
[m/s]
12 14
40 50 [ft/s]
A0041972
157
