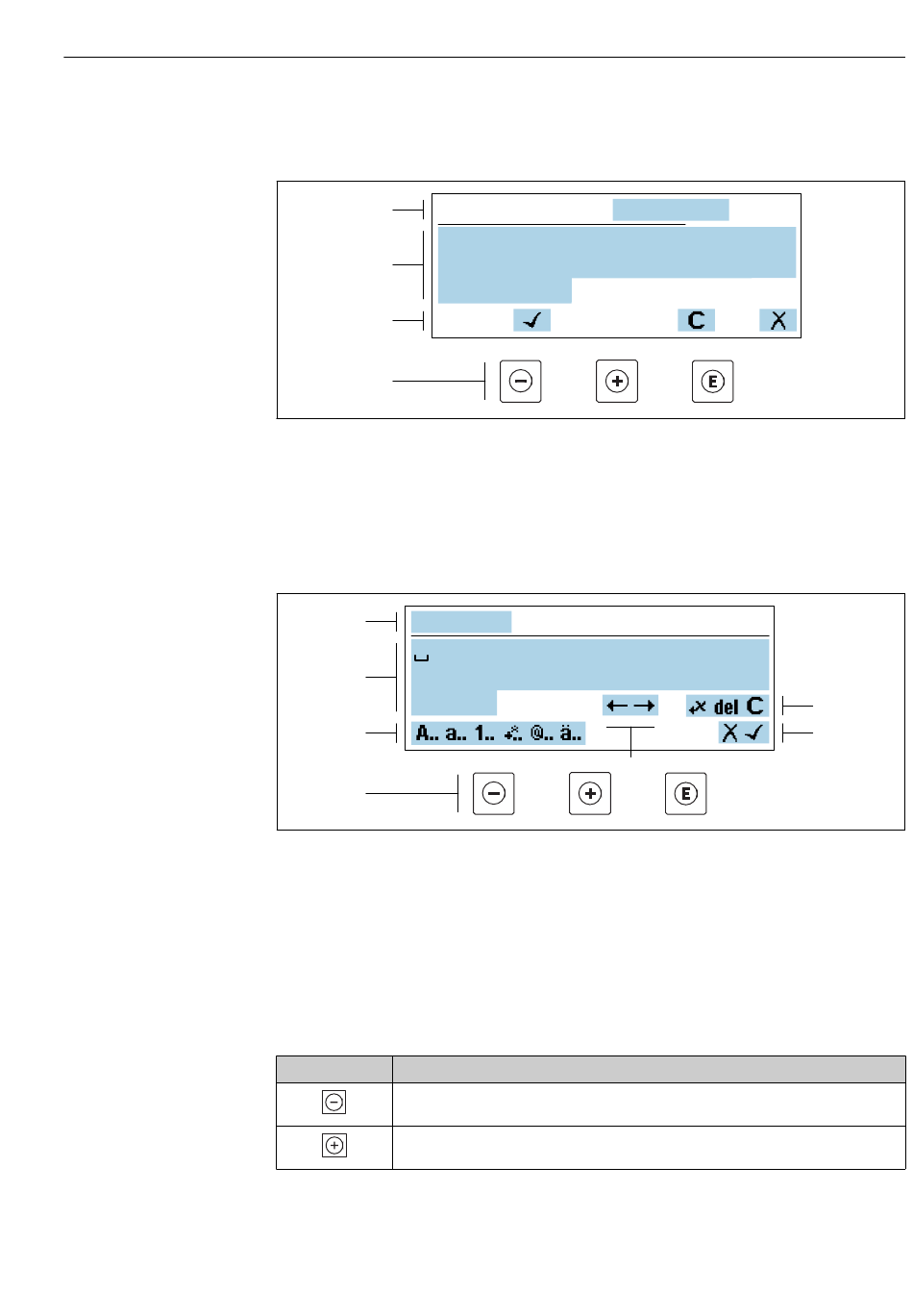

Editing view

Numeric editor
1
0
5
2
+
3
4
 17 For entering values in parameters (e.g. limit values)
1 Entry display area
2 Input screen
3 Confirm, delete or reject entry
4 Operating elements
Text editor
Xxxxxxx
1
A B C D E F G H I J K
L M N O P Q R S T U V W
2
X Y
3
4
 18 For entering text in parameters (e.g. tag name)
1 Entry display area
2 Current input screen
3 Change input screen
4 Operating elements
5 Move entry position
6 Delete entry
7 Reject or confirm entry
Using the operating elements in the editing view
Operating key(s) Meaning
Minus key
Move the entry position to the left.
Plus key
Move the entry position to the right.
+0.000 Xx
1 2
6 7
–
Z
5
Operation options
3 4
8 9
6
7
