Endress+Hauser Proline Prosonic Flow I 400 Operating Instructions Manual page 31

Proline Prosonic Flow I 400 Modbus RS485
Endress+Hauser

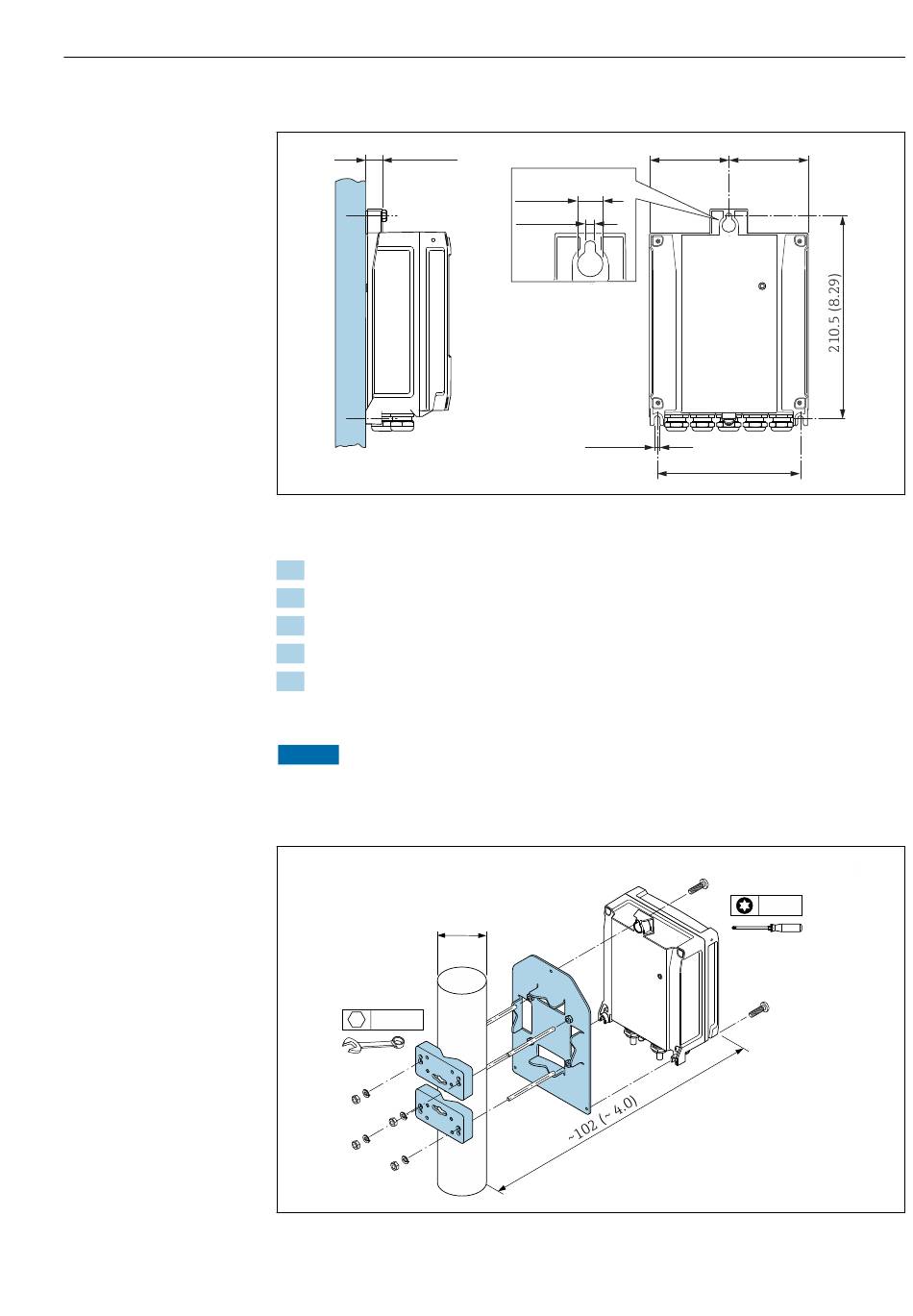

Wall mounting
17 (0.67)
 10 Unit mm (in)
1. Drill the holes.
2. Insert wall plugs into the drilled holes.
3. Lightly screw in the securing screws.
4. Fit the transmitter housing over the securing screws and hook into place.
5. Tighten the securing screws.
Post mounting
NOTICE
Excessive tightening torque applied to the fixing screws!
Risk of damaging the plastic transmitter.
‣
Tighten the fixing screws as per the tightening torque: 2.5 Nm (1.8 lbf ft)
ø
20...70
ø
( 0.79...2.75)
4 x
SW 10
 11 Unit mm (in)
=
14 (0.55)
5.8 (0.23)
5.8 (0.23)
Mounting procedure
=
149 (5.85)
3 x
TX 25
A0020523
A0029051
31
