Mounting procedure
30

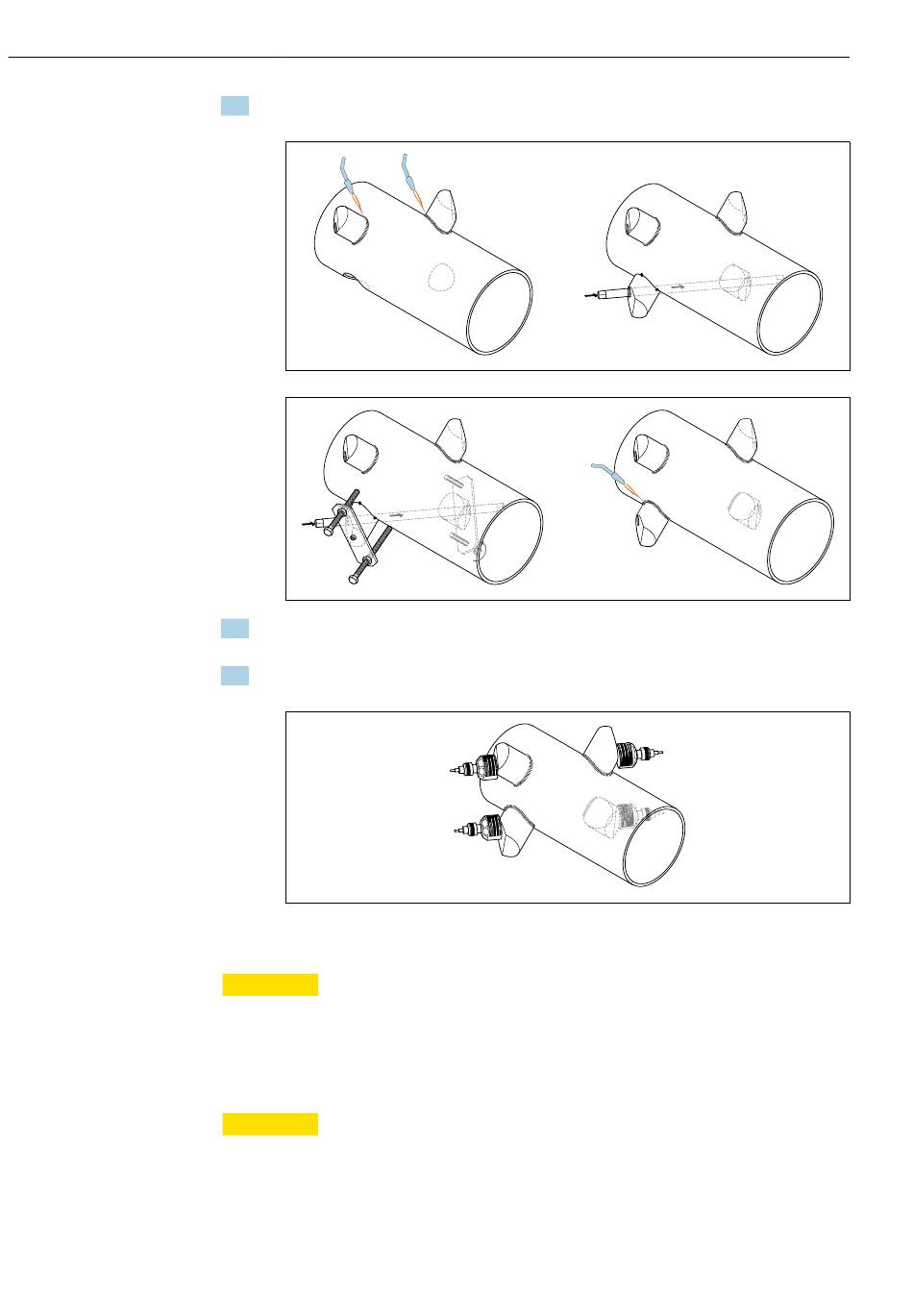

14. Insert second pair of sensor holders into the two remaining drill holes as per step 11,
and then weld in place.

15. Manually screw the sensors into the sensor holders. If using a tool, tighten with max.
30 Nm.
16. Insert the sensor cable plugs into the openings provided and manually tighten the
plugs as far as they will go.

6.2.4

Mounting the transmitter

CAUTION
L
Ambient temperature too high!
Danger of electronics overheating and housing deformation.
‣
Do not exceed the permitted maximum ambient temperature. →  23
‣
If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in
warm climatic regions.
CAUTION
L
Excessive force can damage the housing!
‣
Avoid excessive mechanical stress.
The transmitter of the remote version can be mounted in the following ways:
• Wall mounting
• Pipe mounting
Proline Prosonic Flow I 400 Modbus RS485
