Operation options
46
Flow velocity
Signal to noise ratio
Signal strength
The number and display format of the measured variables can be configured via the
Format display parameter (→  100).
Totalizer

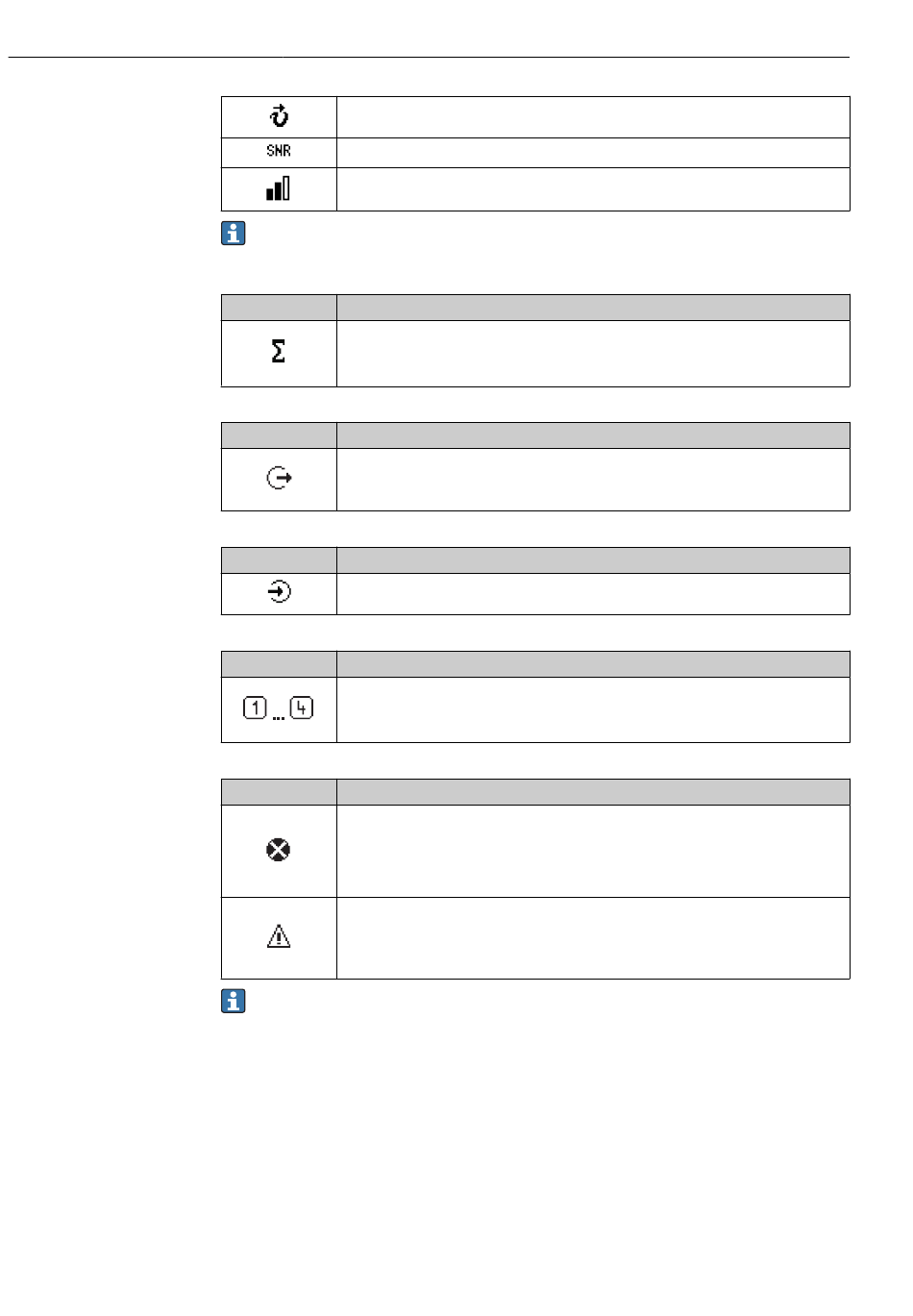

Symbol Meaning
Totalizer

The measurement channel number indicates which of the three totalizers is
displayed.
Output
Symbol Meaning
Output

The measurement channel number indicates which of the outputs is displayed.
Input
Symbol Meaning
Status input
Measurement channel numbers
Symbol Meaning
Measurement channel 1 to 4

The measurement channel number is displayed only if more than one channel is
present for the same measured variable type (e.g. totalizer 1 to 3).
Diagnostic behavior
Symbol Meaning
Alarm
• Measurement is interrupted.
• Signal outputs and totalizers assume the defined alarm condition.
• A diagnostic message is generated.
• The background lighting changes to red.
Warning
• Measurement is resumed.
• The signal outputs and totalizers are not affected.
• A diagnostic message is generated.
The diagnostic behavior pertains to a diagnostic event that is relevant to the displayed
measured variable.
