Installing Filters; Installing L Filter Into A Cabinet, 400 A, 1000 A; Installing L Filter Into A Cabinet, 1640 A - Danfoss iC7 Series Design Manual

Design Guide | iC7 Series Liquid-cooled System Modules
1
Mounting holes
3.
Attach the system module to the mounting brackets of the cabinet.
The mounting brackets are not included in the delivery.

Installing Filters

5.3.5

Installing L Filter into a Cabinet, 400 A, 1000 A

5.3.5.1
1.
Install the filter into the cabinet in a vertical position.
2.
Align the filter so that the pins of the filter fit into the square holes at the back wall of the cabinet.
1

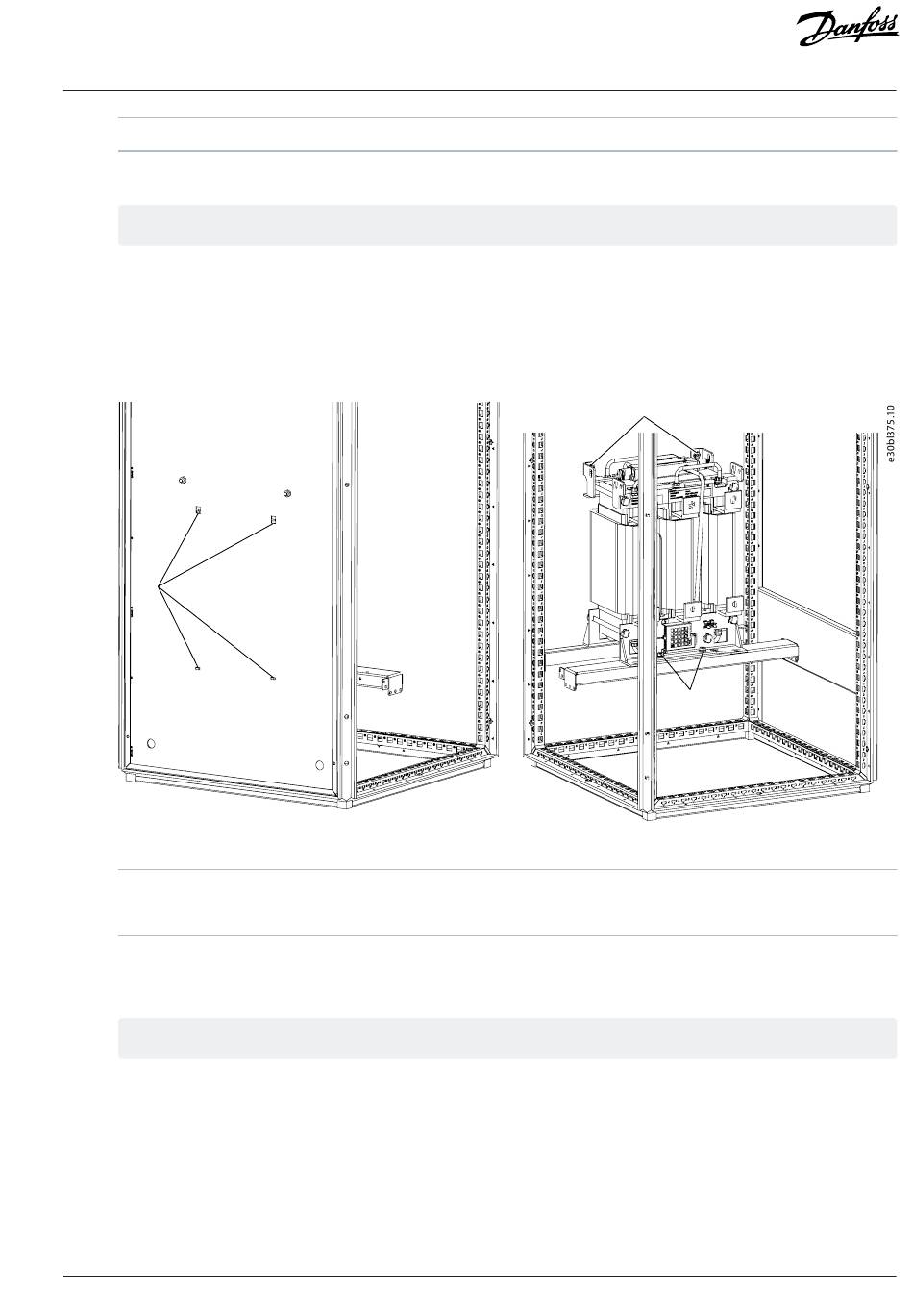

Figure 20: Installing the L Filter into a Cabinet (400 A, 1000 A)
1
Square mounting holes
3
The mounting holes at the bottom
3.
Use the mounting holes to attach the filter.
a.
Attach the filter from all the corners: top front, top back, bottom front, and bottom back.
The mounting brackets are not included in the delivery.

Installing L Filter into a Cabinet, 1640 A

5.3.5.2
1.
Install the filter into the cabinet in a vertical position.
2.
Use the mounting holes to attach the filter.
a.
Attach the filter from all the corners: top front, top back, bottom front, and bottom back.
Danfoss Drives Oy © 2024.03
2
View from the bottom
2
2
The mounting holes at the top
AJ475942178716en-000101 / 172K2848A |
