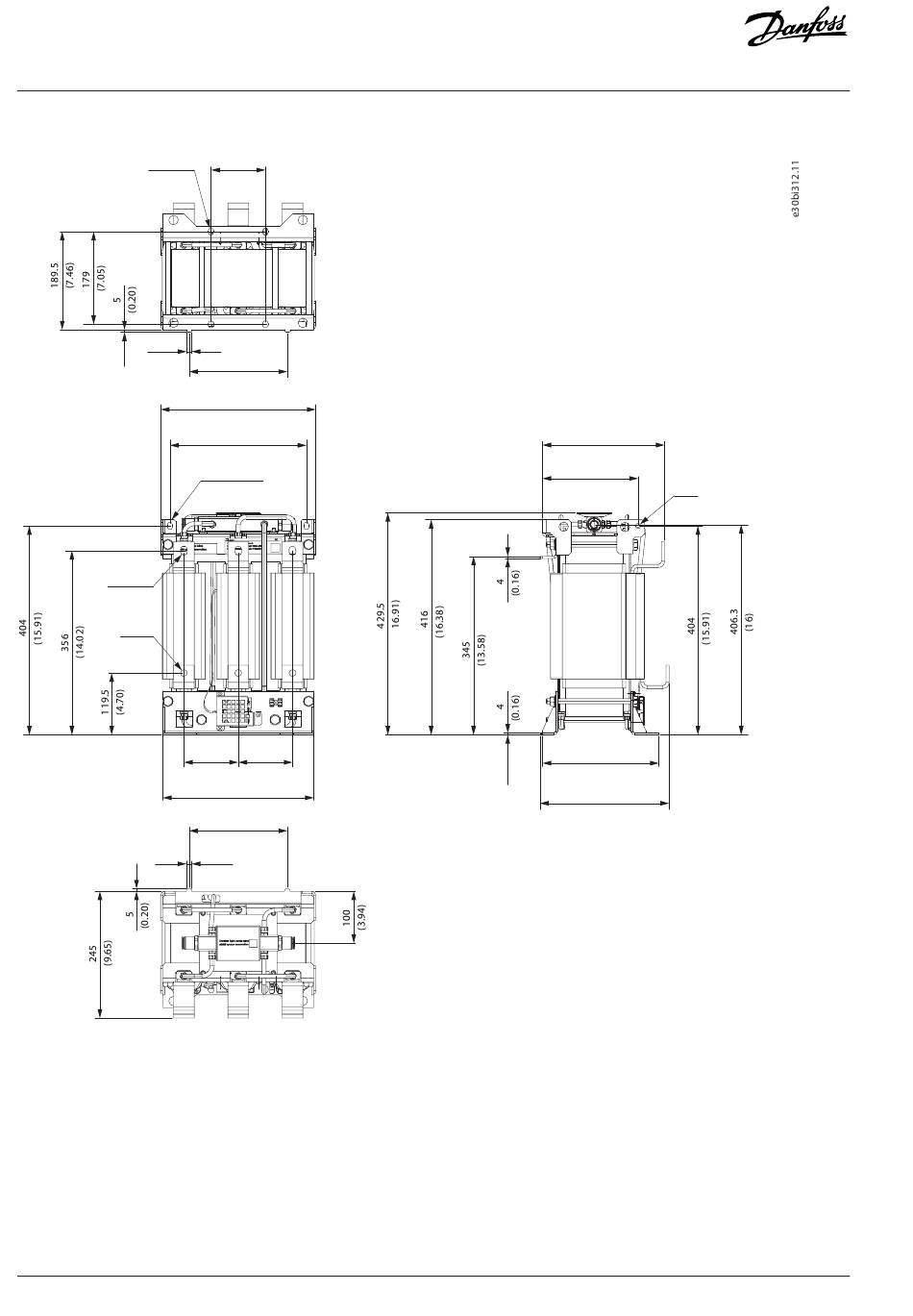

Dimensions of the L Filter, 1000 A
10.2.12
Ø11 x 14
(0.43)
10
(0.39)
Ø13 x 18
(0.51)
Ø13
(0.51)
Figure 138: Dimensions of the L Filter, 1000 A
138
| Danfoss Drives Oy © 2024.03
105
(4.13)
190
(7.48)
300
(11.81)
264
(10.39)
Ø9.5 x 14.5
(0.37)
105 105
(4.13) (4.13)
292
(11.50)
190
(7.48)
10
(0.39)
236
(9.29)
185
(7.28)
Ø10
(0.39)
225
(8.86)
249.9
(9.84)
