Lifting the Product

4.9

Lifting the System Modules

4.9.1
1.
Attach the lifting device in the hole on the top of the system module.
2.
If necessary, lift the system module into a vertical position.

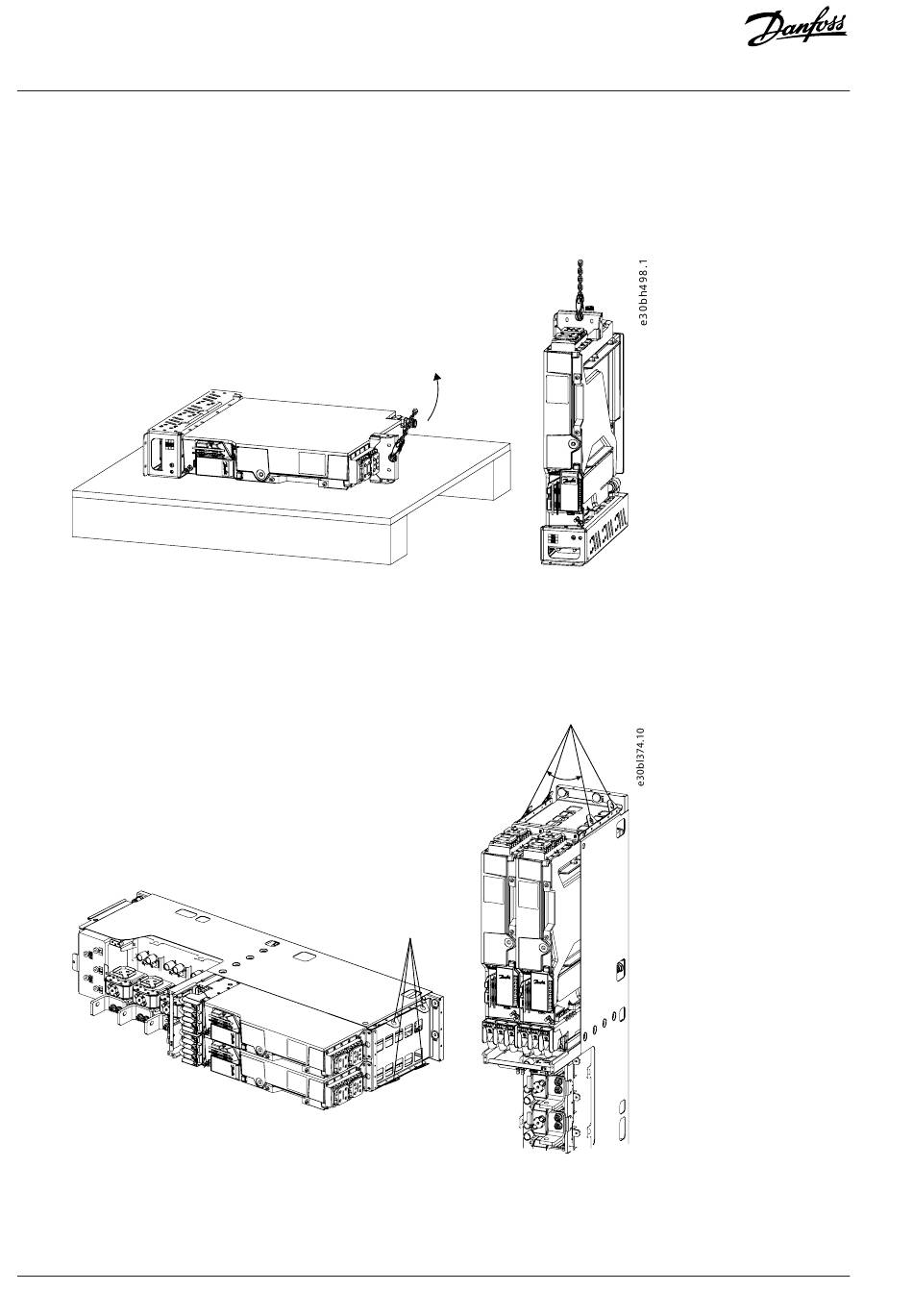

Figure 9: Lifting the System Module
3.
Lift the system module to the required location.

Lifting the System Modules with Integration Unit

4.9.2
1.
Put the lifting hooks in 4 holes at the top of the system module.
Figure 10: Lifting the System Module with Integration Unit
2.
If necessary, lift the system module into a vertical position.
