Design Guide | iC7 Series Liquid-cooled System Modules
1
1
1

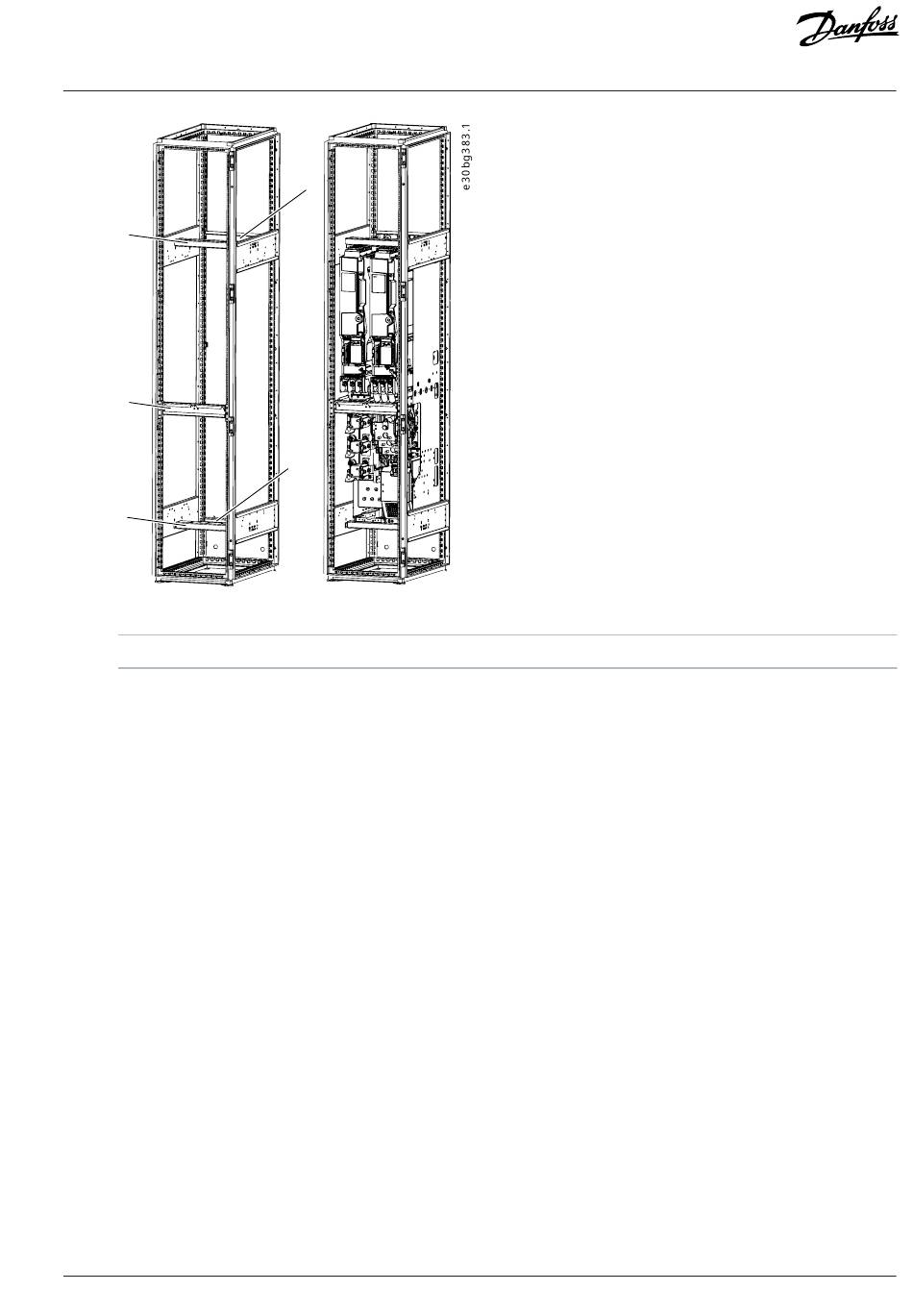

Figure 17: The Mounting Brackets and the Installation of System Modules with the Integration Unit into the Cabinet
1
Mounting brackets

Installing System Modules with Integration Units into a Cabinet Horizontally

5.3.4.2
1.
Install the system module into the cabinet in a horizontal position on its left side.
2.
Use mounting holes to attach the system module into the cabinet.
a.
For aluminum parts, use M8 grade 8.8 screws with a thread depth of 6–14 mm (0.24–0.55in), and a tightening torque of 6–
8 Nm (53–71 in-lb).
b.
For sheet metal parts, use M5 (DIN 7500) screws with a maximum thread depth of 20 mm (0.78 in), and a tightening torque
of 3–4 Nm (27–35 in-lb).
